500V 750V PVC Sheathed Flexible Mineral Insulated Copper Cable RVVP KVVP2
Price:
$0.76-2.45
MOQ:
Any Trail Order ls Welcomed
Delivery Time:
3-7 Working Days
Brand:
CR
Product Description
Control & Sinal Series Cables300/500V 300/50V 450/750V Copper Polyvinyl Chloride Insulated and Polyvinyl Chloride Sheathed Flexible Cable (RVV/RVVP/KVV/KVV22/KVVP2/KVVP2-22)
Application
Wiring environment apply to indoors job, in trenches, in ducts and in ground, etc. able to withstand mechanical force on heavy level.
Standard
China: GB/T 9330-2020
Other standards such as IEC, BS, DIN and ICEA upon request.

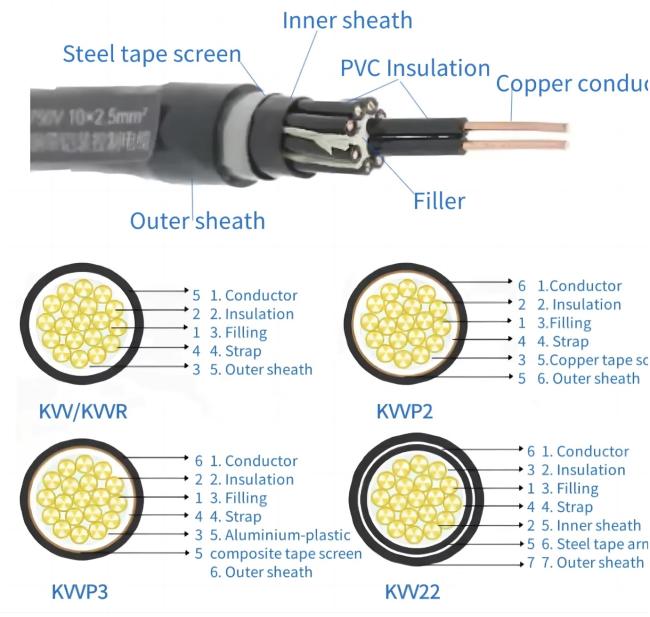

Brief construction
1) Conductor: Copper
2) Insulation: PVC
3) Armour: Steel Tape
4) Sheath: PVC
5)Other special characteristics: Design and manufacture according to the requirements of customers.
2) Insulation: PVC
3) Armour: Steel Tape
4) Sheath: PVC
5)Other special characteristics: Design and manufacture according to the requirements of customers.
Service performance
1) Rated voltage: 450/750V
2) Long-term working temperature: not be higher than 70°C
3) When laying the cable, the ambient temperature should not lower than 0°C
4) Minimum bending radius: Bending radius≥4D as cable overall diameter≤25mm;
Bending radius≥6D as cable overall diameter>25mm.
Customization options
Customized logo (Min. order: 1,000 meters)
Customized packaging (Min. order: 1,000 meters)
