Grey Film 12864C-5 128*64 LCD Display Module 78X70MM SBN0064 18PIN Parallel Port LCD12864
Owen 12864C-5

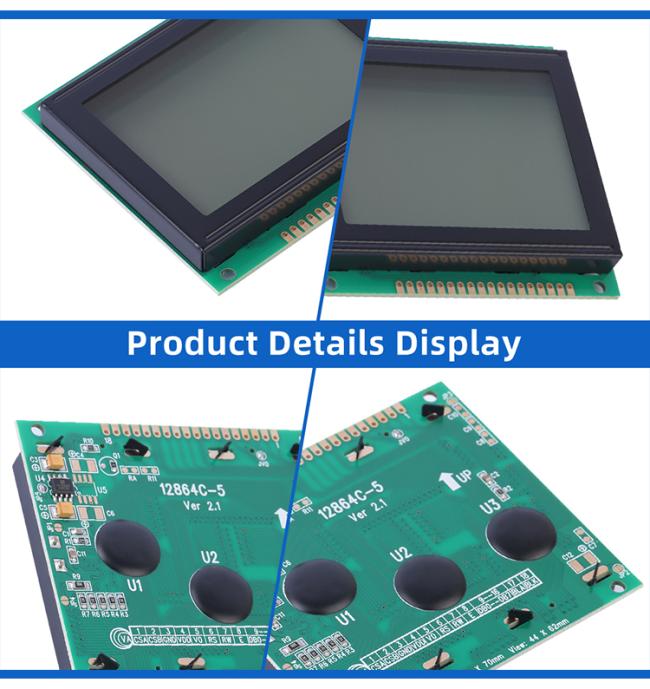

The Owen 12864C-5 is a versatile and reliable display solution suitable for a wide range of applications. This COB (Chip-on-Board) display offers a clear and crisp visual experience with its 128x64 resolution.
Designed for ease of integration and long-term performance, the Owen 12864C-5 is an excellent choice for industrial controls, instrumentation, and other embedded systems.
Key Benefits:
- High-contrast display for easy readability
- Compact design for space-constrained applications
- Customizable to meet specific project requirements
- Durable construction for reliable performance
Target Industries & Applications:
Suitable for industrial controls, medical devices, and consumer electronics.
Product Attributes

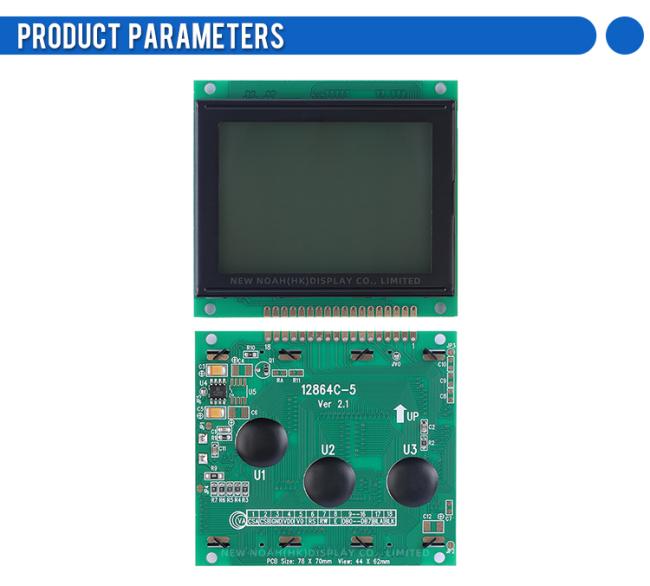

Technical Specifications
| Attribute | Value |
|---|---|
| Hign-concerned Chemical | None |
| Display Mode | 12864 |
| Resolution | 128*64 |
| is_customized | Yes |
| Model Number | Owen 12864C-5 |
| Type | COB |
| Origin | Mainland China |
| Outline Dimension | 78x70x12.5mm |
| View Size | 62.2x44mm |
| Controller | SBN0064 |
1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it
2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm
3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.
4. Generally, the VA screen is used for negative display
5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)
6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C
7. Connection method: metal pins, zebra stripes, FPC, etc
8. Working voltage: determined according to customer requirements
9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements
10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
