2.4GHz 300Mbps Outdoor Wireless Bridge with 8dBi Antenna for Long-Range Point-to-Point Connectivity
Price:
Negotiable
MOQ:
1
Delivery Time:
2-7 work days
Brand:
ONV
Product Description
2.4GHz 300Mbps Outdoor Wireless Bridge
The ONV-WQ300M2401 is an outdoor wireless bridge designed for video surveillance in applications including elevators, tower cranes, residential areas, schools, factories, orchards, farms, and scenic areas. It operates in the 2.4GHz band and can provide a maximum wireless data transmission rate of 300Mbps. It features a built-in 8dBi high-gain directional antenna, resulting in stronger signal penetration and an outdoor point-to-point bridging distance of up to 1000 meters. It can be directly mounted on walls or poles. It can operate in various outdoor environments, including wind, rain, and snow.
Technical Specifications
| Model | ONV-WQ300M2401 |
|---|---|
| Hardware Specification | |
| CPU | MT7628 |
| Storage | Flash: 2M, DDR: 8M |
| Wired Standard | IEEE 802.3, IEEE 802.3u |
| Ethernet Port | 2*10/100Mbps LAN ports |
| Antenna | Built-in directional antenna, 8 dBi |
| Button | 1*Reset Button |
| Power Supply Method | PoE 24V or DC 12V |
| Panel Indicator | 4*LED (POWER, LAN, SIG1, SIG2 (signal strength)) |
| Software Specification | |
| Operating Mode | Main Bridge (AP mode) Subnet Bridge (Client mode) Subnet Bridge (AP+Client mode) |
| Wireless Settings | Basic settings: wireless name, encryption method, wireless password, wireless mode Advanced settings: BG protection mode, Wi-Fi multimedia (WMM) disabled |
| Network Settings | LAN Settings, DHCP Server Settings |
| System Management | Firmware upgrade, language settings, system configuration, administrator settings, automatic system cleanup |
| Wireless Specification | |
| Wireless Standard | IEEE 802.11b/g/n |
| Wireless Rate | 300Mbps |
| Wireless Power | 20dBm |
| Wireless Receiver Sensitivity | -89dBm |
| Wireless Frequency Bands | 2.4GHz |
| Physical Specification | |
| Operation Temp/ Humidity | -10~55°C, 10%~90% RH non-condensing |
| Storage Temp/ Humidity | -40~80°C, 5%~95% RH non-condensing |
| Net Dimension | 153*78*50mm |
| Net /Gross Weight | 0.316kg/ 0.146kg |
| Installation | Pole-mounted, wall-mounted |
Key Features
- 2.4GHz: Wireless speed 300Mbps
- 8dBi high-gain directional antenna
- IP65 waterproof and dustproof protection
- Two power supply options available: Ethernet port supports PoE input 24V and DC port supports input 12V
Dimensions
Application Scenarios
Point-to-point connection

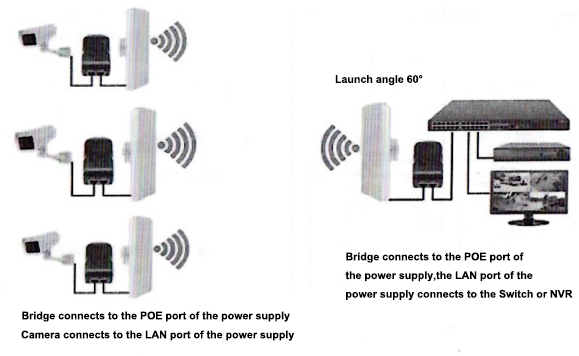

Point-to-multiple connection
