5-port Gigabit Industrial PoE Switch with IEEE 802.3af/at and 30W per Port
Price:
Negotiable
MOQ:
1
Delivery Time:
2-7 work days
Brand:
ONV
Product Description

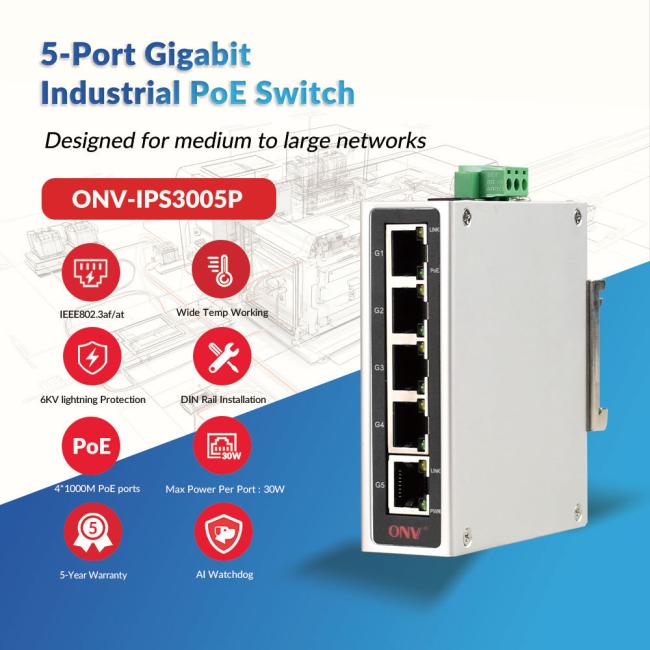

5-port Gigabit Industrial PoE Switch
The ONV-IPS3005P is a Gigabit industrial PoE switch independently developed by ONV. It features 5×10/100/1000M adaptive RJ45 ports, with ports 1-4 supporting IEEE 802.3af/at PoE standard and single-port PoE power up to 30W. As a PoE power supply device, it automatically detects and recognizes compliant power-receiving equipment, supplying power through network cables to PoE terminal devices such as wireless APs, IP cameras, and industrial sensors. Ideal for high-density PoE power supply network environments, it is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, sea transportation, metallurgy, green energy, and construction applications, forming a cost-effective, stable, and reliable communication network. Plug-and-play operation ensures easy use.
| Model | ONV-IPS3005P |
|---|---|
| Interface Characteristics | |
| Fixed Port |

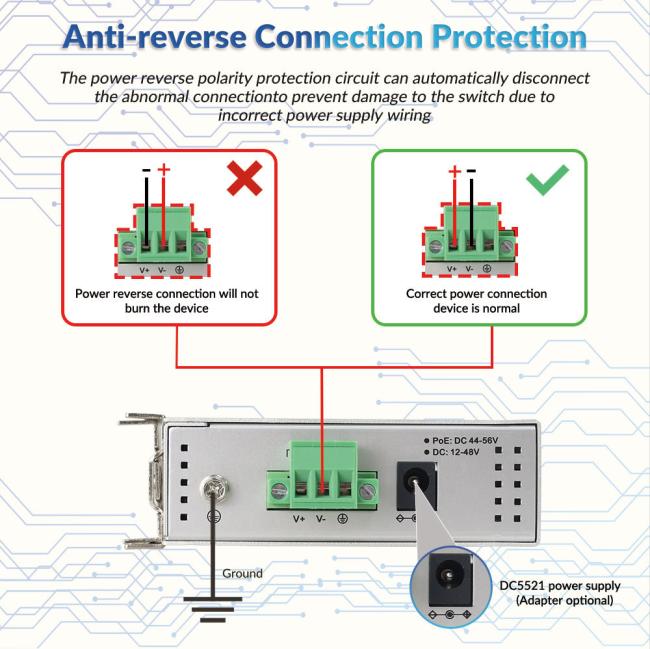

1×DC5521 power socket 1×10/100/1000Base-T uplink RJ45 port (Data) 4×10/100/1000Base-T PoE ports (Data/Power) 1 V+, V- (3P Phoenix terminal) DC power interface Dual power interfaces support reverse-connection protection. |
| Ethernet Port | Ports 1-5 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaptation |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
| Chip Parameter | |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
| Forwarding Mode | Store and forward (Full wire speed) |
| Switching Capacity | 12Gbps (non-blocking) |
| Forwarding Rate@64byte | 7.44Mpps |
| MAC | 2K |
| Buffer Memory | 2M |
| Jumbo Frame | 9216bytes |
| LED Indicator | Power: PWR (Green), Network: Link G1-G5 (Yellow), PoE: G1-G4 (Green) |
| PoE & Power Supply | |
| PoE Port | Port 1-4 |
| Power Supply Pin | 1/2(+) 3/6 (-) |
| Max Power Per Port | 30W, IEEE 802.3 af/at |
| Power Consumption | Standby<3W, Full load af<60W, at<120W |
| Operation Voltage | DC44-56V |
| Power Supply | No, optional 48V/60W and 48V/120W industrial power supply |
| Physical Parameter | |
| Operation Temp/Humidity | -40~+75°C, 5%~90% RH non-condensing |
| Storage Temp/Humidity | -40~+85°C, 5%~95% RH non-condensing |

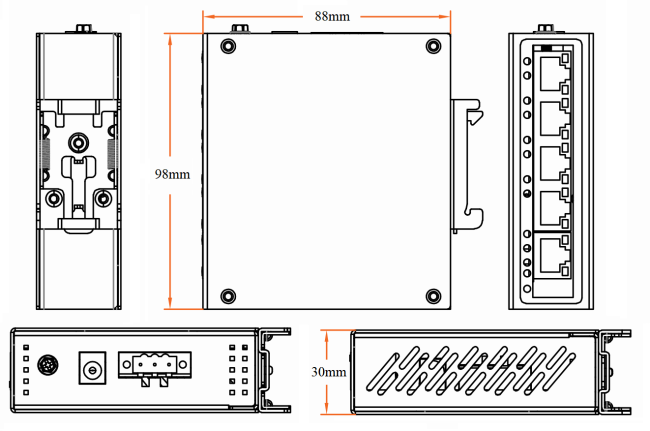

| Dimension | 98×88×30mm |
| Net/Gross Weight | 0.25kg/0.35kg |
| Installation | Desktop, 35mm DIN Rail |
| Certification & Warranty | |
| Lightning Protection | IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnetic field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV Protection level: IP30, Lightning protection: 6KV 8/20us IEC61000-4-4(EFT): Power cable: ±4 kV, data cable: ±2 kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150 kHz-80 MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/DM±2kV, data cable: ±4kV |
| Mechanical Properties | IEC 60068-2-6 (Anti vibration), IEC 60068-2-32 (Free fall), IEC 60068-2-27 (Anti shock) |
| Certification | CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS |
| Warranty | 5 years, lifelong maintenance |
- Support non-blocking wire-speed forwarding
- Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure

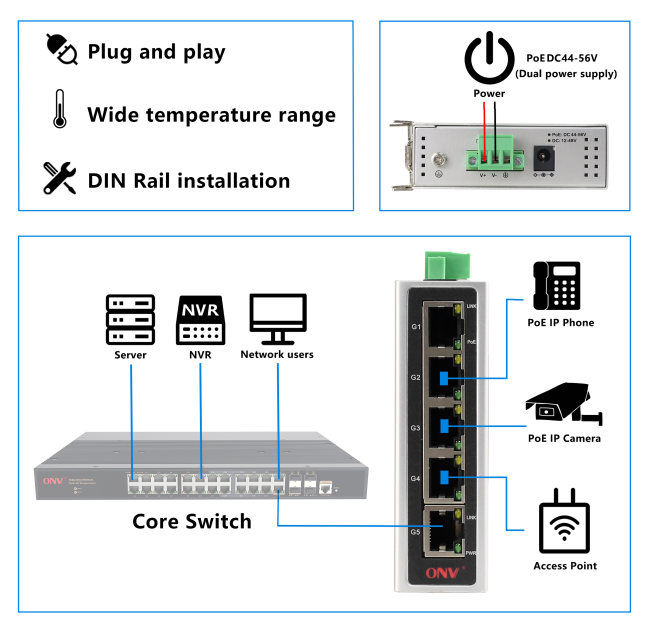

- Support Gigabit PoE port and uplink RJ45 port combination, enabling flexible networking to meet various scenario needs
Smart PoE Power Supply
- Complies with IEEE 802.3 af/at PoE standard, automatically identifies PoE devices for power supply, and does not damage non-PoE devices
- 4×10/100/1000Base-T RJ45 ports support PoE power supply to meet industrial field requirements
Stable and Reliable
- CE, FCC, RoHS certified
- User-friendly panel shows device status through LED indicators for PWR, Link, and PoE
- Low power consumption, aluminum alloy housing, and excellent heat dissipation ensure stable operation
| Model | Description | Recommended Power Supply |
|---|---|---|
| ONV-IPS3005P | Industrial PoE switch with 5×10/100/1000M RJ45 ports. Ports 1-4 support IEEE 802.3 af/at PoE standard. Supports dual DC power input and DIN rail mounting. | 60W/120W |
Note: The power supply is not included and needs to be purchased separately.
| Packing List | Qty | Unit |
|---|---|---|
| 5-port Gigabit industrial PoE switch | 1 | PC |
| User Guide | 1 | PC |
| Warranty Card and Certificate of Conformity | 1 | PC |
| Product | Model | Description | Unit |
|---|---|---|---|
| 65W Desktop power adapter | GWS-AP65-52 | Desktop 65W single-set output power adapter Input voltage: AC100V~240V 50-60Hz, 1.1A Output voltage: DC52V, 1.25A Operation temperature: -20℃ to +65℃ |
PC |
| 110W Desktop power adapter | GWS-AP110-52 | Desktop 110W single-set output power adapter Input voltage: AC100V~240V 50-60Hz, 2.0A Output voltage: DC52V, 2.15A Operation temperature: -20℃ to +65℃ |
PC |
| 60W DIN Rail industrial power supply | GWS-DP60-48 | DIN Rail 60W single-set output power supply Input voltage: AC100V~240V 50-60Hz, 1.6A Output voltage: DC48V, 1.25A Operation temperature: -40℃ to +70℃ |
PC |
| 120W DIN Rail industrial power supply | GWS-DP120-48 | DIN Rail 120W single-set output power supply Input voltage: AC100V~240V 50-60Hz, 2.3A Output voltage: DC48V, 2.5A Operation temperature: -40℃ to +70℃ |
PC |
