4*10/100M RJ45 Ports Industrial PoE Switch with IEEE 802.3af/at PoE Standard and DIN Rail Mountable
The ONV-IPS31004PF is a 10/100M industrial PoE fiber switch independently developed by ONV, featuring 4×10/100M adaptive RJ45 ports and 1×155M SC fiber port. Ports 1-4 support IEEE 802.3af/at PoE standard with single-port PoE power up to 30W. As a PoE power supply device, it automatically detects and recognizes compliant power-receiving equipment and supplies power through network cables to PoE terminal devices such as wireless APs, IP cameras, and industrial sensors. Ideal for high-density PoE power supply network environments, it's suitable for intelligent transportation, rail transit, power industry, mining, petroleum, sea transportation, metallurgy, green energy, and construction applications. Plug-and-play operation ensures easy deployment.
| Model | ONV-IPS31004PF |
|---|---|
| Fixed Port | 1×155M uplink SC fiber port (Data) 4×10/100Base-TX PoE ports (Data/Power) 2 set V+, V- redundant DC power ports (5P Phoenix terminal) |
| Ethernet Port | Ports 1-4 support 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5e or later UTP (≤100 meters) |
| Optical Fiber Port | Optical module is single-mode dual fiber 20km, SC port (optional single-mode single fiber and multi-mode dual fiber optical module) |
| Optical Cable/Distance | Multi-mode: 850nm/0-550m, 1310nm/0-2km, Single-mode: 1310nm/0-40km, 1550nm/0-120km |
| Network Protocol | IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 100Base-FX, IEEE 802.3x |
| Forwarding Mode | Store and forward (Full wire speed) |
| Switching Capacity | 1.0Gbps (non-blocking) |
| Forwarding Rate@64byte | 0.74Mpps |
| MAC | 1K |
| Buffer Memory | 512K |
| Jumbo Frame | 1536bytes |
| LED Indicator | Power: PWR (Green), Network: Link (Yellow), PoE: PoE (Green), Fiber port: 5 (Green) |
| PoE Port | Port 1-4 |
| Power Supply Pin | 1/2(+) 3/6 (-) |
| Max Power Per Port | 30W, IEEE 802.3 af/at |
| Power Consumption | Standby<3W, full load af<60W, at<120W |
| Operation Voltage | DC44-57V, 5P industrial Phoenix terminal supports anti-reverse protection |
| Power Supply | No, optional 48V/60W and 48V/120W industrial power supply |
| Operation Temp/Humidity | -40°C~+80°C, 5%~90% RH non-condensing |
| Storage Temp/Humidity | -40°C~+85°C, 5%~95% RH non-condensing |

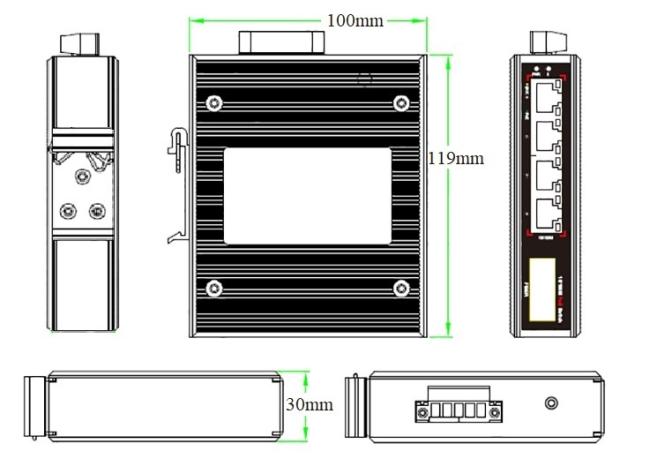

| Dimension | 119×100×30mm |
| Net/Gross Weight | 0.4kg/0.5kg |
| Installation | Desktop, 35mm DIN Rail |
| Lightning Protection |
IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnetic field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV Protection level: IP40, Lightning protection: 6KV 8/20us IEC61000-4-4(EFT): Power cable: ±4 kV, data cable: ±2 kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150 kHz- 80 MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV |
| Mechanical Properties | IEC 60068-2-6 (anti vibration), IEC 60068-2-32 (free fall), IEC 60068-2-27 (anti shock) |
| Certification | CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS |
| Warranty | 5 years, lifelong maintenance |
- 10/100M Access: Supports non-blocking wire-speed forwarding, full-duplex based on IEEE 802.3x and half-duplex based on Backpressure. The combination of 100M RJ45 port and 155M SC fiber port allows flexible network building for various scenarios.

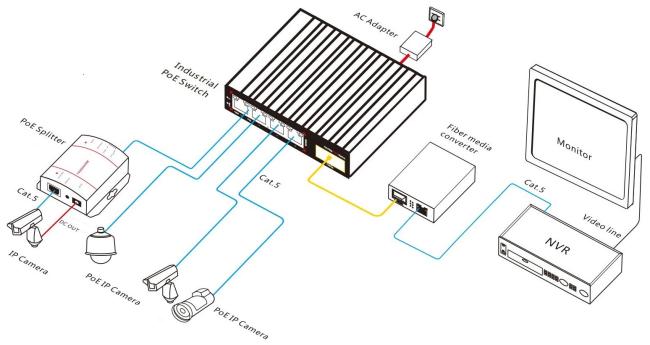

- Smart PoE Power Supply: Complies with IEEE 802.3 af/at PoE standard, automatically identifies PoE devices for power supply without damaging non-PoE devices. 4×10/100Base-TX RJ45 ports support PoE power supply for industrial field applications.
- Stable and Reliable: CE, FCC, RoHS certified. User-friendly panel with LED indicators for PWR, Link, and PoE. Low power consumption, aluminum alloy housing, and excellent heat dissipation ensure stable operation.
| Model | Description | Recommended Power Supply |
|---|---|---|
| ONV-IPS31004PF | Industrial PoE switch with 4×10/100M RJ45 ports and 1×155M uplink SC fiber port (1310nm/20km single-mode dual-fiber optical module). Ports 1-4 support the IEEE 802.3 af/at PoE standard. Supports dual DC redundant power input and DIN rail mounting. | 60W/120W |
| ONV-IPS31004PF-M | Industrial PoE switch with 4×10/100M RJ45 ports and 1×155M uplink SC fiber port (850nm/0.5km or 1310nm/2km multi-mode dual-fiber optical module). Ports 1-4 support the IEEE 802.3 af/at PoE standard. Supports dual DC redundant power input and DIN rail mounting. | 60W/120W |
| ONV-IPS31004PF-A | Industrial PoE switch with 4×10/100M RJ45 ports and 1×155M uplink SC fiber port (1310nm/20km single-mode single-fiber optical module). Ports 1-4 support the IEEE 802.3 af/at PoE standard. Supports dual DC redundant power input and DIN rail mounting. | 60W/120W |
| ONV-IPS31004PF-B | Industrial PoE switch with 4×10/100M RJ45 ports and 1×155M uplink SC fiber port (1550nm/20km single-mode single-fiber optical module). Ports 1-4 support the IEEE 802.3 af/at PoE standard. Supports dual DC redundant power input and DIN rail mounting. | 60W/120W |
Note: The power supply is not included and needs to be purchased separately.
| Content | Qty | Unit |
|---|---|---|
| 5-port 10/100M industrial PoE switch | 1 | PC |
| User Guide | 1 | PC |
| Warranty Card and Certificate of Conformity | 1 | PC |
| Product | Model | Description | Unit |
|---|---|---|---|
| 60W DIN Rail industrial power supply | GWS-DP60-48 | DIN Rail 60W single-set output power supply. Input voltage: AC100V~240V 50-60Hz, 1.6A. Output voltage: DC48V, 1.25A. Operation temperature: -40℃ to +70℃ | PC |
| 120W DIN Rail industrial power supply | GWS-DP120-48 | DIN Rail 120W single-set output power supply. Input voltage: AC100V~240V 50-60Hz, 2.3A. Output voltage: DC48V, 2.5A. Operation temperature: -40℃ to +70℃ | PC |
| Model | Description |
|---|---|
| ONV-IPS33032PF | Industrial PoE fiber switch with 2×10/100/1000M RJ45 ports and 1×1000M uplink SFP fiber port. Ports 1-2 support IEEE 802.3 af/at PoE standard. Supports dual DC redundant power input and DIN rail mounting. |
| ONV-IPS33042PF | Industrial PoE fiber switch with 2×10/100/1000M RJ45 ports and 2×1000M uplink SFP fiber ports. Ports 1-2 support IEEE 802.3 af/at PoE standard. Supports dual DC redundant power input and DIN rail mounting. |
| ONV-IPS33064PF | Industrial PoE fiber switch with 4×10/100/1000M RJ45 ports and 2×1000M uplink SFP fiber ports. Ports 1-4 support IEEE 802.3 af/at PoE standard. Supports dual DC redundant power input and DIN rail mounting. |
| ONV-IPS33128PF | Industrial PoE fiber switch with 10×10/100/1000M RJ45 ports and 2×1000M uplink SFP fiber ports. Ports 1-8 support IEEE 802.3 af/at PoE standard. Supports dual DC redundant power input and DIN rail mounting. |
