Plastic Half-Threaded Magnetic Reed Sensor Proximity Switch 250VAC 1.3A

Price Negotiable
Price: $5-12/ piece
MOQ: 1 piece
Delivery Time: Negotiable
Brand: Boguan
Product Description

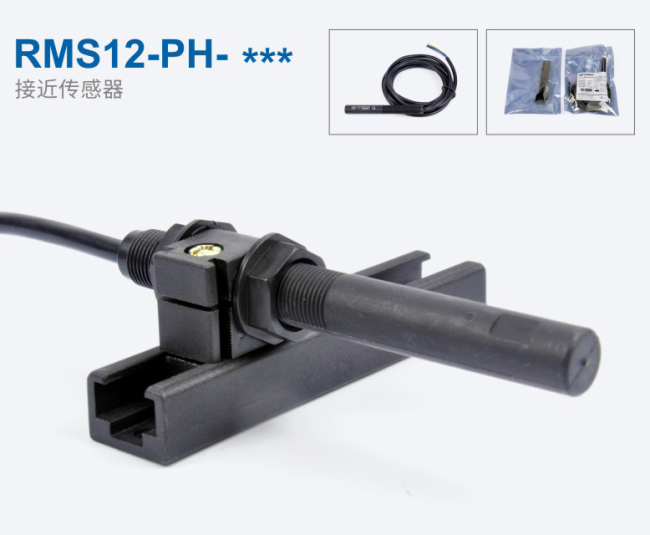

RMS12-PH-  Plastic Half-Theaded Magnetic Reed Sensor Proximity Sensors  Level Position Switches Smoke Pole Magnetic Switches

Elevator Load Weighing Device, Overload Switch, Weighing Sensor



The elevator load weighing device is a core safety control component, installed at the car bottom, rope head assembly or traction machine. It accurately detects the car load and feeds back full‑load/overload signals to the elevator mainboard to trigger overload alarm, door‑closing prohibition and operation interlock, preventing over‑load operation and meeting annual inspection standards.



Our product compatible with most domestic elevators and mainstream brands including Mitsubishi, Otis, Hitachi and Kone, suitable for passenger elevators, freight elevators, villa elevators and medical elevators. Equipped with high‑precision sensors, it features stable signal transmission, quick response, strong anti‑interference and anti‑false‑trigger performance. The sturdy metal housing is waterproof, dust‑proof, shock‑resistant and temperature‑resistant for harsh shaft environments.



It supports full‑load early warning, overload protection and self‑diagnosis, with weight self‑learning function without test weights. Easy to install and wire for direct replacement. It effectively protects traction machines, steel ropes and car structure, extending elevator service life with strong universality and convenient maintenance.



Welcome to visit, if you didn't find the goods you want can send processing drawing to us with production.



1, Many specifications

2, good quality

3, reasonable prices

4, thoughtful service

Main products: complete elevators, various specifications of rope fastening, oil buffer, guide shoe, shoe lining, overspeed governor, safety accessories and all elevator parts.



PS:1.This tariff preference is based on the US CBP Announcement No. * * *, and the final tax rate is subject to actual customs clearance.

2. If the tariff will be adjusted after the window period, unfinished orders can negotiate price adjustments or free cancellation.



 Product Function
1.Contactless induction operation mode,without mechanical movement,directly installed in the original overload switch position without changing the elevator structure.
2.Adopting high-strength induction magnets to maximize the system’s anti-interference ability.
3.Electrical performance meets the “IEC” standard.
4.Accurate positioning, small size, and convenient installation and debugging



Model
RMS12-PH-A80
RMS12-PH-A10
RMS12-PH-C60
RMS12-PH-B80
 Contact variants
NO
NO
NC
BI
 Switching voltage
Max.250VAC
Max.150VAC
Max.230VAC
Max.150VAC
Switching current
Max.1.3A
Max.0.5A
Max.1A
Max.0.5A
 Switching capacity
Max.80W/VA
Max.10W/VA
Max.60W/VA
Max.10W/VA
 Dielectric strength
800V
200V
400V
200V
 Ambient temperature
-20~+60℃
-20~+60℃
-20~+60℃
-20~+60℃
 Cable length
2m(standard)
2m(standard)
2m(standard)
2m(standard)
