Knotted Flexible Stainless Steel Wire Rope Mesh 304 / 316 For Balcony Safety Net

Price Negotiable
Price: Negotiable
MOQ: 10
Delivery Time: 5-8 work days
Brand: chuangyi
Product Description

304 / 316 Stainless Steel Knotted Cable Mesh for Balcony Safety Net



Product Introduction



Stainless Steel Rope Mesh

Stainless steel rope mesh (also known as SS wire rope mesh) is made of high-quality stainless steel wire rope, possessing excellent corrosion resistance and UV resistance, and a long service life even in harsh environments. Its greatest advantage is its exceptional elasticity and flexibility. Our rope meshes are available in knotted, looped, woven square, or grid patterns with cross/cross clamps. These are all highly favored by modern architects.

Our rope meshes are primarily manufactured from high-strength stainless steel AISI 304, 304L, 316, or 316L. They are available in 7×7, 7×19, or 1×19 structures, with diameters ranging from 1 mm to 4 mm.





Product Features



1. Stainless steel offers the highest corrosion resistance.

2. Elegant yet robust.

3.  Lightweight and sturdy, with flawless transparency.

4. UV resistant and weather resistant.

5. Flexible and resilient.

6. Anti-climb design, stable and slip-resistant.

7.  Minimal visual interference, does not affect browsing experience.

8. Recyclable.

9. Excellent cost performance.

10. Easy installation and low maintenance cost.

11. Braided opening to meet any precise specifications









Code Rope construction              Rope diameter

                 Aperture

Min breaking load

Inch

Mm

Inch

Mm

(Ibs)

CYSW-01

7×7

1/8

3.2

2×2

51×51

1600

CYSW-02

7×7

3/32

2.4

4×4

102×102

920

CYSW-03

7×7

3/32

2.4

3×3

76×76

920

CYSW-04

7×7

3/32

2.4

2×2

51×51

920

CYSW-05

7×7

5/64

2.0

3×3

76×76

676

CYSW-06

7×7

5/64

2.0

2×2

51×51

676

CYSW-07

7×7

5/64

2.0

1.5×1.5

38×38

676

CYSW-08

7×7

1/16

1.6

3×3

76×76

504

CYSW-09

7×7

1/16

1.6

2×2

51×51

504

CYSW-10

7×7

1/16

1.6

1.5×1.5

38×38

504

CYSW-11

7×7

1/16

1.6

1×1

25×25

504

CYSW-12

7×7

3/64

1.2

2×2

51×51

606

CYSW-13

7×7

3/64

1.2

1.5×1.5

38×38

306

CYSW-14

7×7

3/64

1.2

1×1

25×25

306

CYSW-15

7×7

3/64

1.2

4/5×4/5

20×20

306

CYSW-16

7×19

1/8

3.2

4×4

102×102

1600

CYSW-17

7×19

1/8

3.2

3×3

76×76

1600

CYSW-18

7×19

1/8

3.2

2×2

51×51

1600

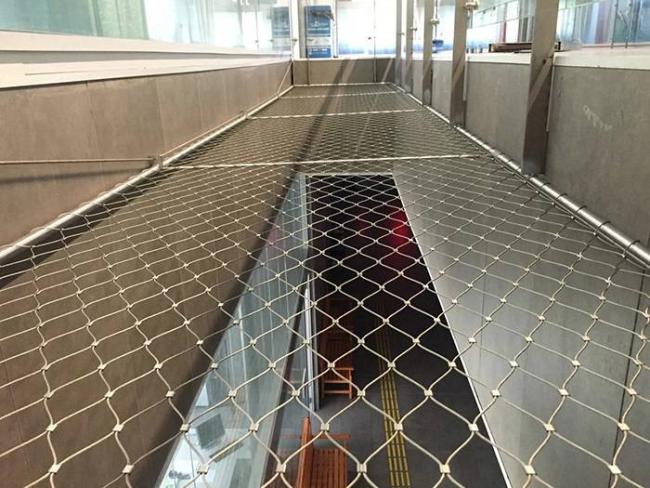

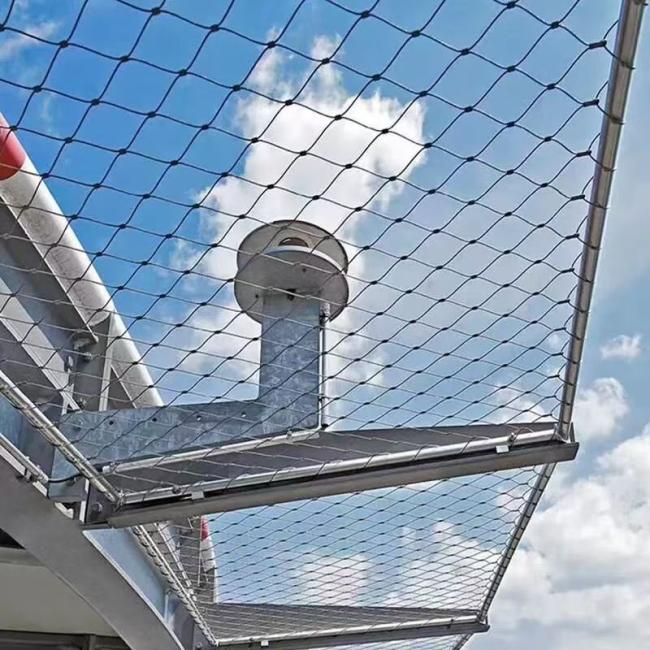

Applications of wire rope mesh



It is mainly used in zoo enclosures, animal enclosure construction, animal cages, birdcages, marine parks, garden protection construction, parks, forest decoration and beautification, wildlife parks, bridges, stadium fences, supermarkets, airports, exhibition halls, performing arts performances, operas, film and television props, municipal construction, amusement park use, metal curtain walls, interior and exterior decoration, protective engineering, etc., and is an ideal choice for modern decoration and protection.
