Custom Cut Expanded Metal Sheet Precision Bent Mesh for Project Fabrication
Custom Cut Expanded Metal Sheet, Precision Bent Mesh for Project Fabrication
Product Description
Anping Chuangyi Hardware Products Co., Ltd., based in Anping – the global wire mesh hub – specializes in custom cut expanded metal sheet and precision bent mesh for project fabrication. Unlike standard sheet suppliers, we process according to customer drawings or templates – including irregular cutting, bending, edge welding, and drilling – delivering ready-to-install finished parts. Our equipment includes CNC plasma cutters and large-tonnage press brakes (up to 6m), with cutting accuracy ±1mm and bending angle ±0.5°. Materials include carbon steel, SS304/316, aluminum, and galvanized sheet. No MOQ, fast prototyping (3-5 working days). Ideal for equipment guards, architectural trim, and curved walkway sections. Factory direct, drawing confidential, flexible lead time.

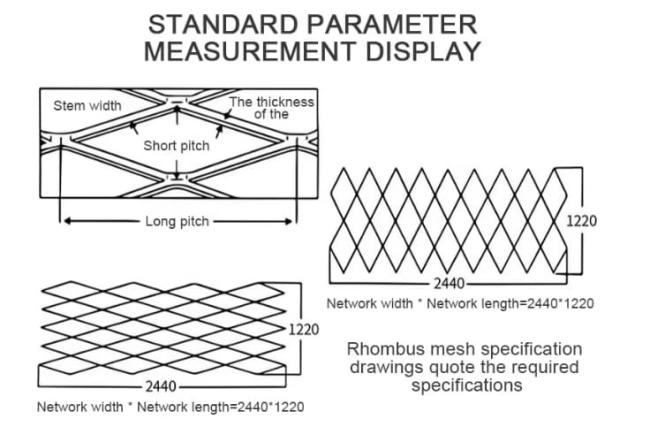

Standard Specification Table
|
Thickness (mm) |
SWD Short Way (mm) |
LWD Long Way (mm) |
Strand Width (mm) |
Sheet Width (m) |
Sheet Length (m) |
Weight (kg/m²) |
|
0.5 |
2.5 |
4.5 |
0.5 |
0.5 |
1 |
1.8 |
|
0.5 |
10 |
25 |
0.5 |
0.6 |
2 |
0.73 |
|
0.6 |
10 |
25 |
1 |
0.6 |
2 |
1 |
|
0.8 |
10 |
25 |
1 |
0.6 |
2 |
1.25 |
|
1 |
10 |
25 |
1.1 |
0.6 |
2 |
1.77 |
|
1 |
15 |
40 |
1.5 |
2 |
4 |
1.85 |
|
1.2 |
10 |
25 |
1.1 |
2 |
4 |
2.21 |
|
1.2 |
15 |
40 |
1.5 |
2 |
4 |
2.3 |
|
1.5 |
15 |
40 |
1.5 |
1.8 |
4 |
2.77 |
|
1.5 |
23 |
60 |
2.6 |
2 |
3.6 |
2.77 |
|
2 |
18 |
50 |
2.1 |
2 |
4 |
3.69 |
|
2 |
22 |
60 |
2.6 |
2 |
4 |
3.69 |
|
3 |
40 |
80 |
3.8 |
2 |
4 |
5.0 |
|
4 |
50 |
100 |
4 |
2 |
2 |
11.15 |
|
4.5 |
50 |
100 |
5 |
2 |
2.7 |
11.15 |
|
5 |
50 |
100 |
5 |
1.4 |
2.6 |
12.39 |
|
6 |
50 |
100 |
6 |
2 |
2.5 |
17.35 |
|
8 |
50 |
100 |
8 |
2 |
2.1 |
28.26 |
Key Attributes
|
Parameter |
Details |
|
Material |
Stainless Steel (304 / 316 / 316L), Carbon Steel, Aluminum |
|
Type |
Expanded Metal Mesh |
|
Thickness Range |
0.5 mm – 8 mm |
|
Hole Shape |
Diamond |
|
Surface Treatment |
Bright, Polished, Electro-polished, PVC Coated, Powder Coated |
|
Color |
Silver or Custom Colors |
|
Processing Service |
Expanding, Punching, Bending, Cutting, Slitting, Frame Welding |
|
Features |
Corrosion Resistant, Rust Proof, High Strength, Anti-slip, Large Open Area |
|
Packaging |
Waterproof Paper + Plastic Film + Wooden Pallet |
Product Features
1. Custom cut to any shape – circles, notches, angles, or complex contours.
2. Precision bending – ±0.5° accuracy, up to 6m length.
3. No minimum order quantity – one piece accepted for prototyping.
4. Fast sample turnaround – 3 to 5 working days for custom parts.
5. Multiple material support – carbon steel, stainless steel, aluminum, galvanized.
6. Ready-to-install – welding, drilling, and edge finishing included.
Why Choose Us?
1. Drawing confidentiality – non-disclosure agreement available.
2. Tight tolerance control – ±1mm on cut dimensions, ±0.5° on bends.
3. No tooling fees – CNC programming included at no extra cost.
4. In-stock base materials – ready for immediate processing.
5. Project fabrication experience – supplied to OEMs, contractors, and machine builders.
6. One-stop service – cutting, bending, welding, finishing, and packaging.
Applications
1. Custom equipment guards with cutouts for displays or controls.
2. Architectural cladding corner pieces – bent to building geometry.
3. Curved walkway sections for industrial catwalks.
4. Non-standard machine frames and enclosure panels.
5. Art installations and custom furniture mesh inserts.
6. Retrofit projects – exact match to existing mounting holes.
