Narrow Width Micro Stainless Steel Filter Screen 200 - 400 Mesh Ultra Fine for Filter Cartridge and Mini Equipment
Narrow Width Micro Stainless Steel Filter Screen 200 - 400 Mesh Ultra Fine for Filter Cartridge and Mini Equipment

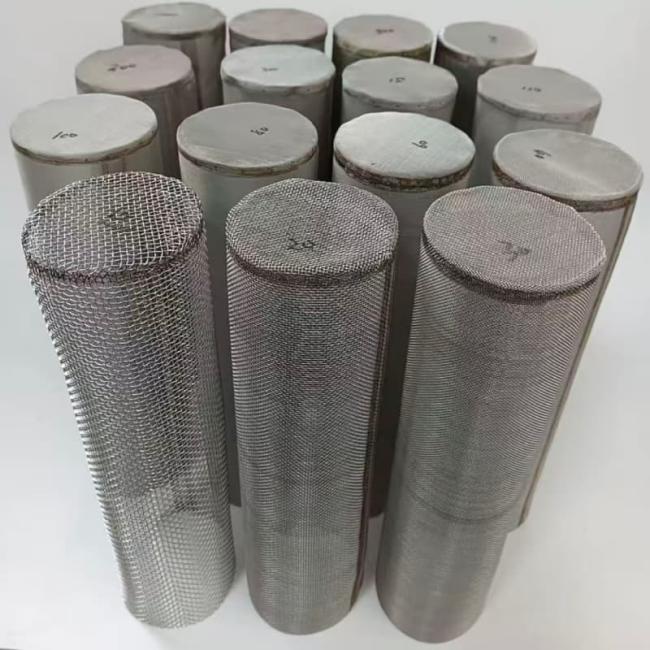

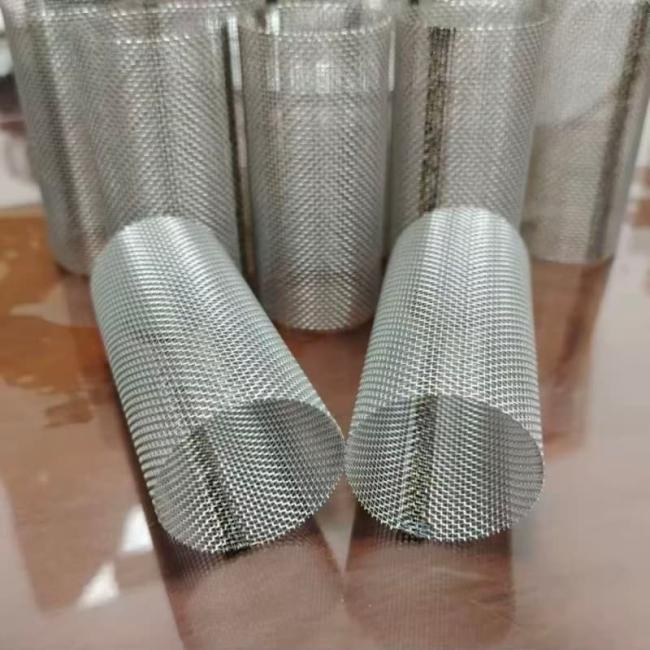

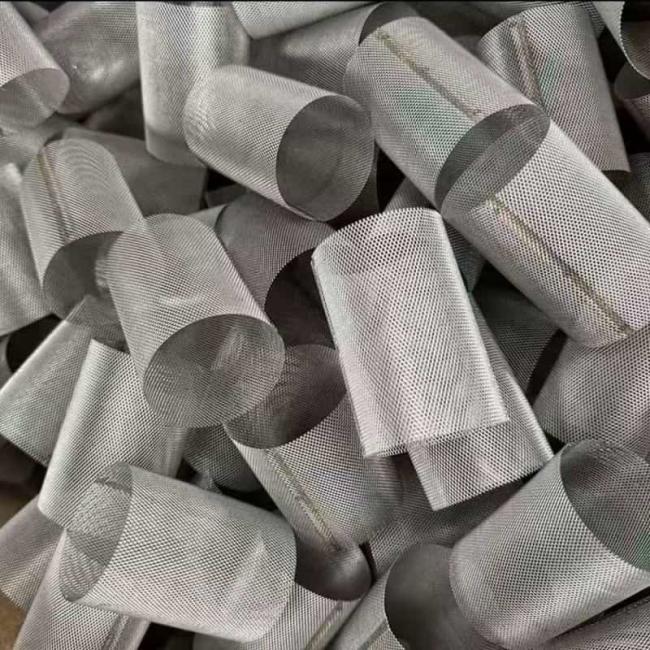

Stainless steel filter screen Description
Anping County Chuangyi Hardware Products Co., Ltd. mainly produces stainless steel filter screens.This narrow-width micro filter mesh is customized for small precision equipment and filter cartridges. With ultra-fine 200-400 mesh, it can capture micron-level tiny impurities. Made of high-purity 316 stainless steel, it has excellent chemical resistance and will not release contaminants. The narrow fixed width features precise dimension tolerance, flat mesh surface without warping, perfectly suitable for rolling, cutting and processing into various miniature filter elements.
| Products name | Stainless Steel Filter Screen |
| material | 316 Stainless Steel |
| Mesh Count | 200-400 mesh |
| Width | 0.3m / 0.5m (narrow width custom sizes available) |
| Mesh Size | 0.03mm - 0.08mm |
| Wire Diameter | 0.03mm - 0.08mm |
| Technology | Ultra-fine filament precision weaving |
| Additional Attributes | Precise dimensions, flat mesh surface, compatible with rolled filter cartridges, no dust shedding |
| Special service | OEM ODM |
Features
Narrow, custom-designed dimensions, specifically for filter cartridges and small instruments.
Ultra-high mesh count enables micron-level ultra-precision filtration.
Made of 316 stainless steel, resistant to various chemical reagents, ensuring high cleanliness.
Dense weave with no shedding, guaranteeing the purity of the filter media.
High mesh flatness facilitates secondary processing and assembly.
|
Mesh/Inch |
Wire Diameter |
Aperture |
Open area |
weigh(LB)100square foot |
||
|
|
Inch |
MM |
Inch |
MM |
|
|
|
1×1 |
0.08 |
2.03 |
0.92 |
23.37 |
84.6 |
41.1 |
|
2×2 |
0.063 |
1.6 |
0.437 |
11.1 |
76.4 |
51.2 |
|
3×3 |
0.054 |
1.37 |
0.279 |
7.09 |
70.1 |
56.7 |
|
4×4 |
0.063 |
1.6 |
0.187 |
4.75 |
56 |
104.8 |
|
4×4 |
0.047 |
1.19 |
0.203 |
5.16 |
65.9 |
57.6 |
|
5×5 |
0.041 |
1.04 |
0.159 |
4.04 |
63.2 |
54.9 |
|
6×6 |
0.035 |
0.89 |
0.132 |
3.35 |
62.7 |
48.1 |
|
8×8 |
0.028 |
0.71 |
0.097 |
2.46 |
60.2 |
41.1 |
|
10×10 |
0.025 |
0.64 |
0.075 |
1.91 |
56.3 |
41.2 |
|
10×10 |
0.02 |
0.51 |
0.08 |
2.03 |
64 |
26.1 |
|
12×12 |
0.023 |
0.584 |
0.06 |
1.52 |
51.8 |
42.2 |
|
12×12 |
0.02 |
0.508 |
0.063 |
1.6 |
57.2 |
31.6 |
|
14×14 |
0.023 |
0.584 |
0.048 |
1.22 |
45.2 |
49.8 |
|
14×14 |
0.02 |
0.508 |
0.051 |
1.3 |
51 |
37.2 |
|
16×16 |
0.018 |
0.457 |
0.0445 |
1.13 |
50.7 |
34.5 |
|
18×18 |
0.017 |
0.432 |
0.0386 |
0.98 |
48.3 |
34.8 |
|
20×20 |
0.02 |
0.508 |
0.03 |
0.76 |
36 |
55.2 |
|
20×20 |
0.016 |
0.406 |
0.034 |
0.86 |
46.2 |
34.4 |
|
24×24 |
0.014 |
0.356 |
0.0277 |
0.7 |
44.2 |
31.8 |
|
30×30 |
0.013 |
0.33 |
0.0203 |
0.52 |
37.1 |
34.8 |
|
30×30 |
0.012 |
0.305 |
0.0213 |
0.54 |
40.8 |
29.4 |
|
30×30 |
0.009 |
0.229 |
0.0243 |
0.62 |
53.1 |
16.1 |
|
35×35 |
0.011 |
0.279 |
0.0176 |
0.45 |
37.9 |
29 |
|
40×40 |
0.01 |
0.254 |
0.015 |
0.38 |
36 |
27.6 |
|
50×50 |
0.009 |
0.229 |
0.011 |
0.28 |
30.3 |
28.4 |
|
50×50 |
0.008 |
0.203 |
0.012 |
0.31 |
36 |
22.1 |
|
60×60 |
0.0075 |
0.191 |
0.0092 |
0.23 |
30.5 |
23.7 |
|
60×60 |
0.007 |
0.178 |
0.0097 |
0.25 |
33.9 |
20.4 |
|
70×70 |
0.0065 |
0.165 |
0.0078 |
0.2 |
29.8 |
20.8 |
|
80×80 |
0.0065 |
0.165 |
0.006 |
0.15 |
23 |
23.2 |
|
80×80 |
0.0055 |
0.14 |
0.007 |
0.18 |
31.4 |
16.9 |
|
90×90 |
0.005 |
0.127 |
0.0061 |
0.16 |
30.1 |
15.8 |
|
100×100 |
0.0045 |
0.114 |
0.0055 |
0.14 |
30.3 |
14.2 |
|
100×100 |
0.004 |
0.102 |
0.006 |
0.15 |
36 |
11 |
|
100×100 |
0.0035 |
0.089 |
0.0065 |
0.17 |
42.3 |
8.3 |
|
110×110 |
0.004 |
0.1016 |
0.0051 |
0.1295 |
30.7 |
12.4 |
|
120×120 |
0.0037 |
0.094 |
0.0064 |
0.1168 |
30.7 |
11.6 |
|
150×150 |
0.0026 |
0.066 |
0.0041 |
0.1041 |
37.4 |
7.1 |
|
160×160 |
0.0025 |
0.0635 |
0.0038 |
0.0965 |
36.4 |
5.94 |
|
180×180 |
0.0023 |
0.0584 |
0.0033 |
0.0838 |
34.7 |
6.7 |
|
200×200 |
0.0021 |
0.0533 |
0.0029 |
0.0737 |
33.6 |
6.2 |
|
250×250 |
0.0016 |
0.0406 |
0.0024 |
0.061 |
36 |
4.4 |
|
270×270 |
0.0016 |
0.0406 |
0.0021 |
0.0533 |
32.2 |
4.7 |
|
300×300 |
0.0051 |
0.0381 |
0.0018 |
0.0457 |
29.7 |
3.04 |
|
325×325 |
0.0014 |
0.0356 |
0.0017 |
0.0432 |
30 |
4.4 |
|
400×400 |
0.001 |
0.0254 |
0.0015 |
0.037 |
36 |
3.3 |
|
500×500 |
0.001 |
0.0254 |
0.001 |
0.0354 |
25 |
3.8 |
|
635×635 |
0.0008 |
0.0203 |
0.0008 |
0.0203 |
25 |
2.63 |
Applications
Precision filter elements and cartridges rolling processing
Laboratory miniature filtration instruments
Electronic equipment cooling oil filtration
Small spray and atomizing device filter screens
Medical micro fluid filtration components
FAQ
1.Is this narrow mesh specially made for filter cartridges?
Exactly. Fixed narrow width, flat surface and precise size are perfect for rolling and processing into miniature filter elements.
2.Will tiny wire scraps fall off during use?
Adopting ultra-fine precision weaving, no debris shedding, which guarantees the purity of filtered liquid.
3.Can it filter micron-sized particles?
200-400 ultra-high mesh can effectively capture micron-level fine impurities for precision filtration.
