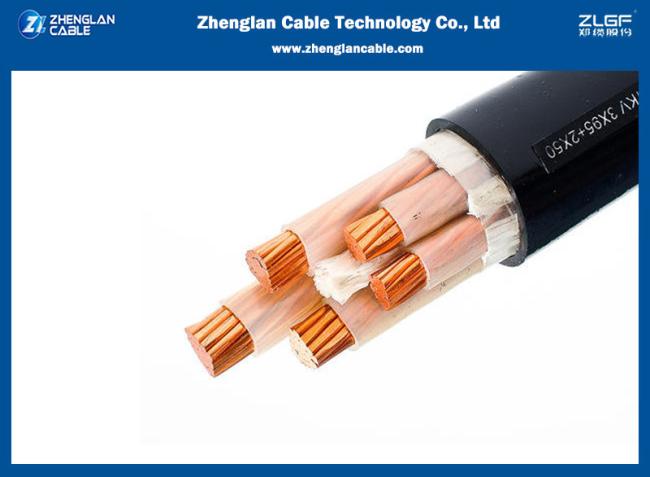

4 Cores /4+1 Core Fire Resistant Cable/ Mica Tape XLPE Insulated Sheathed Fire Proof Cable( Unarmoured )
4 Cores Fire Resistant Cable Mica Tape XLPE Insulated Sheathed Fire Proof Cable
Description
These cables are installed to supply power to building essential services including fire alarms,sprinkler control system, emergency and evacuation lighting and smoke control systems,
Application
Such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail tunnels
Product Features
Max. Conductor Temp.: normal (90°C), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C)
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%
Standard
Basic design to IEC 60502-1, IEC 60228,BS EN 60228
China: GB/T 12706.2-2008
Other standards such as BS7870,DIN and ICEA upon request
Fire Resistant Cable Technical parameter
| Nom. Cross-section of conductor | Insulation Thickness | Sheath | Approx. | Approx | Max. D.C. Resistance of Conductor (20°C) | Test Voltage | Current Rating | |
| mm2 | mm | Thickness | O.D. | Weight | Ω/km | A.C | ||
| mm | mm | kg/km | kV/5min | In air(A) | In soil(A) | |||
| 4×1.5 | 0.7 | 1.8 | 14.4 | 241 | 12.1 | 3.5 | 20 | 27 |
| 4×2.5 | 0.7 | 1.8 | 15.4 | 295 | 7.41 | 3.5 | 26 | 35 |
| 4×4 | 0.7 | 1.8 | 16.5 | 369 | 4.61 | 3.5 | 34 | 45 |
| 4×6 | 0.7 | 1.8 | 17.8 | 463 | 3.08 | 3.5 | 43 | 57 |
| 4×10 | 0.7 | 1.8 | 20.9 | 667 | 1.83 | 3.5 | 60 | 77 |
| 4×16 | 0.7 | 1.8 | 23.4 | 930 | 1.15 | 3.5 | 83 | 105 |
| 4×25 | 0.9 | 1.8 | 27.1 | 1351 | 0.727 | 3.5 | 105 | 125 |
| 4×35 | 0.9 | 1.8 | 29.5 | 1772 | 0.524 | 3.5 | 125 | 155 |
| 4×50 | 1 | 1.9 | 38.4 | 2380 | 0.387 | 3.5 | 160 | 185 |
| 4×70 | 1.1 | 2 | 43.2 | 3302 | 0.268 | 3.5 | 200 | 225 |
| 4×95 | 1.1 | 2.2 | 47.3 | 4330 | 0.193 | 3.5 | 245 | 270 |
| 4×120 | 1.2 | 2.3 | 52.5 | 5374 | 0.153 | 3.5 | 285 | 310 |
| 4×150 | 1.4 | 2.5 | 58.3 | 6655 | 0.124 | 3.5 | 325 | 345 |
| 4×185 | 1.6 | 2.7 | 64.7 | 8246 | 0.0991 | 3.5 | 375 | 390 |
| 4×240 | 1.7 | 2.9 | 73.1 | 10569 | 0.0754 | 3.5 | 440 | 450 |
| 4×2.5+1×1.5 | 0.7 | 1.8 | 16.5 | 313 | 7.41 | 3.5 | 26 | 35 |
| 4×4+1×2.5 | 0.7 | 1.8 | 17.7 | 424 | 4.61 | 3.5 | 34 | 45 |
| 4×6+1×4 | 0.7 | 1.8 | 19.1 | 535 | 3.08 | 3.5 | 43 | 57 |
| 4×10+1×6 | 0.7 | 1.8 | 22.1 | 760 | 1.83 | 3.5 | 60 | 77 |
| 4×16+1×10 | 0.7 | 1.8 | 25.1 | 1071 | 1.15 | 3.5 | 83 | 105 |
| 4×25+1×16 | 0.7 | 1.8 | 29 | 1556 | 0.727 | 3.5 | 105 | 125 |
| 4×35+1×16 | 0.9 | 1.9 | 31.4 | 1976 | 0.524 | 3.5 | 125 | 155 |
| 4×50+1×25 | 1 | 2.1 | 36 | 2689 | 0.387 | 3.5 | 160 | 185 |
| 4×70+1×35 | 1.1 | 2.2 | 41.1 | 3719 | 0.268 | 3.5 | 200 | 225 |
| 4×95+1×50 | 1.1 | 2.4 | 46.3 | 4903 | 0.193 | 3.5 | 245 | 270 |
| 4×120+1×70 | 1.2 | 2.5 | 51 | 6165 | 0.153 | 3.5 | 285 | 310 |
| 4×150+1×70 | 1.4 | 2.7 | 55.8 | 7431 | 0.124 | 3.5 | 325 | 345 |
| 4×185+1×95 | 1.6 | 2.9 | 62.1 | 9192 | 0.0991 | 3.5 | 375 | 390 |
| 4×240+1×120 | 1.7 | 3.1 | 68.8 | 11860 | 0.0754 | 3.5 | 440 | 450 |

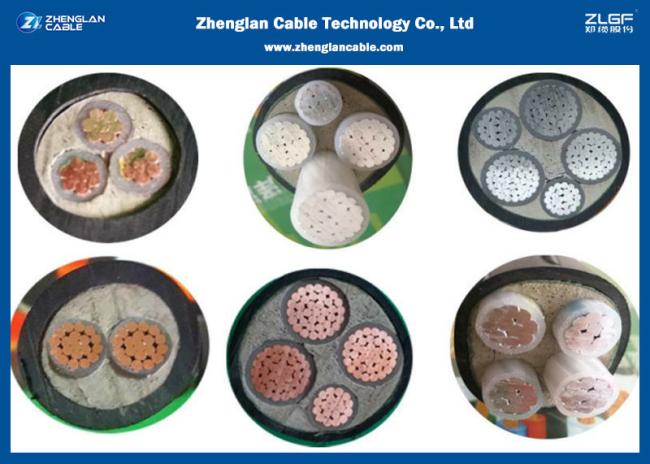

Productors show

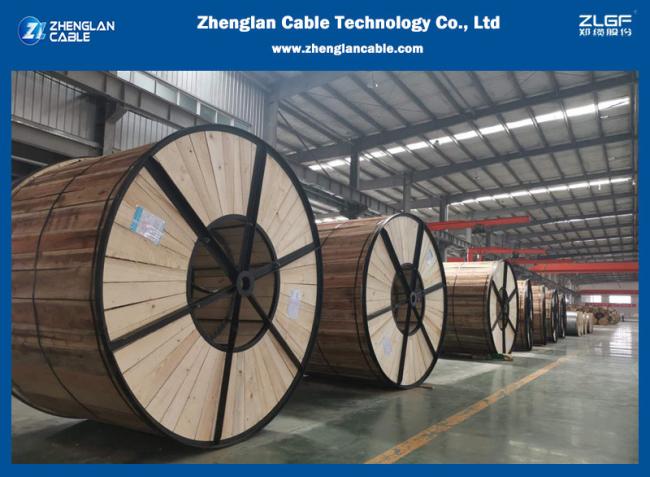

Package
About us
We, Zhenglan Cable Technology Co., Ltd, are manufacturer of cable and wire with over 20years' experience.
Our factory workshop taking up about 60000SQM is located in Wuzhi County, Jiaozuo city, Henan province, in the middle of China.
Our main products are
- overhead transmission line use bare conductor(ACSR, AAC, AAAC etc)
- 1-35kv overhead transmission line use insulated conductor
- power distribution use 0.6/1kv, 1.8/3kv PVC/XLPE/PE insulated LV(low voltage) power cable armored or unarmored
- power distribution use 3.6/6kv, 6/10kv,8.7/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv XLPE insulated MV(medium voltage) power cable armored or unarmored;
- 300/300V, 300/500V, 450/750V cotrol cable, house wire
