IEC60521 Standard LV XLPE SWA Armoured LSZH Power Cable

Price Negotiable

Price: negotiate

MOQ: 300 meters

Delivery Time: 12 days

Brand: Zhenglan cable

Product Description

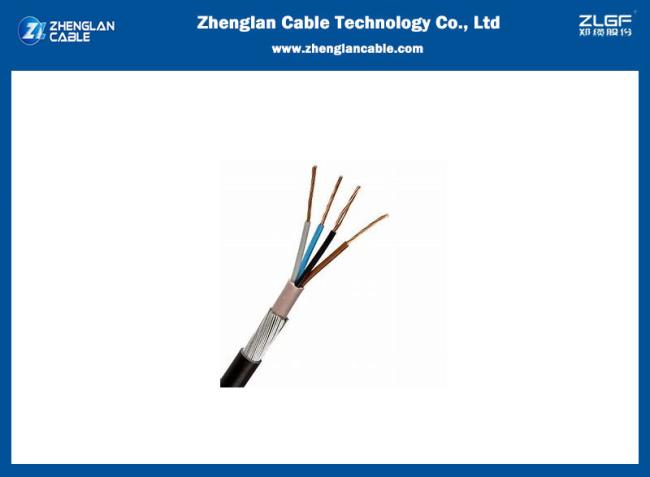

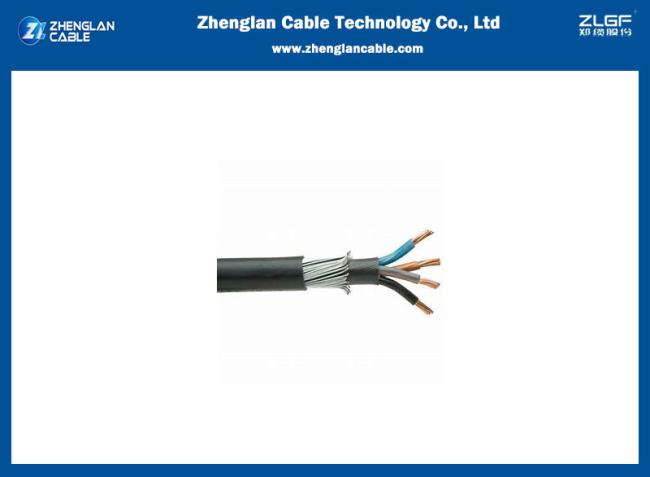

IEC60521 standard LV 1-5 Cores XLPE SWA armoured LSZH power cable

Structure
Conductor: Copper
Insulation: XLPE

Inner sheath:PVC/LSZH
Armour: Steel Tape Armour or Steel Wire Armour
Outer sheath: PVC/LSZH

Operation characteristic
1.Rated voltage:0.6/1kV.
2.Long-term permission working temperature of cable conductor is 90℃.
3.The minimum allowable bending radius of cable is 8 times of outer diameter of thecable.

Application

This Copper conductor steel wire armoured 4 core armoured cable 120mm is used in underground power transmission lines of rated voltage 600/1000V and below. The swa armour allows the cable to bear large vertical pressures.

Cable Parameters:

Four cores(Galvanized steel wire armoured)

Nominal Area	Approx Conductor Diameter	Nominal Insulation thickness	Nominal bedding thickness	Nominal Steel Wire dia.	Nominal Sheath thickness	Approx. Overall Diameter	Approx. Weight
mm²	mm	mm	mm	mm	mm	mm	Kg/Km
4x1.5	1.6	0.7	1	0.9	1.8	15	415
4x2.5	2	0.7	1	0.9	1.8	17.5	490
4x4	2.6	0.7	1	0.9	1.8	19	600
4x6	3.1	0.7	1	0.9	1.8	20	730
4x10	4	0.7	1	1.25	1.8	23	970
4x16	5	0.7	1	1.6	1.8	26	1520
4x25	6.3	0.9	1	1.6	1.8	29	2010
4x35	7.4	0.9	1	1.6	1.9	31	2560
4x50	8.8	1	1	1.6	2.1	36	3350
4x70	10.6	1.1	1.2	2	2.2	40	4680
4x95	12.4	1.1	1.2	2	2.4	44	5710
4x120	14	1.2	1.4	2.5	2.5	50	7500
4x150	15.5	1.4	1.4	2.5	2.6	55	9010
4x185	17.4	1.6	1.4	2.5	2.8	61	10820
4x240	20.3	1.7	1.6	2.5	3.1	69	13630
4x300	22.7	1.8	1.6	2.5	3.2	75	16820
4x400	25.4	2	1.8	3.15	3.4	83	22230

Why Choose Zhenglan Cable:

OEM/ODM services provided;
Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
Registered capital of $30 million and factory covers an area of 60,000㎡;
Advanced test equipment and procedures, 100% inspection before factory;
Enough stocks and the higest efficient shipping time guarranteed;
Professional pre-sales and after-sales services provided.
