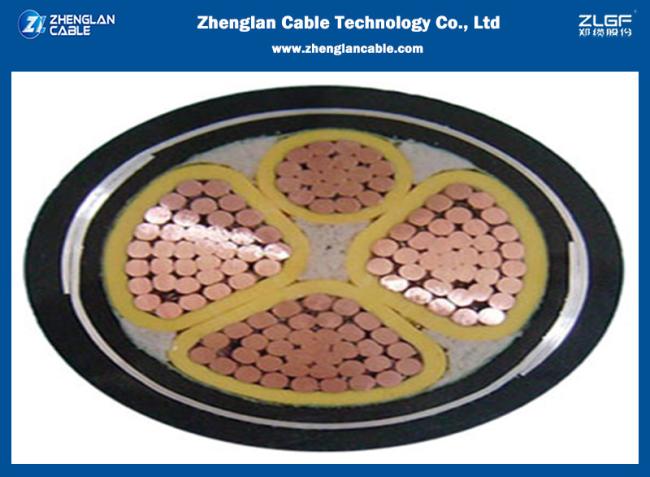

LV XLPE PVC Insulated Armoured Underground Power Transmission Cable 3x95mm+1x50mm
0.6/1 Kv Underground 3x95sqmm+1x50sqmm copper/aluminum conductor XLPE/PVC Armoured Power Transmission Cable IEC 60502-1
Applaciations:
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
Construction:
| Conductor | Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request. |
| Insulation | XLPE, PVC, |
| Amouring |
1)Non-armoued 2)Steel tape armoured (STA) 3)Steel wire armoured(SWA) Aluminum wire armoured(AWA) |
| Sheath | LSZH material, PVC |
Noted: Insulation color as per standards or customer requirement.
Rated Voltage
U0/U(Um) 0.6/1(1.2) No. of cores : 1 , 2 , 3, 4 , 5, 3+1 , 4+1 ,3+2 Nominal cross-section(mm2): 1.5~630
Standard:
Basic design to IEC 60502-1, IEC 60228,BS EN 60228
China: GB/T 12706.2-2008
Other standards such as BS7870,DIN and ICEA upon request
Flame Retardant Cables:
The flame retardant cable is mainly featured in low liability of fire or that second combustion is only limited to a certain range, meets the IEC 60332 combustion testing requirements, it can be categorized into category A, B, C and D. Flame retardant cable highly recommended to use on the places with flame retardant requirement like oil and gas mining.
Cable Parameters:
Four cores (unarmoured)
|
Nominal Cross Section |
Diameter of Conductor (Approx.) |
Nominal Insulation Thickness |
Nominal PVC Sheath Thickness |
Overall Diameter (Approx.) |
Weight of Cable (Approx.) |
| mm² | mm | mm | mm | mm | Kg/Km |
| 4x1.5 | 1.38 | 0.8 | 1.8 | 13.5 | 265 |
| 4x2.5 | 1.76 | 0.8 | 1.8 | 14.5 | 325 |
| 4x4 | 2.25 | 1.0 | 1.8 | 16.5 | 450 |
| 4x6 | 2.76 | 1.0 | 1.8 | 18.0 | 560 |
| 4x10 | 4.0 | 1.0 | 1.8 | 20.0 | 770 |
| 4x16 | 5.0 | 1 | 1.8 | 23 .0 | 1080 |
| 4x25 | 6.3 | 1.2 | 1.8 | 26.5 | 1580 |
| 4x35 | 7.4 | 1.2 | 1.8 | 29.5 | 2070 |
| 4x50 | 8.8 | 1.4 | 1.8 | 34.0 | 2680 |
| 4x70 | 10.6 | 1.4 | 2.0 | 38.0 | 3760 |
| 4x95 | 12.4 | 1.6 | 2.1 | 44.0 | 4960 |
| 4x120 | 14.0 | 1.8 | 2.3 | 48.0 | 6110 |
| 4x150 | 15.5 | 1.8 | 2.4 | 53.0 | 7450 |
| 4x185 | 17.4 | 2.0 | 2.6 | 58.0 | 9220 |
| 4x240 | 20.3 | 2.2 | 2.8 | 65.0 | 11900 |
| 4x300 | 22.7 | 2.4 | 3.0 | 72.0 | 14730 |
| 4x400 | 25.4 | 2.6 | 3.3 | 81.0 | 18830 |

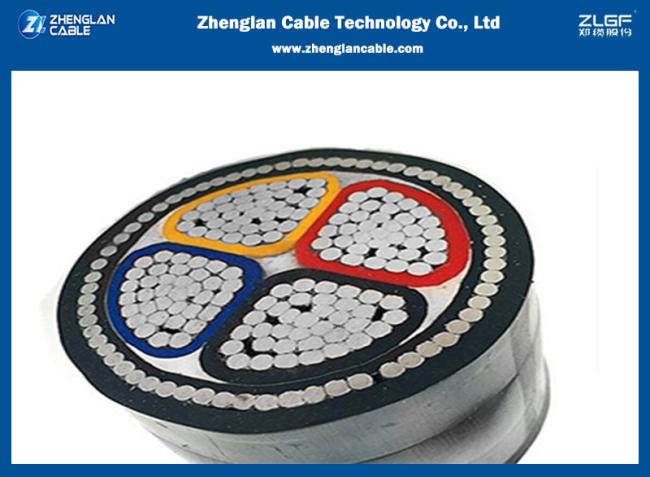

Products show:
Why Choose Zhenglan Cable:
- OEM/ODM services provided;
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
- Professional pre-sales and after-sales services provided.
