PVC Insulated PVC Sheathed SWA Armored Multicore Power Cable 3x35+2x16sqmm
PVC insulated PVC Sheathed SWA armored multicore Power Cable 3x35+2x16sqmm BS6346
Application
PVC insulated PVC Sheathed SWA armored multicore Power Cable 3x35+2x16sqmm BS6346 are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications where chemical and mechanical protections are needed (refinery areas, chemical plant...)

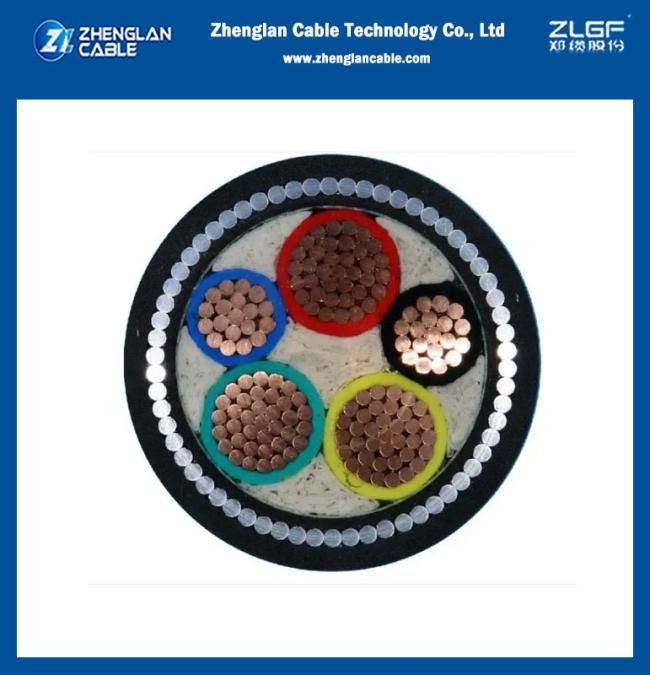

Construction
Conductor Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.
Insulation
PVC(Polyvinyl Chloride) type TI1 Colour Code 1 Core : Brown 2 Cores: Brown or Blue 3 Cores: Brown, Black, Grey 4 Cores: Blue, Brown, Black, Grey 5 Cores: Green-yellow, Blue, Brown, Black, Grey Above 5 Cores: White Cores with black numbers
Filler(optional) PVC or Polypropylene yarn Binder Tape(optional) Polyester (Mylar) tape
Inner Sheath/ Bedding PVC (Polyvinyl Chloride)
Armour Single Core: AWA (Aluminum Wire Armour) Multi Core: SWA (Steel Wire or Tape Armour)
Outer Sheath PVC(Polyvinyl Chloride), type TM1
PVC insulated PVC Sheathed SWA armored multicore Power Cable 3x35+2x16sqmm BS6346
Technical parameter
| Conductor dimensions (mm2) | Insulation thickness (mm) | PVC bedding thickness | Armored wire outer diameter | Sheath thickness | Outer diameter (approximate) | Cable weight (approximate) (Kg/km) | ||
| Phase line | Null line | Phase line | Null line | 3+2C | 3+2C | 3+2C | 3+2C | 3+2C |
| 2.5 | 1.5 | 0.7 | 0.7 | 1 | 0.8 | 1.8 | 16.8 | 504 |
| 4 | 2.5 | 0.7 | 0.7 | 1 | 1.25 | 1.8 | 18.8 | 730 |
| 6 | 4 | 0.7 | 0.7 | 1 | 1.25 | 1.8 | 20.2 | 869 |
| 10 | 6 | 0.7 | 0.7 | 1 | 1.25 | 1.8 | 22.6 | 1117 |
| 16 | 10 | 0.7 | 0.7 | 1 | 1.6 | 1.8 | 26.3 | 1640 |
| 25 | 16 | 0.9 | 0.7 | 1 | 1.6 | 1.8 | 29.7 | 2172 |
| 35 | 16 | 0.9 | 0.7 | 1 | 1.6 | 1.8 | 31.7 | 2515 |
| 50 | 25 | 1 | 0.9 | 1 | 1.6 | 2 | 35.9 | 3357 |
| 70 | 35 | 1.1 | 0.9 | 1.2 | 2 | 2.1 | 40.4 | 4577 |
| 95 | 50 | 1.1 | 1 | 1.2 | 2 | 2.3 | 45 | 5837 |
| 120 | 70 | 1.2 | 1.1 | 1.4 | 2.5 | 2.5 | 50.8 | 7821 |
| 150 | 70 | 1.4 | 1.1 | 1.4 | 2.5 | 2.6 | 55.1 | 8969 |
| 185 | 95 | 1.6 | 1.1 | 1.4 | 2.5 | 2.8 | 60.6 | 10871 |
| 240 | 120 | 1.7 | 1.2 | 1.6 | 2.5 | 3 | 68.2 | 13507 |
| 300 | 150 | 1.8 | 1.4 | 1.6 | 2.5 | 3.2 | 75 | 16353 |
| 400 | 185 | 2 | 1.6 | 1.8 | 3.15 | 3.5 | 85.5 | 21623 |

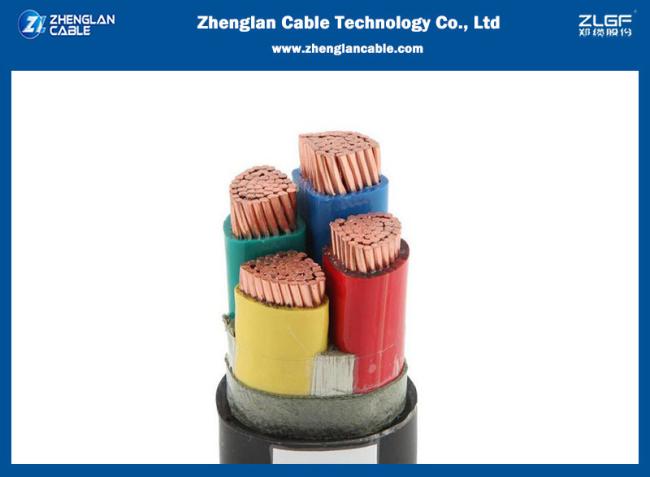

PVC insulated PVC Sheathed SWA armored multicore Power Cable 3x35+2x16sqmm BS6346 show
