NA2XY NAYY NAY2Y NA2X2Y multicore copper/aluminum PVC/PE outer sheath cable electrical wire cable

Product Description:

Low voltage cables find extensive use across various applications due to their robust construction and versatility.

Construction:

1. Solid (RE) or stranded (RM/SM) bare copper/aluminum
2. Core insulation of polyvinylchloride (PVC)
3. PVC core covering or taping
4. Outer sheath of polyvinylchloride (PVC), black

Information:

short circuit temperature on core (max. 5 sec.)

<=300mm² --> 160°C

>300mm² --> 140°C

According to:

DIN VDE 0276-603 HD 603 S1:1994 + A2:2003 DIN EN 60228 class 1 and 2 (construction) HD 308 S2 (core identification)

Technical Parameters:

Nominal voltage: Uo/U: 600/1000V

Test voltage [V]: AC 4000V

Temperature range: in motion - 5°C till +70°C

fixed -20°C till +70°C

Bending radius: single-core style 15D

multi-core style 12D

Flammability standard: EN 60332-1-2

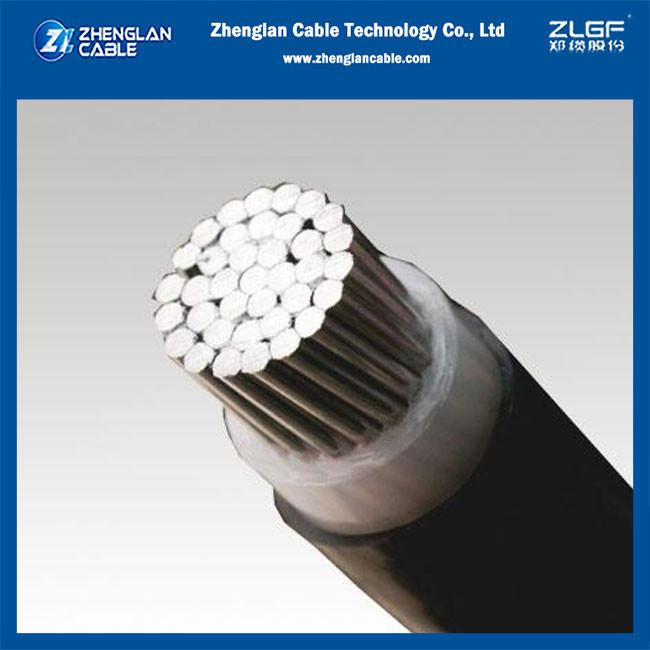

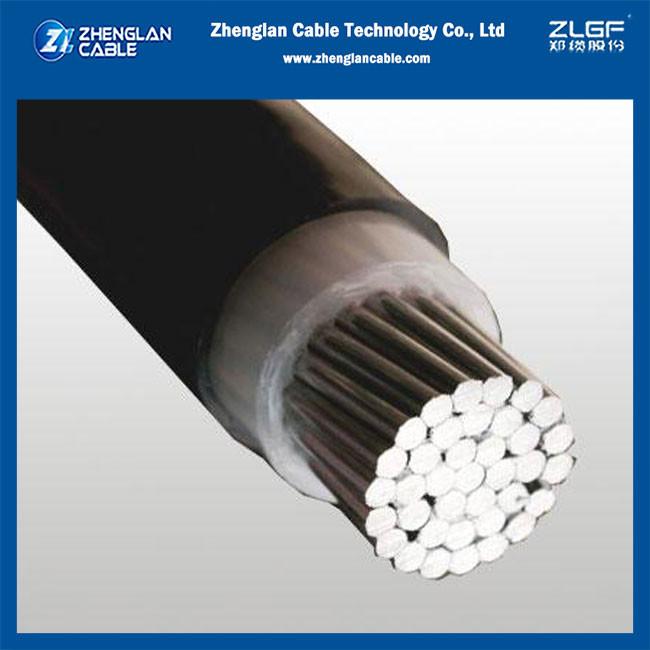

Image:

Support and Services:

The LV Power Cables product technical support and services include:

• Installation and commissioning support
• Maintenance and repair services
• Product training and education
• Customized solutions development
• Performance testing and evaluation

Packing and Shipping:

Product Packaging:

• The LV power cables are packaged in sturdy wooden crates to ensure safe transportation.
• Each crate contains the required number of cables based on the customer's order.
• The cables are wrapped in protective materials to prevent damage during shipping.

Shipping:

• The LV power cables are shipped via freight carriers such as trucks or ships.
• We offer a variety of shipping options to meet the customer's needs, including expedited shipping for urgent orders.
• Customers can track their shipment through our website using the provided tracking number.

Why Choose Zhenglan Cable:
OEM/ODM services provided;
Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
Registered capital of $30 million and factory covers an area of 60,000㎡;
Advanced test equipment and procedures, 100% inspection before factory;
Enough stocks and the higest efficient shipping time guarranteed;
Professional pre-sales and after-sales services provided.

RFQ:
1. Is your company a factory or a trade company?
Factory, more than 20 years in China

2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.

3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.

4. What’s the delivery time?
Sample order needs 3~5 days.
Formal order depends on the quantity, usually it needs 15 working days after get your payment.

5. What is your MOQ?
Generally it is 1000m.
