1kv Low Voltage Power Cable 4*35mm2 XLPE Insulated SWA Armored Power Cable IEC60502-1
1kv low voltage power cable 4*35mm2 XLPE insulated SWA armored power cable IEC60502-1
XLPE insulated SWA armored cables are manufactured in accordance with IEC 60502-1. They are designed for use in applications where there is a risk of mechanical stress and where protection is required against mechanical damage. They are commonly used for the supply of mains electricity and for auxiliary control cables in diverse environments including aerial power networks, outdoors, indoors, underground systems and in cable ducting. They are suitable for installation directly into free draining soil as they are protected from damage should be they accidentally hit.
| Nominal Area | Approx Conductor Diameter | Nominal Insulation thickness | Nominal bedding thickness | Nominal Steel Wire dia. | Nominal Sheath thickness | Approx. Overall Diameter | Approx. Weight |
| mm² | mm | mm | mm | mm | mm | mm | Kg/km |
| 4x35 | 7.4 | 0.9 | 1 | 1.6 | 1.9 | 31 | 2560 |

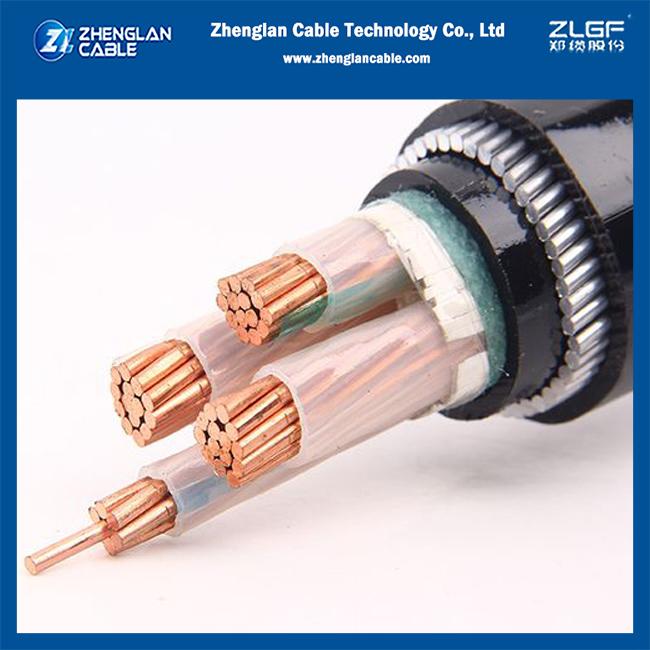

1kv low voltage power cable 4*35mm2 XLPE insulated SWA armored power cable IEC60502-1 Product images
