0.6/1KV Low Voltage Power Cable CU/XLPE/PVC 1x300mm2 copper conductor IEC60502-1
Price:
10-100USD/meter
MOQ:
3000meters
Delivery Time:
20 days
Brand:
Zhenglan cable
Product Description
Application:
Power cable: Indoors, cable ducts, outdoors and buried in the ground, for power stations, industry and switchgear as well as
for urban supply networks.

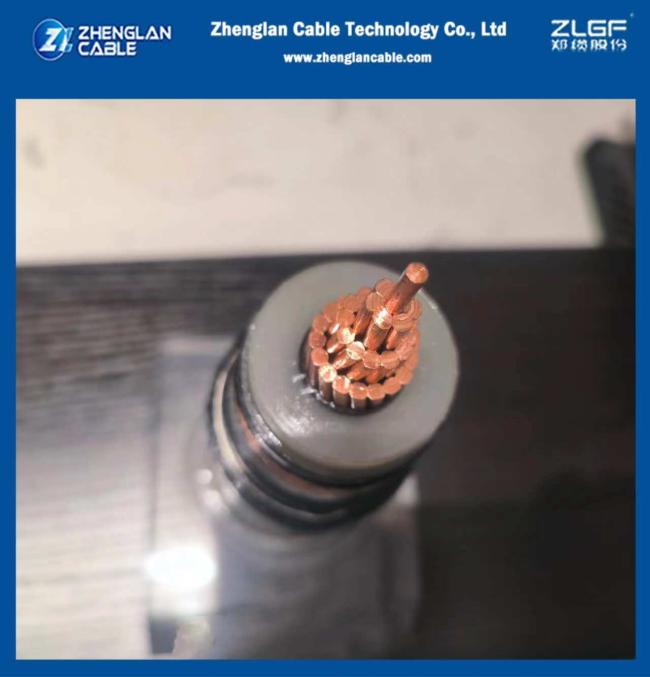

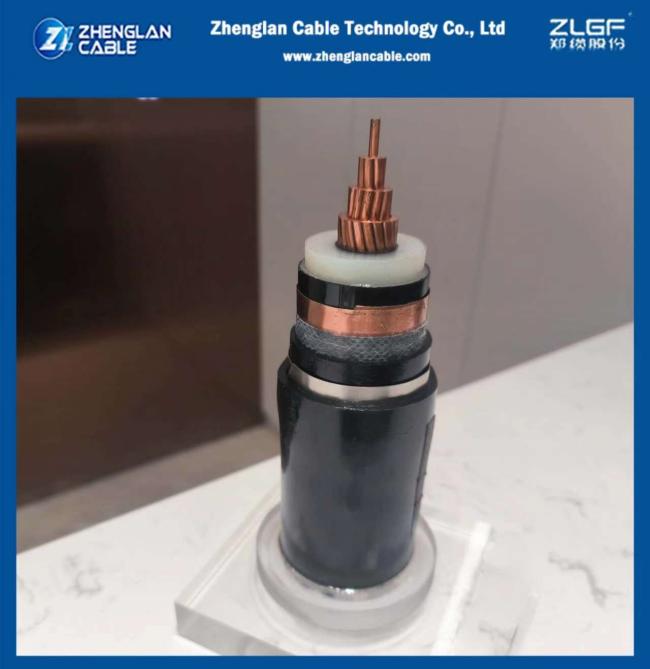

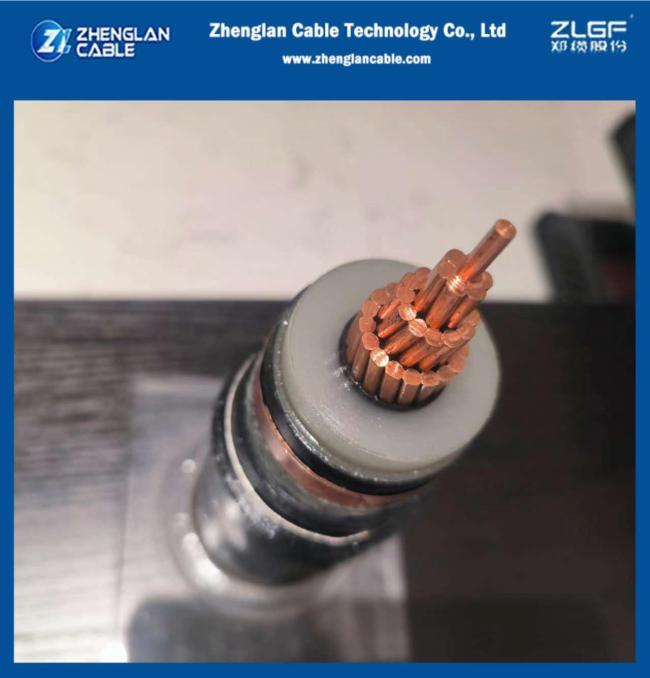

Construction:
- Conductor : Copper or Aluminum Class 2 stranded conductors
- Insulation: Cross-linked polyethylene XLPE
- Armor: Steel wire or Steel-tape
- Over sheath: Polyvinyl chloride PVC or PE
PARAMETER :
XLPE Single Core 300mm2 Copper Cable Parameter
| Cable Type: | CU/XLPE/PVC |
| Operating voltage, U0 / U (V): | 600/1000 |
| Number of Cores: | Single |
| Nominal Area (mm2): | 300 |
| Conductor Stranding: | 60 |
| Insulation Thickness (mm): | 1.8 |
| Sheath Thickness (mm): | 1.8 |
| Cable Overall Diameter (O.D.) (mm): | 27.8 |
| Cable Weight Per 1000 Meters (kg): | 2960 |
| Resistance DC 20°C Per 1000 Meters (Ω): | 0.0601 |
| Allowable Ampacity in Air (Amps): | 620 |
| Allowable Ampacity in Ground (Amps): | 605 |
| Test Voltage: | 3.5kV for 5 minutes |
| Operating Temperature (°C) : | -15 to +90 |
| Final Short Circuit Temperature (°C): | 250 |
