XLPE Insulated 1.5mm2 5 Cores Copper Cable 5x1.5mm2 IEC 60228 IEC 60502-1
XLPE Insulated 1.5mm2 5 Cores Copper Cable 5x1.5mm2 IEC 60228 IEC 60502-1
XLPE 1.5mm2 5 Cores Copper Cable Application
These cables are used for outdoor and indoor installations in damp and wet applications. They are normally used for power distribution in urban networks, industrial plants and energy distribution. For mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable where space is at a premium.
XLPE 1.5mm2 5 Cores Copper Cable Standards
IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)
XLPE 1.5mm2 5 Cores Copper Cable Construction
1. Conductor: Copper , Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Outer sheath: Polyvinyl chloride PVC

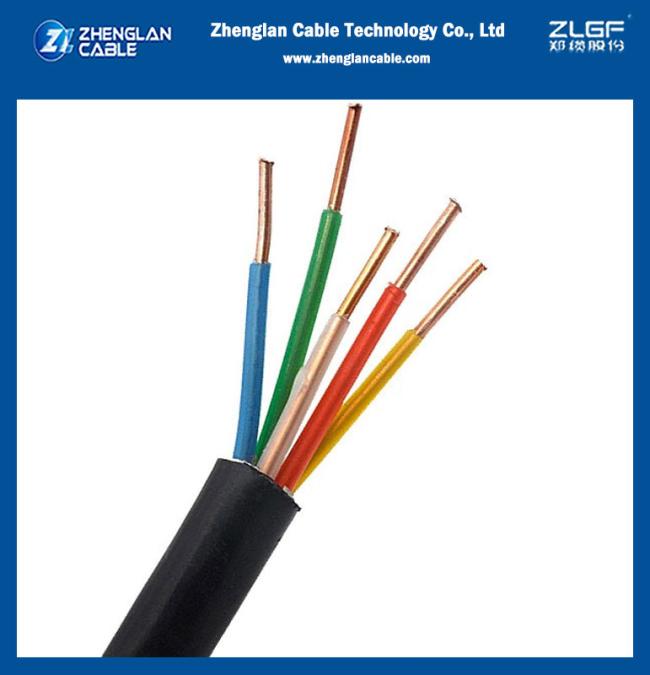

Product picture
PARAMETER :
XLPE 1.5mm2 5 Core Copper Cable Parameter
| Cable Type: | CU/XLPE/PVC |
| Operating voltage, U0 / U (V): | 600/1000 |
| Number of cores: | 5 |
| Nominal Area (mm2): | 1.5 |
| Conductor Stranding: | 1 or 7 |
| Insulation Thickness (mm): | 0.7 |
| Sheath Thickness (mm): | 1.8 |
| Cable Overall Diameter (O.D.) (mm): | 11.7 |
| Cable Weight Per 1000 Meters (kg): | 170 |
| Resistance DC 20°C Per 1000 Meters (Ω): | 12.1 |
| Allowable Ampacity in Air (Amps): | 21 |
| Allowable Ampacity in Ground (Amps): | 30 |
| Test Voltage: | 3.5kV for 5 minutes |
| Operating temperature (°C) : | -15 to +90 |
| Final short circuit temperature (°C): | 250 |
