1KV 4.5 Core Power Cable 4x150+1x70mm2 CU/XLPE/PVC IEC 60502-1
1KV 4.5 core Power Cable 4x150+1x70mm2 CU/XLPE/PVC IEC 60502-1
1KV 4.5 core Power Cable 4x150+1x70mm2 CU/XLPE/PVC IEC 60502-1 are for underground use in industrial applications with an additional mechanical protection in low voltage installation system. These cables can be fixed on cable trays, within conduits or fixed to walls.
1KV 4.5 core Power Cable 4x150+1x70mm2 CU/XLPE/PVC IEC 60502-1 Construction:
Conductor: Plain annealed copper (class 2, normal stranded(≤35mm2) or compact stranded(＞35mm2)
Insulation: XLPE
Filler, binder and inner covering (if any): PP, PET, LSZH
Outer sheath: PVC(LSZH)
1KV 4.5 core Power Cable 4x150+1x70mm2 CU/XLPE/PVC IEC 60502-1 Characteristics
Voltage rate: 0.6/1kV
Maximum conductor temperature: 900C in normal operation; 2500C in short-circuit for 5s max.
Minimum bend radius: 8xD (eight times overall diamerter of cable)
Flame retardant optional: IEC 60332-1; IEC 60332-3-24
Acid gas emission (HCl)(optional): IEC 60502-1; IEC 60754-1
Fluorine content: IEC 60502-1; IEC 60684-2
pH and conductivity: IEC 60502-1; IEC 60754-2
Smoke emission(optional): IEC 61034-2
|
Nominal Area |
Approx Conductor Diameter | Nominal Insulation thickness | Nominal Sheath thickness |
Approx. Overall Diameter |
Approx. Weight |
| mm | mm | mm | mm | mm | Kg/km |
| 4x150+1x70 | 14.5 | 1.4 | 1.8 | 50.3 | 6923.2 |

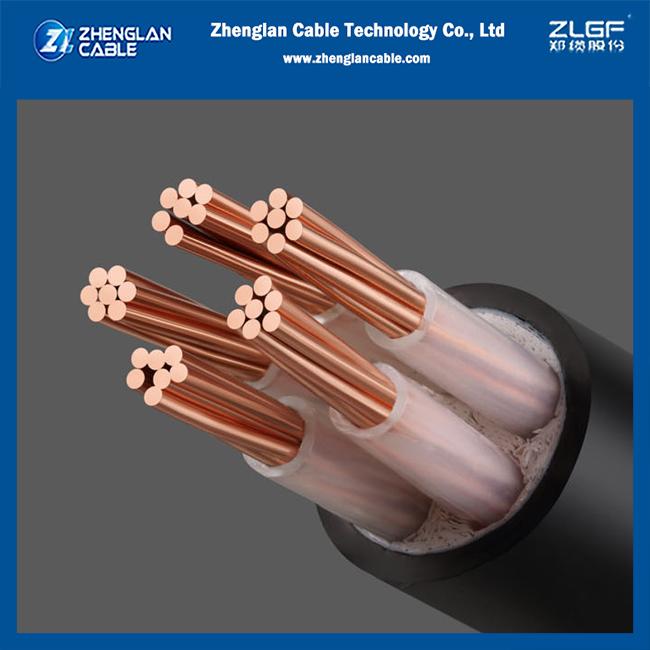

1KV 4.5 core Power Cable 4x150+1x70mm2 CU/XLPE/PVC IEC 60502-1 Product images
1KV 4.5 core Power Cable 4x150+1x70mm2 CU/XLPE/PVC IEC 60502-1 packages

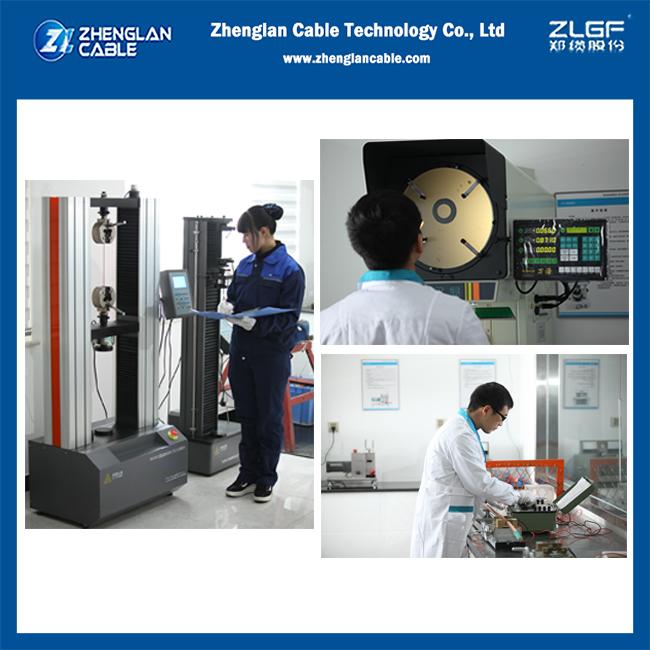

1KV 4.5 core Power Cable 4x150+1x70mm2 CU/XLPE/PVC IEC 60502-1 test machines
