1KV Low Voltage Power Cable NYRY CU/XLPE/SWA/PVC 3x 25+16MM2 IEC60502-1
1KV Low Voltage Power Cable NYRY CU/XLPE/SWA/PVC 3x 25/16MM2 IEC60502-1
1KV Low Voltage Power Cable NYRY CU/XLPE/SWA/PVC 3x25+16MM2 IEC60502-1 Application
These cables are with a low dielectric loss coupled with mechanical resistance. They are mainly used in energy networks with sudden load change residental or industrial areas and can be laid outdoors, under grounds and in areas where sudden mechanical stress are expected
1KV Low Voltage Power Cable NYRY CU/XLPE/SWA/PVC 3x25+16MM2 IEC60502-1 Standards
IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)
1KV Low Voltage Power Cable NYRY CU/XLPE/SWA/PVC 3x25+16MM2 IEC60502-1 Construction
1. Conductor: Copper , Class 1: solid conductor for cable below 10mm2, or Class 2: stranded conductor
2. Insulation: XLPE
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Outer sheath: Polyvinyl chloride PVC

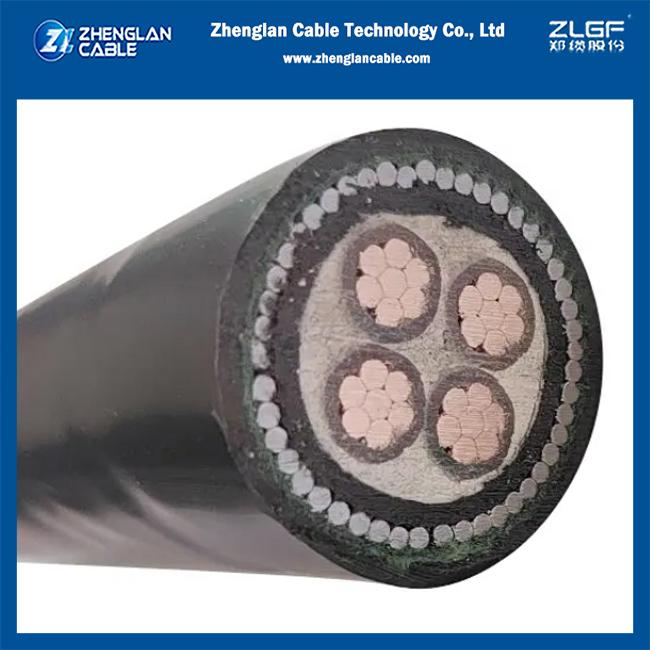

1KV Low Voltage Power Cable NYRY CU/XLPE/SWA/PVC 3x25+16MM2 IEC60502-1 Product picture
1KV Low Voltage Power Cable NYRY CU/XLPE/SWA/PVC 3x25+16MM2 IEC60502-1 PARAMETER :
| Nominal Cross | Approx Conductor Diameter | Nominal Insulation thickness | Nominal bedding thickness | Nominal Steel Wire dia. | Nominal Sheath thickness | Overall Diameter (Approx.) | Weight of Cable (Approx.) | ||
| mm2 | Phase cable (mm) | earth cable (mm) | Phase cable (mm) | earth cable (mm) | mm | mm | mm | mm | kg/km |
| 3x25+16 | 6.3 | 5.0 | 0.9 | 0.7 | 1.0 | 1.6 | 1.8 | 27.5 | 2010 |
