XLPE Insulated SWA Armored Power Cable 4x10mm2 IEC60502-1
XLPE insulated SWA Armored Power Cable 4x10mm2 IEC60502-1
Application:
XLPE insulated SWA Armored Power Cable 4x10mm2 is a type of electrical cable designed for fixed installations especially where the place which has higher mechanical force. This cable is suitable for underground burial, and is used in various settings like power stations, industrial plants, and high-rise buildings

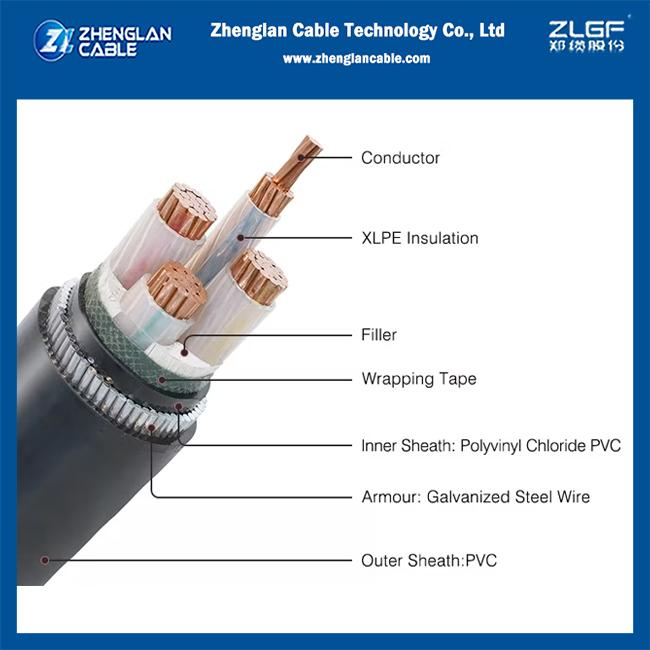

CONSTRUCTION:
2. Insulation: Cross-linked polyethylene XLPE; Core identification: color thread for cable below 10mm2 and color tape for cable including and above 10mm2
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Inner sheath: PVC
XLPE insulated SWA Armored Power Cable 4x10mm2 IEC60502-1 Technical data
| Nominal Area | Approx Conductor Diameter | Nominal Insulation thickness | Nominal bedding thickness | Nominal Steel Wire dia. | Nominal Sheath thickness | Approx. Overall Diameter | Approx. Weight |
| mm2 | mm | mm | mm | mm | mm | mm | Kg/Km |
| 4x10 rm | 4 | 1 | 1 | 1.25 | 1.8 | 24 | 1250 |
XLPE insulated SWA Armored Power Cable 4x10mm2 IEC60502-1 reference images
XLPE insulated SWA Armored Power Cable 4x10mm2 IEC60502-1 Test equipment
About zhenglan cable technology co., ltd
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
Why Choose Zhenglan Cable:
- OEM/ODM services provided;
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
- Professional pre-sales and after-sales services provided.
