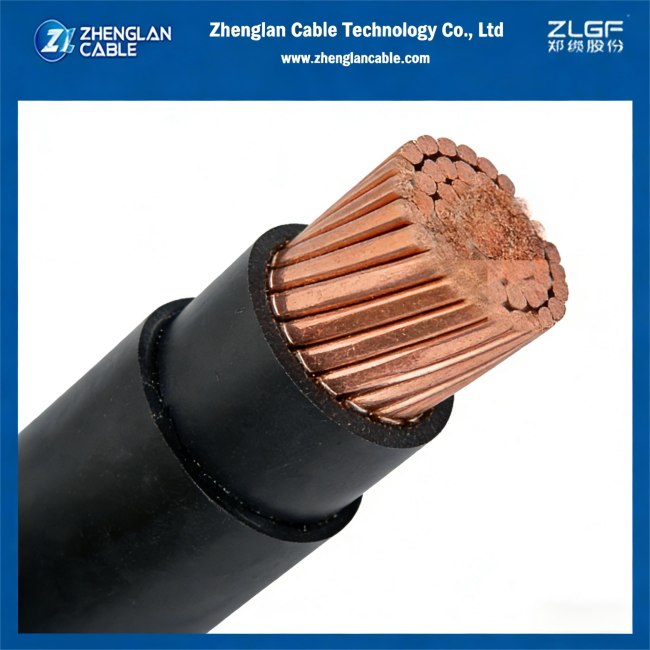

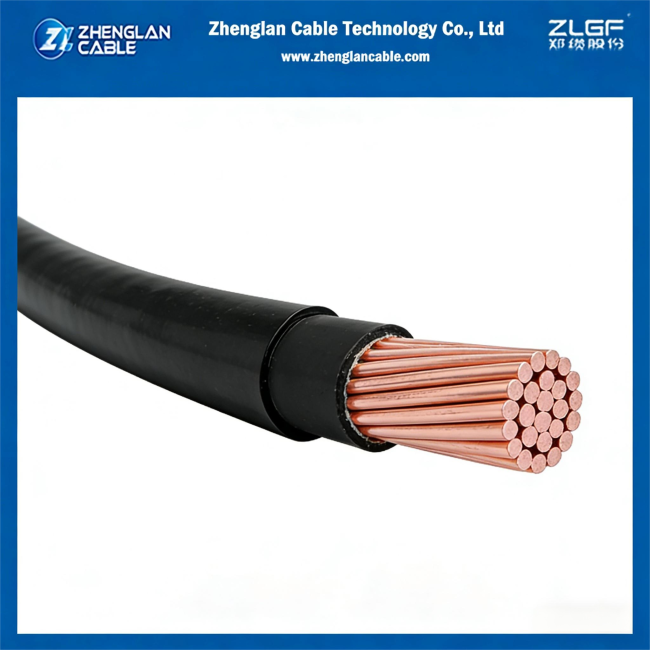

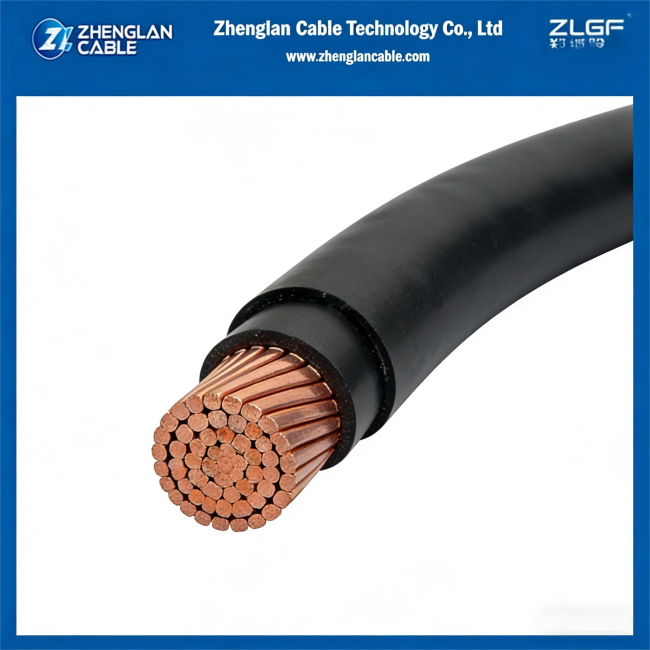

0.6/1kv NYY 1x185mm2 LV Voltage Single core Copper Power Cable PVC insulation PVC sheath IEC 60502-1
Conductor material Copper
Insulation PVC
Outer sheath PVC
Conductor flexibility Stranded class 2
Core identification Black
Sheath colour Black
With Green/Yellow core No
Conductor cross-section 185 mm²
Approximate weight 2000 kg/km
Nominal outer diameter 23.0 mm
Number of cores 1
Conductor electrical resistance 0.099 Ohm/km
Perm. current rating in air 30°C - flat formation 521 A
Perm. current rating in air 30°C - trefoil formation 409 A
Permissible current rating buried/direct 20°C 278 A
Rated Voltage Uo/U (Um) 0,6/1 kV
Bending factor when laying 12 (xD)
Flame retardant IEC 60332-1-2
Maximum operating temperature 70 °C
Operating temperature, range -20 ... 70 °C
Short-circuit max. conductor temperature 160 °C
About zhenglan cable:
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
Why Choose Zhenglan Cable:
- OEM/ODM services provided;
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
- Professional pre-sales and after-sales services provided.
RFQ:
1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
4. What’s the delivery time?
Sample order needs 3~5 days.
Formal order depends on the quantity, usually it needs 15 working days after get your payment.
5. What is your MOQ?
Generally it is 5000m.
