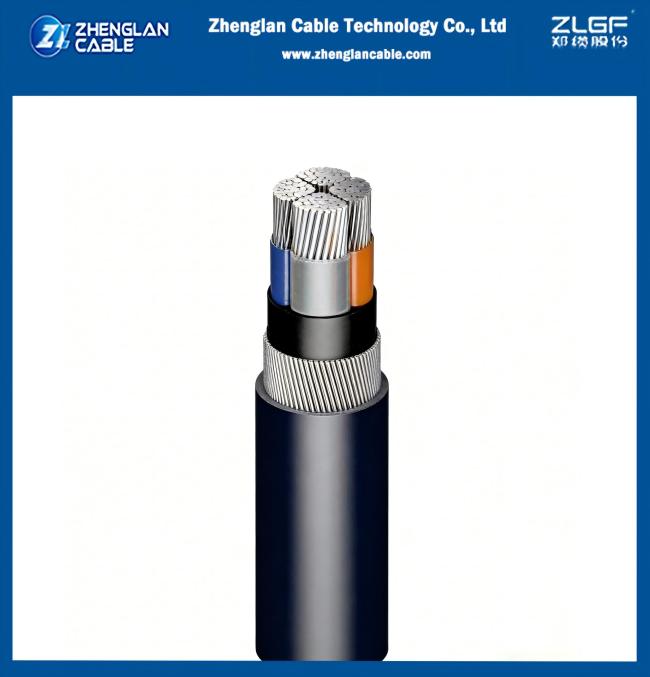

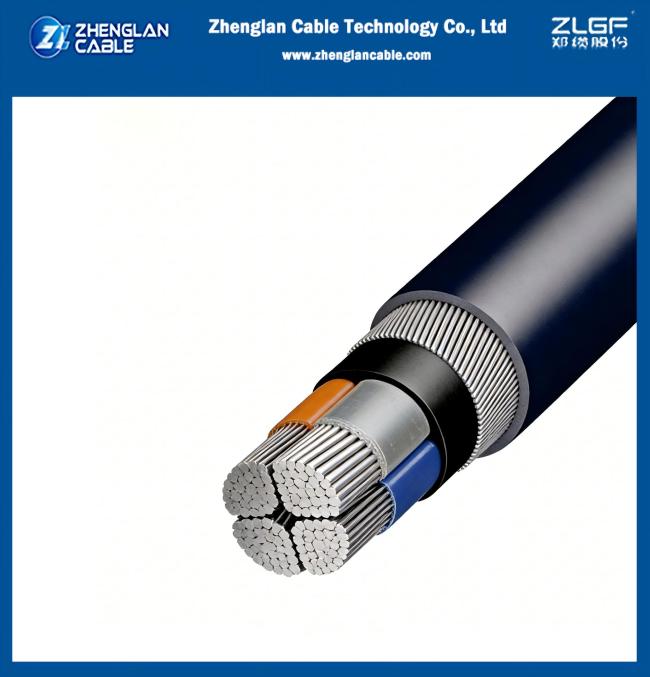

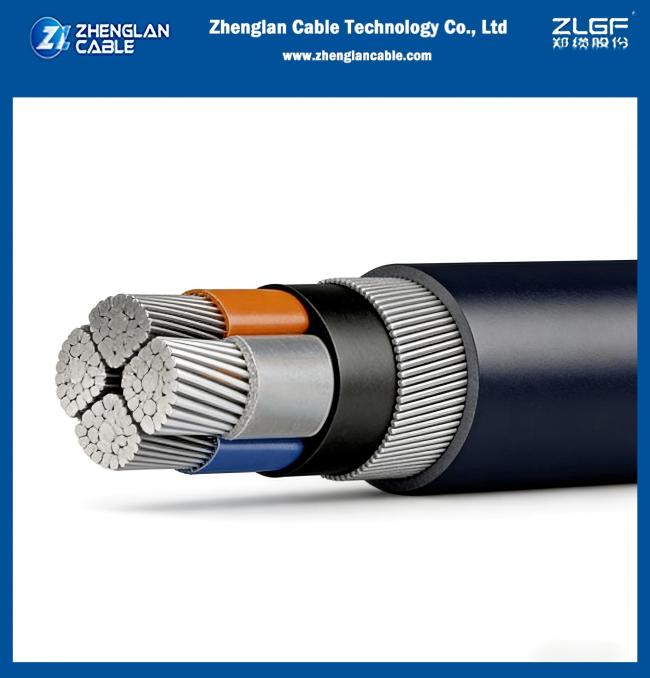

Low Voltage 0.6/1kv Aluminum Underground Armored power Cable SWA Armored XLPE insulation 4x50mm2 IEC60502-1
Price:
Negotiable
MOQ:
500 meters
Delivery Time:
7-10 working days
Brand:
Zhenglan cable
Product Description
Application:
1)These cables are most suitable for direct burial or for installation on trays or ducts, Where there is
a risk of mechanical damage, armoured cables should be used.
2) For laying in ground along route with large difference of level able to bear external mechanical forces.
Standard:
IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer's request.
Construction:
Conductor: Solid or stranded copper, class 2
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)
|
0.6/1.0kV AL/XLPE/PVC/Steel Wire Armoured/PVC power cable |
||||
|
Cable section |
Nominal thickness insulation (mm) |
Nominal thickness of sheath (mm) |
Approx overall diameter (mm) |
Max. DC-resist conductor 20℃ (Ω/km) |
|
4x50mm2 |
1.4 |
2.1 |
33.7 |
0.641 |
Packaging
Manufacturer Information
Zhenglan Cable Technology Co., Ltd is a professional cable and wire manufacturer with over 20 years of experience. Our 60,000 square meter factory is located in Wuzhi County, Jiaozuo City, Henan Province, China.
Product Range
- Overhead transmission line bare conductors (ACSR, AAC, AAAC)
- 1-35kV overhead transmission line insulated conductors
- 0.6/1kV, 1.8/3kV PVC/XLPE/PE insulated LV power cables
- 3.6/6kV to 26/35kV XLPE insulated MV power cables
- 300/300V to 450/750V control cables and house wires
Frequently Asked Questions
Is your company a factory or a trade company?
We are a factory with more than 20 years of manufacturing experience in China.
How long can I expect to get the sample?
Samples are ready for delivery in 3-7 days after payment confirmation. Delivery takes 3-7 days via express service.
What are your payment terms?
Standard terms: T/T 30% deposit, 70% balance before delivery. Trade assurance and other payment methods available.
What's the delivery time?
Sample orders: 3-5 days. Formal orders: 7-30 days after payment, depending on quantity.
What is your MOQ?
Minimum order quantity is typically 500 meters.
