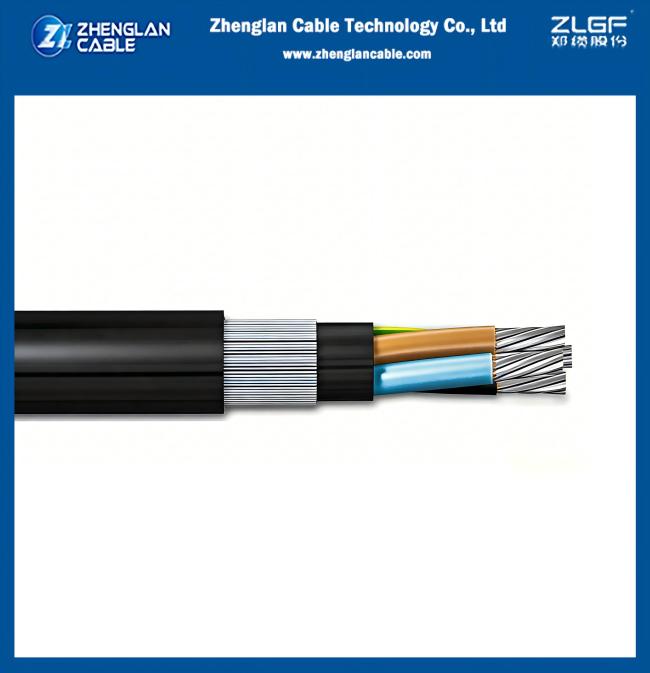

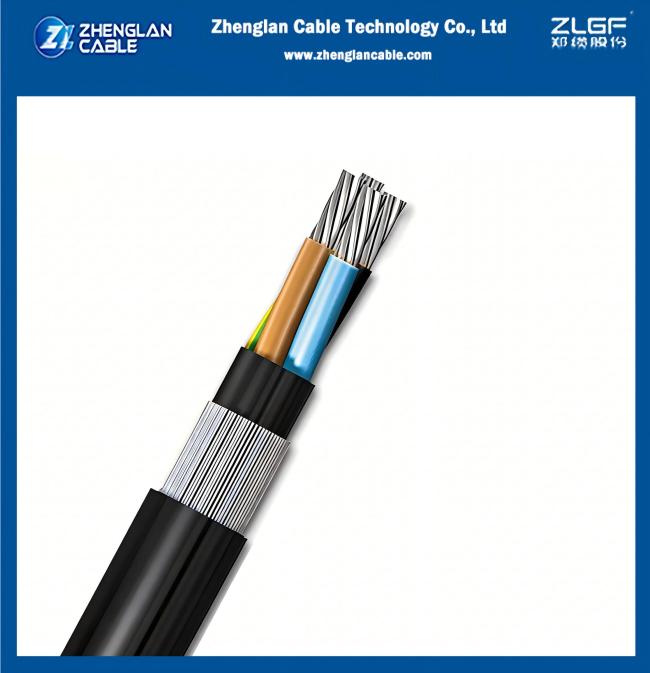

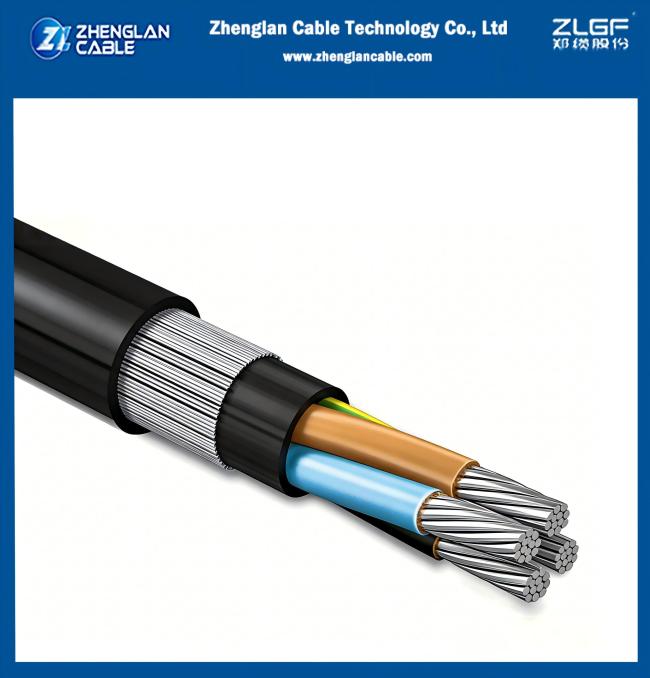

0.6/1kv 4 core Aluminum Steel wire Armored Power Cable AL/XLPE/PVC/SWA/PVC 4x25mm2 IEC60502-1
Price:
Negotiable
MOQ:
500 meters
Delivery Time:
7-10 working days
Brand:
Zhenglan cable
Product Description
4 Core Steel Wire Armoured SWA Cable Application
4 Core Steel Wire Armoured SWA Cable made up of a black PVC sheath, XLPE insulation, copper conductors and steel wire armouring. This type of cable is designed for mains electricity in various applications, including laying underground, power networks, incoming mains to homes amongst a host of other uses externally and internally.
4 Core Steel Wire Armoured SWA Cable is suitable and often used for direct burial, with the steel wire armouring providing further protection from external damaged. The XLPE insulation is resistant to a number of different fluids, chemicals and has good heat stability, as well as being UV Resistant.
PARAMETER :
25mm 4 Core Steel Wire Armoured SWA Cable Parameter
| Approx overall diameter (approximate size) | 26.1mm |
| Approx weight per meter | 1.9 Kg |
| Armour / Protection | SWA |
| Bedding | PVC (Polyvinyl-Chloride) |
| BS Number | BS5467 |
| Colour | Black |
| Conductors | Plain annealed stranded copper |
| Core identification | 4 core (Brown, Black, Grey and Blue) |
| Current Rating | 124A |
| Insulation | XLPE (Cross linked polyethylene) |
| Sheath / Jacket | PVC (Polyvinyl-Chloride) |
| Standard | BS5467: Electric cables. Thermosetting insulated, armoured cables for voltages of 600/1000V and 1900/3300V |
| Voltage | 600 / 1000V |
|
0.6/1.0kV AL/XLPE/PVC/Steel Wire Armoured/PVC power cable |
||||
|
Cable section |
Nominal thickness insulation (mm) |
Nominal thickness of sheath (mm) |
Approx overall diameter (mm) |
Max. DC-resist conductor 20℃ (Ω/km) |
|
4x25mm2 |
1.2 |
1.9 |
27.8 |
1.2 |
Packaging
Manufacturer Information
Zhenglan Cable Technology Co., Ltd is a professional cable and wire manufacturer with over 20 years of experience. Our 60,000 square meter factory is located in Wuzhi County, Jiaozuo City, Henan Province, China.
Product Range
- Overhead transmission line bare conductors (ACSR, AAC, AAAC)
- 1-35kV overhead transmission line insulated conductors
- 0.6/1kV, 1.8/3kV PVC/XLPE/PE insulated LV power cables
- 3.6/6kV to 26/35kV XLPE insulated MV power cables
- 300/300V to 450/750V control cables and house wires
Frequently Asked Questions
Is your company a factory or a trade company?
We are a factory with more than 20 years of manufacturing experience in China.
How long can I expect to get the sample?
Samples are ready for delivery in 3-7 days after payment confirmation. Delivery takes 3-7 days via express service.
What are your payment terms?
Standard terms: T/T 30% deposit, 70% balance before delivery. Trade assurance and other payment methods available.
What's the delivery time?
Sample orders: 3-5 days. Formal orders: 7-30 days after payment, depending on quantity.
What is your MOQ?
Minimum order quantity is typically 500 meters.
