Single Core AWA Armored Power Cable NA2X(S)Y 12/20KV IEC60502-2

Price Negotiable

Price: Negotiable

MOQ: 1000m

Delivery Time: 15 days (depends quantity needed)

Brand: Zhenglan Cable

Product Description

NA2X(S)Y 12/20KV single core AWA armored power cable IEC60502-2

APPLICATIONS:

NA2X(S)Y 12/20KV single core AWA armored power cable IEC60502-2 are for distribution networks, for connection to generation units and plant and process connection. To be laid directly in ground, outdoors, indoors and in cable ducts.

STANDARD:

GB/T12706.2, equivalent to IEC60502.2. Or BS, DIN, ICEA standard as customer request.

Noted: Single Core Cables to BS 6622/BS 7835/IEC 60502/VDE 0276

Cable Construction

Construction:

1 conductor: stranded (RM) aluminium wires

2 conductor screen: semi-conducting material

3 insulation: cross-linked polyethylene

4 outer layer insulation screen: semi-conducting material

5 Metallic screen: copper wire plus copper tape

6 Inner bedding: PVC

7. Armor: aluminum wire screen:

8. Wrapping tape: non woven fabric

9.Outer sheath: polyvinylchloride (PVC)

Operating characteristics

Rated power-frepuency voltage U0/U: 3.6/6kv~26/35kv.

Max.admissible operating temperature of the conductor:90ºC.

Max. short-circurt temperature of conductor shall not exceed 2500C. (5s maximum duration)

The bending radius of a single-core cable should not less than 20 times of the cable diameter.

The bending radius of a multi-core cable should not less than 15 times of the cable diameter.

NA2X(S)Y 12/20KV single core AWA armored power cable IEC60502-2 Parameters:

Nom. Cross- Section Area	Nom. Insulation Thickness	Copper Tape Thickness	Copper Wire Screen Area*	Nom. Bedding Thickness	Armour Aluminium Wire Size	Nom. Sheath Thickness	Approx. Overall Diameter	Weight
Nom. Cross- Section Area								AL
mm²	mm	mm	mm²	mm	mm	mm	mm	kg/km
25	5.5	0.1	16	1.2	1.6	1.8	29	980
35	5.5	0.1	16	1.2	1.6	1.9	30	1070
50	5.5	0.1	16	1.2	2	2	33	1250
70	5.5	0.1	16	1.2	2	2.1	35	1420
95	5.5	0.1	16	1.2	2	2.1	37	1570
120	5.5	0.1	16	1.2	2	2.2	38	1730

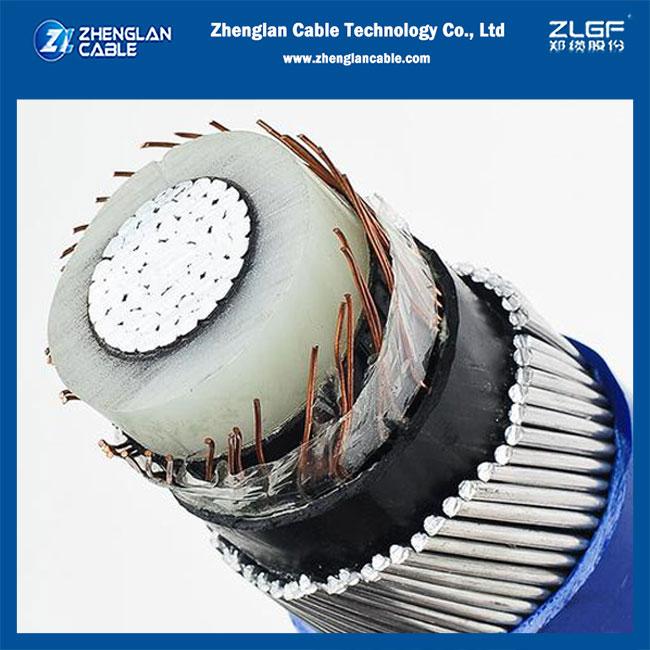

NA2X(S)Y 12/20KV single core AWA armored power cable IEC60502-2 images
