6/10kV NA2XSY N2XSY XLPE Insulated Single-Core Cable with PVC Outer Sheath Standard DIN VDE0276-620
Product Description:
Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE-material, firmly longitudinally spliced with conductor screen and insulation screen of semi-conductive material (extruded in one process), the cable has a high operating reliability. Used in transformer stations, electric power plants and industrial plants.
Features:
- Product Name: Medium Voltage Power Cables
- Number Of Cores: 1-3
- Size: 25~630mm2
- Conductor: Copper/Aluminum
- Nominal voltage: 6/10 (12) kV
- Insulation:XLPE
- Screen: Copper wires
- Outer sheath:PVC
Technical Parameters:
| Test voltage | 6 / 10 kV | [kV] | 21 / 5 min. |
| Temperature range | in motion | -5°C till +70°C | |
| fixed | -20°C till +70°C | ||
| Operating temperature | short circuit | °C | 250 |
| Short circuit time | max. | [sec] | 5 |
| Bending radius | min. | x diameter | 15 |
| Flammability | standard | EN 60332-1-2 |
| No. of cores and nominal cross section | Thickness of Insulation | Cross section of Screen | Thickness of | Approx. | Approx. weight | Max. DC resistance of conductor(20℃) | Current carrying capacity | |
| Sheath | overall Diameter | |||||||
| (mm2) | (mm) | (mm2) | (mm) | (mm) | (kg/km) | (Ω/km) | In Air | In Ground |
| (A) | (A) | |||||||
| YJLSV (NA2XSY)- 6/10kV | ||||||||
| 1x25/16 | 3.4 | 16 | 1.8 | 21.8 | 568 | 1.2 | 120 | 115 |
| 1x35/16 | 3.4 | 16 | 1.8 | 22.9 | 619 | 0.868 | 153 | 145 |
| 1x50/16 | 3.4 | 16 | 1.8 | 24 | 684 | 0.641 | 183 | 171 |
| 1x70/16 | 3.4 | 16 | 1.8 | 25.7 | 782 | 0.443 | 228 | 208 |
| 1x95/16 | 3.4 | 16 | 1.8 | 27.2 | 891 | 0.32 | 278 | 248 |
| 1x120/16 | 3.4 | 16 | 1.8 | 28.7 | 992 | 0.253 | 321 | 283 |
| 1x150/25 | 3.4 | 25 | 1.8 | 30.2 | 1184 | 0.206 | 364 | 315 |
| 1x185/25 | 3.4 | 25 | 1.9 | 32 | 1340 | 0.164 | 418 | 357 |
| 1x240/25 | 3.4 | 25 | 2 | 34.7 | 1560 | 0.125 | 494 | 413 |
| 1x300/25 | 3.4 | 25 | 2.1 | 36.9 | 1790 | 0.1 | 568 | 466 |
| 1x400/35 | 3.4 | 35 | 2.2 | 40.2 | 2200 | 0.0778 | 660 | 529 |
| 1x500/35 | 3.4 | 35 | 2.3 | 44.1 | 2590 | 0.0605 | 767 | 602 |

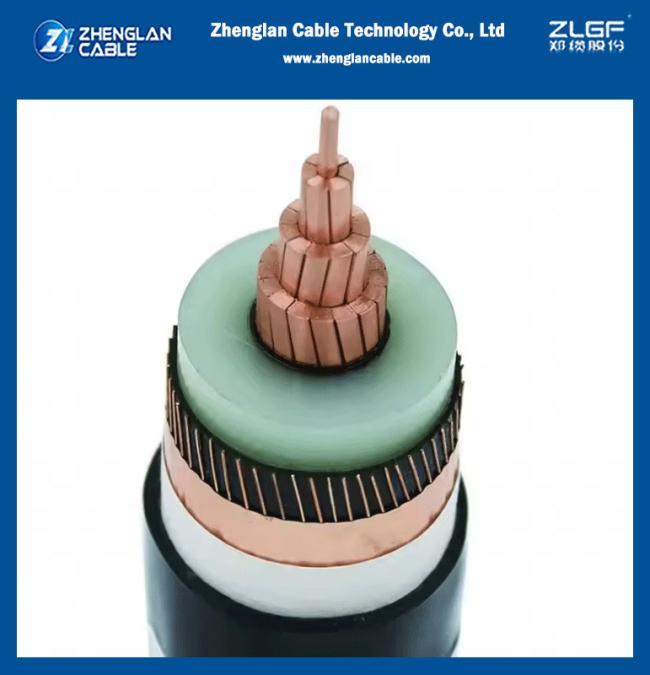

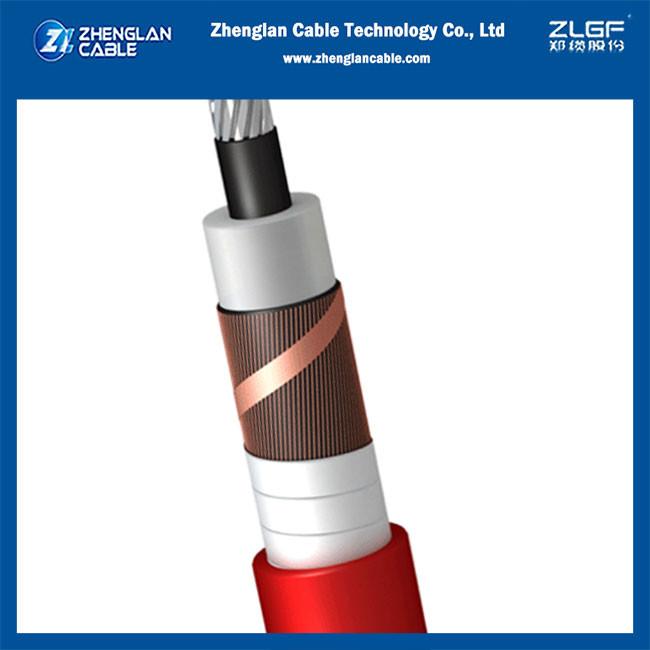

Image:
Support and Services:
The Medium Voltage Power Cables product technical support and services include:
- Assistance with cable selection and specification
- Installation and commissioning support
- Troubleshooting and fault analysis
- Maintenance and repair services
- Consultancy services for system design and integration
Packing and Shipping:
Product Packaging:
- The medium voltage power cables will be packed in strong and sturdy wooden reels to ensure safe transportation.
- The reels will be wrapped with shrink wrap to protect the cables from dust, moisture, and other external factors.
- The cables will be labeled with all necessary information including product name, size, length, and quantity.
Shipping:
- Shipping will be arranged by our team and will be delivered by a reliable and trusted shipping carrier.
- The medium voltage power cables will be loaded onto a flatbed truck and secured properly to prevent any damage during transit.
- Customers will be provided with a tracking number to monitor the shipment and ensure on-time delivery.
