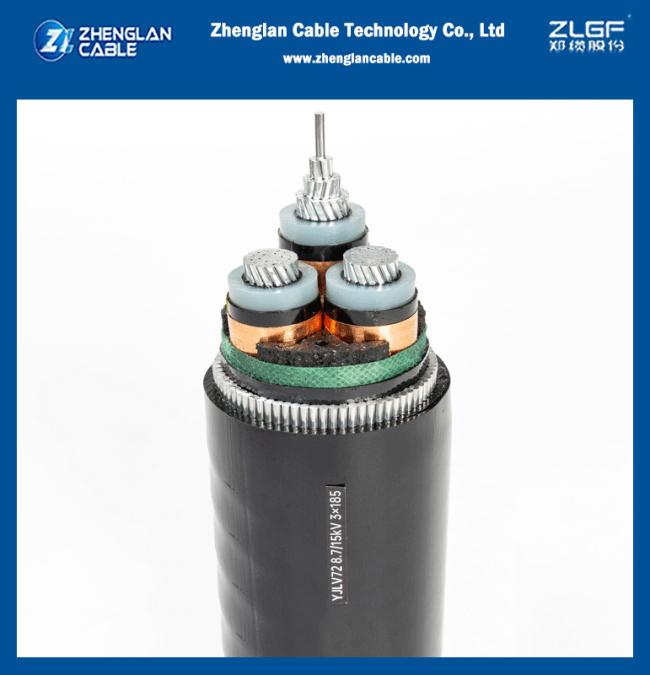

8.7/15(17.5) kV NA2XSY N2XSY XLPE Insulated Single / Three-Core with PVC Outer Sheath Standard SPLN 43-5/IEC 60502-2
Product Description:
Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE-material, firmly longitudinally spliced with conductor screen and insulation screen of semi-conductive material (extruded in one process), the cable has a high operating reliability. Used in transformer stations, electric power plants and industrial plants.
Features:
- Product Name: Medium Voltage Power Cables
- Number Of Cores: 1-3
- Size: 25~630mm2
- Conductor: Copper/Aluminum
- Nominal voltage: 8.7/15 (17.5) kV
- Insulation:XLPE
- Screen: Copper wires/Copper tape
- Armouring: Single Core: AWA (Aluminium Wire Armour)
Multi Core: SWA (Steel Wire Armour) STA (Steel Tape Armour) - Outer sheath:PVC
Technical Parameters:
Image:
Support and Services:
The Medium Voltage Power Cables product technical support and services include:
- Assistance with cable selection and specification
- Installation and commissioning support
- Troubleshooting and fault analysis
- Maintenance and repair services
- Consultancy services for system design and integration
Packing and Shipping:
Product Packaging:

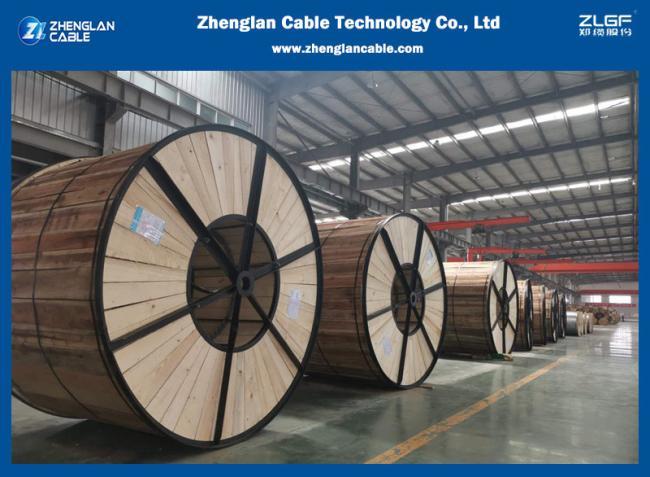

- The medium voltage power cables will be packed in strong and sturdy wooden reels to ensure safe transportation.
- The reels will be wrapped with shrink wrap to protect the cables from dust, moisture, and other external factors.
- The cables will be labeled with all necessary information including product name, size, length, and quantity.
Shipping:
- Shipping will be arranged by our team and will be delivered by a reliable and trusted shipping carrier.
- The medium voltage power cables will be loaded onto a flatbed truck and secured properly to prevent any damage during transit.
- Customers will be provided with a tracking number to monitor the shipment and ensure on-time delivery.
About Zhenglan Cable Technology Co., Ltd
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
RFQ:
1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
4. What’s the delivery time?
Sample order needs 3~5 days.
Formal order depends on the quantity, usually it needs 15 working days after get your payment.
5. What is your MOQ?
Generally it is 1000m.
