N2XSY N2XSEY Single / Three-Core XLPE Insulation Power Cable with Metalic Shield PVC Outer Sheath Standard DIN VDE0276-620
Product Description:
Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. These cables are commonly used for underground power distribution in networks where three-phase power is required. They are suitable for both direct burial and installation in ducts.
Cable Construction
- Circular bare aluminum-conductor of stranded wires to HD 383
- Inner semi-conducting coating
- Conductor insulation of cross-linked Polyethylene (XLPE), PE-compound DIX8 to HD 620.1
- Outer extrusion of semi-conducting coating spliced with the insulation
- Wrapping of conductive material
- Shield: Braiding of copper wires with one or two tapes applied helically
- Wrapping
- PVC outer jacket, compound DMV6 to HD 620.1
- Jacket color: Red
Technical Parameters:
| Test voltage | 6 / 10 kV | [kV] | 21 / 5 min. |
| Temperature range | in motion | -5°C till +70°C | |
| fixed | -20°C till +70°C | ||
| Operating temperature | short circuit | °C | 250 |
| Short circuit time | max. | [sec] | 5 |
| Bending radius | min. | x diameter | 15 |
| Flammability | standard | EN 60332-1-2 |
| Cross-section | Conductor diameter | Insul. thickness | Diameter over insul. | Sheath thickness | Cable diam. | Cable weight Cu | Cable weight Al | Min bending radius |
| (nxmm2/mm2) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg/km) | (kg/km) | (mm) |
| 1×35/16 | 7,2 | 3,4 | 16,2 | 2,5 | 23 | 890 | 660 | 340 |
| 1×50/16 | 8,3 | 3,4 | 17,3 | 2,5 | 25 | 1020 | 750 | 370 |
| 1×70/16 | 10,3 | 3,4 | 19,3 | 2,5 | 27 | 1210 | 850 | 400 |
| 1×95/16 | 11,3 | 3,4 | 20,3 | 2,5 | 28 | 1520 | 950 | 420 |
| 1×120/16 | 12,7 | 3,4 | 21,7 | 2,5 | 30 | 1770 | 1060 | 450 |
| 1×150/25 | 14,1 | 3,4 | 23,1 | 2,5 | 32 | 2150 | 1250 | 480 |
| 1×185/25 | 15,7 | 3,4 | 24,7 | 2,5 | 35 | 2570 | 1430 | 520 |
| 1×240/25 | 18,0 | 3,4 | 27,2 | 2,5 | 37 | 3100 | 1600 | 550 |
| 1×300/25 | 20,0 | 3,4 | 29,2 | 2,5 | 39 | 3750 | 1850 | 580 |
| 1×400/35 | 23,8 | 3,4 | 33,2 | 2,5 | 41 | 4750 | 2300 | 610 |
| 1×500/35 | 26,7 | 3,4 | 36,1 | 2,5 | 44 | 5880 | 2550 | 660 |

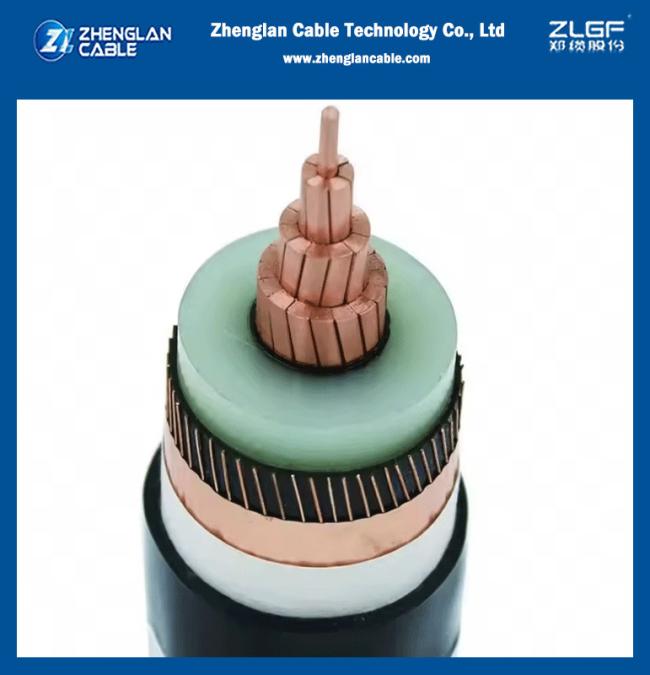

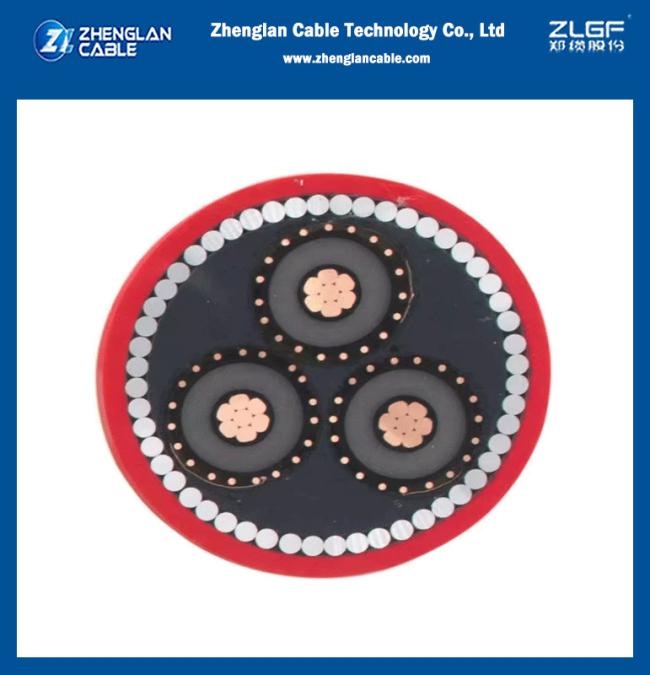

Image:
Support and Services:
The Medium Voltage Power Cables product technical support and services include:
- Assistance with cable selection and specification
- Installation and commissioning support
- Troubleshooting and fault analysis
- Maintenance and repair services
- Consultancy services for system design and integration
Packing and Shipping:
Product Packaging:
- The medium voltage power cables will be packed in strong and sturdy wooden reels to ensure safe transportation.
- The reels will be wrapped with shrink wrap to protect the cables from dust, moisture, and other external factors.
- The cables will be labeled with all necessary information including product name, size, length, and quantity.
Shipping:
- Shipping will be arranged by our team and will be delivered by a reliable and trusted shipping carrier.
- The medium voltage power cables will be loaded onto a flatbed truck and secured properly to prevent any damage during transit.
- Customers will be provided with a tracking number to monitor the shipment and ensure on-time delivery.
