Power Cables Medium Tension Electric Cables 3X240mm2 aluminum conductor IEC 60502-2
Applications
XLPE Insulated Cable is used as power distribution and transmission line at rated voltage 26/35kV.
Construction:
| Conductor | Aluminum Conductor as per IEC 60228,Class 2 |
| Circular or Shaped conductor | |
| Flexible conductor(class 5) optional. | |
| Insulation | XLPE (Cross-Linked Polyethylene) rated at 90℃,many color optional |
| Metallic Screen optional | Copper tape or copper wires braiding optional |
| Sheath | PVC or FR-PVC type ST2 to IEC 60502, black or red or customization |
Technical Parameters:
| Nom. Cross-section of conductor | Strands No./Dia. Of Conductor | Insulation Thickness | Sheath Thickness | Approx. O.D. | Approx. Weight | Max. D.C Resistance of Conductor (20 ℃) | Testing Voltage A.C | Current Rating | |
| mm2 | pc/mm | mm | mm | mm | kg/km | Ω /km | kV/5min | In air (A) | In soil(A) |
| 3 × 240 | 372.56 | 10.5 | 4.4 | 103.0 | 10270 | 0.125 | 91 | 365 | 380 |

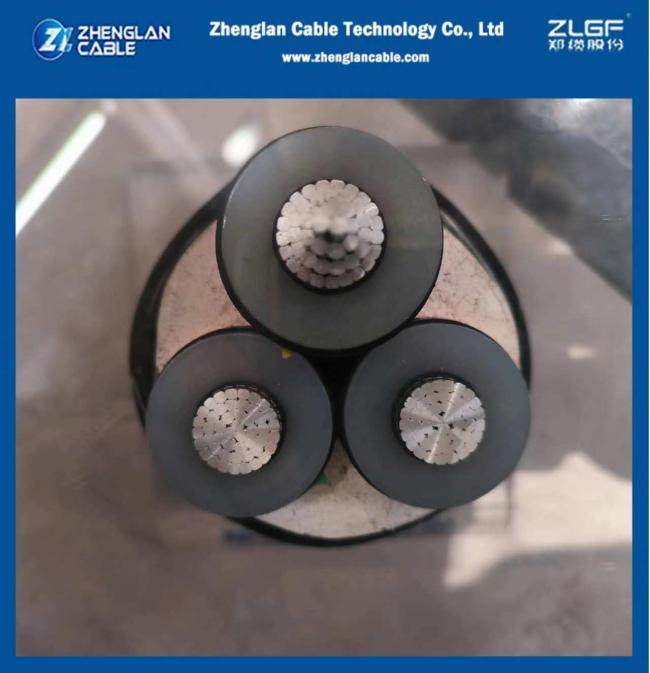

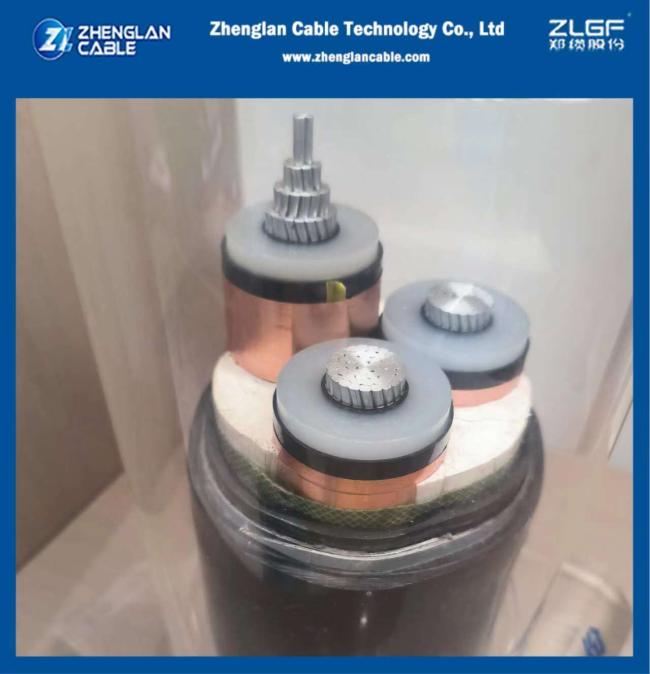

Image:
Packing and Shipping:
Product Packaging:
The medium voltage power cables will be packaged in sturdy wooden reels or drums to ensure safe transportation and storage. The reels or drums will be labeled with the product specifications, including the cable type, length, and voltage rating.
Shipping:
We will ship the medium voltage power cables via a reliable and trusted carrier, ensuring that they reach their destination safely and on time. The shipping cost will be calculated based on the weight and volume of the order and the shipping destination. We will provide our customers with a tracking number so they can monitor the shipment's progress and expected delivery date.
