Medium Voltage XLPE Insulated PVC Or LSZH Sheathed Tape Armoured Copper / Aluminum Cables Underground Distribution
Product Description:
The medium voltage cable is a cable used to distribute electricity from power substations to transformer stations. It has a minimum power rating of 1kV and goes up to 36kV. .
Features:
- Product Name: Medium Voltage Power Cables
- Number Of Cores: 1-3
- Size: 25~630mm2
- Conductor: Copper/Aluminum
- Nominal voltage: 3.6/6～26/35kV
- Insulation: XLPE/PE
- Screen: Copper wires/Copper tape
- Outer sheath: PVC/LSZH/PE
Technical Parameters:
Copper cable
| Sectional Area of Conductor | Nom.ConductorDiameter | Nom.Insulation Thickness | Nom.Diamete Over insulation | Screen Area on cores | No.and Diamter of Screened Wires |
Nom.Diamete Over Screened Wires | Nom.Diamete Over Bedding | Nom.Diamete of Armour | Nom.DiameteOver Armour |
| mm2 | mm | mm | mm | mm2 | no x mm | mm | mm | mm | mm |
| 16 | 4.8 | 3.4 | 12.8 | 17.0 | 10*0.85 | 16.1 | 37.9 | 2 | 41.9 |
| 25 | 5.8 | 3.4 | 13.8 | 25.5 | 15*0.85 | 17.1 | 40.2 | 2.5 | 45.2 |
| 35 | 6.8 | 3.4 | 14.8 | 34.0 | 20*0.85 | 18.1 | 42.6 | 2.5 | 47.6 |
| 50 | 8.0 | 3.4 | 16.0 | 49.4 | 29*0.85 | 19.3 | 45.1 | 2.5 | 50.1 |
| 70 | 9.6 | 3.4 | 17.6 | 68.1 | 40*0.85 | 20.9 | 48.8 | 2.5 | 53.8 |
| 95 | 11.5 | 3.4 | 19.4 | 68.1 | 40*0.85 | 22.7 | 53.0 | 2.5 | 58.0 |
| 120 | 13.1 | 3.4 | 21.0 | 68.1 | 40*0.85 | 24.3 | 56.4 | 2.5 | 61.4 |
| 150 | 14.5 | 3.4 | 22.4 | 68.1 | 40*0.85 | 25.7 | 59.9 | 2.5 | 64.9 |
| 185 | 16.1 | 3.4 | 24.1 | 68.1 | 40*0.85 | 27.4 | 63.3 | 2.5 | 68.3 |
| 240 | 18.5 | 3.4 | 26.5 | 68.1 | 40*0.85 | 29.8 | 68.8 | 3.15 | 75.1 |
| 300 | 20.7 | 3.4 | 28.9 | 68.1 | 40*0.85 | 32.2 | 74.1 | 3.15 | 80.4 |
| 400 | 23.6 | 3.4 | 31.8 | 68.1 | 40*0.85 | 35.3 | 81.2 | 3.15 | 87.5 |
| 500 | 26.5 | 3.4 | 34.7 | 68.1 | 40*0.85 | 38.2 | 87.6 | 3.15 | 93.9 |

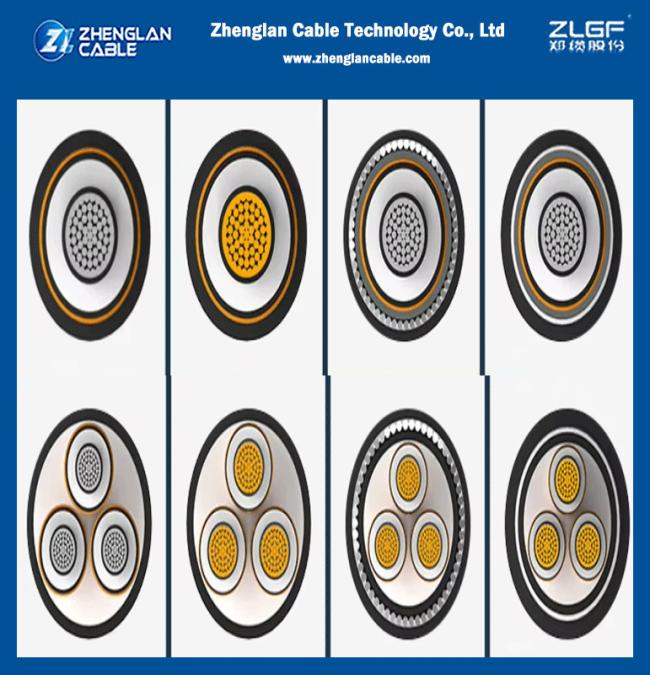

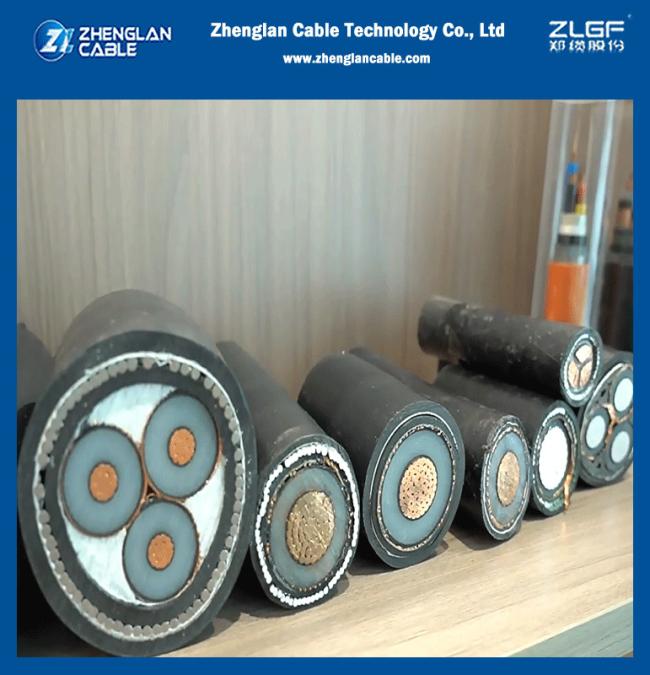

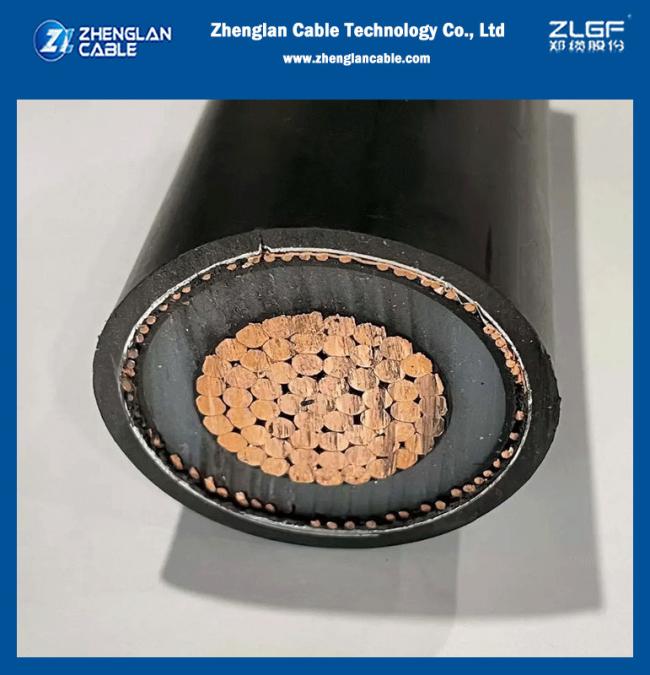

Image:
Support and Services:
Our Medium Voltage Power Cables are designed and manufactured to meet the highest standards of quality, performance, and reliability. Our technical support team is available to assist you with any questions or issues you may encounter with our products.
We offer a range of services to ensure that your Medium Voltage Power Cables operate at peak efficiency, including:
- On-site installation and commissioning
- Regular maintenance and inspections
- 24/7 emergency support
- Training and education for your staff
- Customized solutions and consultation
Our goal is to provide you with the highest level of support and service to ensure that your Medium Voltage Power Cables perform flawlessly and meet your specific needs and requirements.
Packing and Shipping:
Product Packaging:
The Medium Voltage Power Cables are packaged in sturdy wooden reels to ensure safe transportation and storage. Each reel is securely wrapped with plastic and includes a label with product information and handling instructions.
Shipping:
Our company ships Medium Voltage Power Cables worldwide using reliable transportation services. We carefully package each reel to prevent damage during transit and ensure timely delivery. We also provide tracking information and delivery updates to our customers to ensure a smooth and hassle-free shipping experience.
