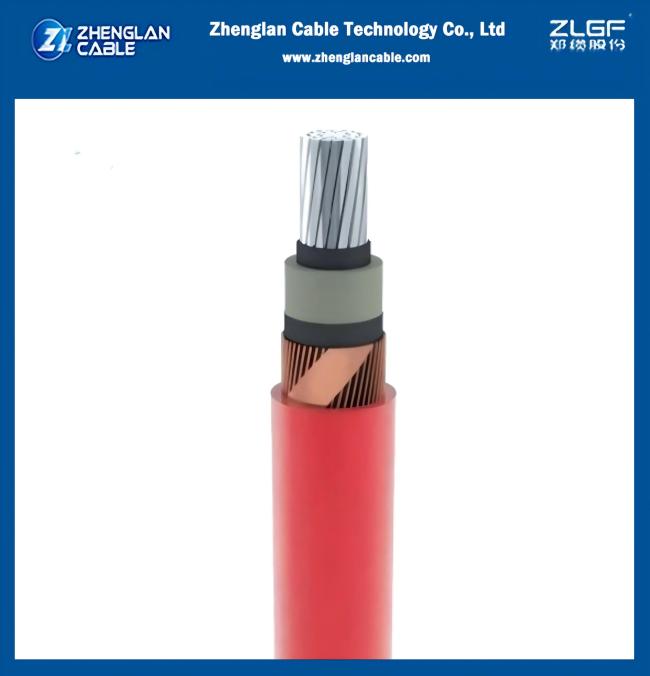

AL/SC/XLPE/SC/CWS/PVC/CTS/PVC1x240/25mm2 IEC 60502-2 8.7/15KV Copper Wire Shield + Copper Tape Shield Sheath Red Medium Voltage Power Cable

Applications

Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in dry areas or in water. PE sheath secures increased mechanical resistance during and after laying. Swellable tape blocks water spreading within the cable. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE-material, firmly longitudinally spliced with inner and external screen of semi-conductive material (extruded in one process), the cable has a high operating reliability. Used in transformer stations, switching blocks, in electric power plants and industrial plants.

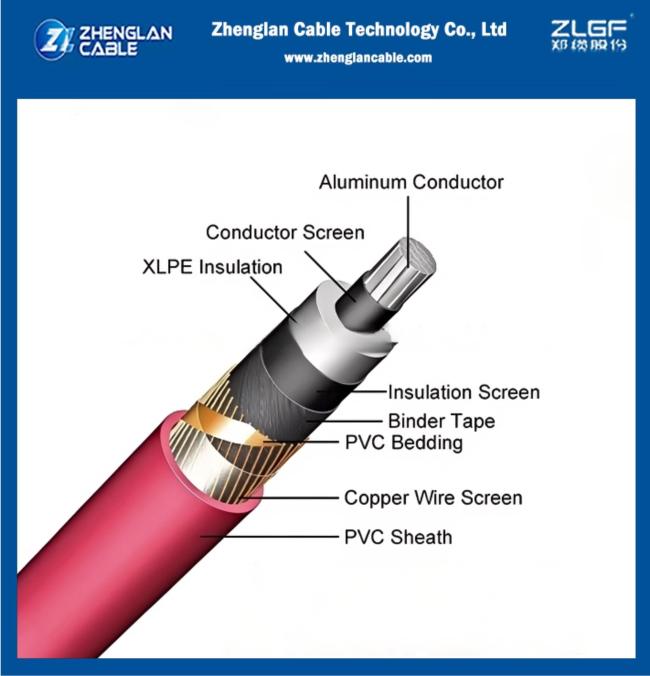

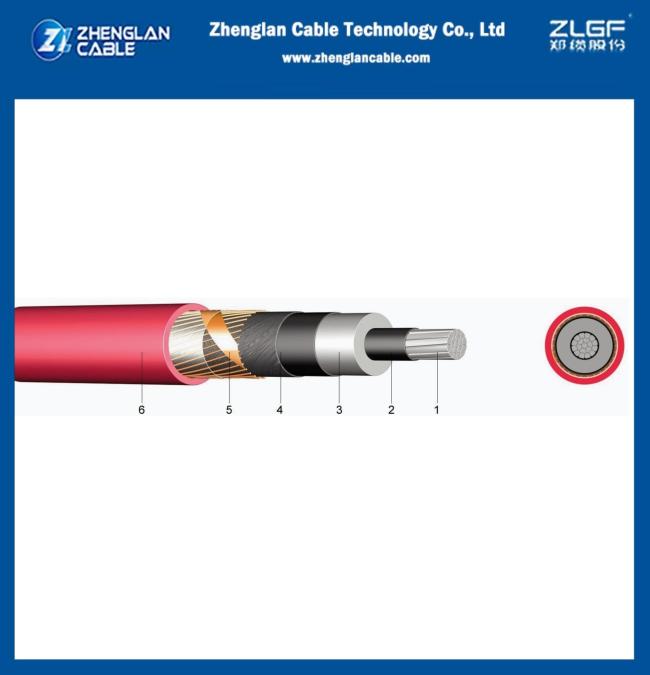

Construction:

1 ..... stranded (RM) aluminium wires
2 ..... inner layer of semi-conducting material
3 ..... core insulation of cross-linked polyethylene
4 ..... outer layer of semi-conducting material
5 ..... screen of copper wires+copper tape
6 ..... outer sheath of polyvinylchloride (PVC), red

Technical Data sheet

Why Choose Zhenglan Cable:

Medium voltage cables are manufactured using the monosil process. We provide the highly specialized plant, state-of-the-art research facilities and meticulous quality control procedures that are required for the manufacturing of PVC insulated cables for use up to 6KV and XLPE/EPR insulated cables for use at voltages up to 35 KV. The materials are all kept in cleanliness-controlled conditions throughout the production process in order to ensure the absolute homogeneity of the finished insulation materials.

• OEM/ODM services provided;
• Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
• Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
• Registered capital of $30 million and factory covers an area of 60,000㎡;
• Advanced test equipment and procedures, 100% inspection before factory;
• Enough stocks and the higest efficient shipping time guarranteed;
• Professional pre-sales and after-sales services provided.
