12/20KV CU/SC/XLPE/SC/CTS/AWA/PVC 1x150mm2 Single Core Medinum Voltage Armored Power Cable
12/20KV CU/SC/XLPE/SC/CTS/AWA/PVC 1x150mm2 Single core Medinum Voltage Armored Power Cable
APPLICATIONS:
12/20KV CU/SC/XLPE/SC/CTS/AWA/PVC 1x150mm2 Single core Medinum Voltage Armored Power Cable are with low dielectric losses used in energy networks with sudden load changes where mechanical stresses expected. Laid in residential or industrial areas, underground or in ducts.
STANDARD:
GB/12706.2, IEC60502-2,BS 6622 , VDE 0276, HD 620 S1,NFC 33-226, IS 1554 , IS 7098 and ICEA S-66-524 etc.
Cable Construction
1) Conductor: Copper Class 2: stranded conductor
2) Conductor screen: Non-metallic, semi-conducting compound
3) Insulation: Cross-linked polyethylene XLPE
4) Insulation screen: Non-metallic, semi-conducting compound
5) Metallic screen: copper tape
6) Inner sheath: PVC
7) Armor: Aluminum wire
8) Outer sheath: Polyvinyl chloride PVC
12/20KV CU/SC/XLPE/SC/CTS/AWA/PVC 1x150mm2 Single core Medinum Voltage Armored Power Cable Parameter
| Nom. Cross- Section Area | Aluminium Wire Armoured Cables | ||||||
| Nom. Insulation Thickness | Copper Tape Thickness | Nom. Bedding Thickness | Armour Wire Size | Nom. Sheath Thickness | Approx. Overall Diameter | Approximate weight | |
| mm² | mm | mm | mm | mm | mm | mm | kg/km |
| 150 | 5.5 | 0.12 | 1.2 | 2.0 | 2.2 | 38 | 2610 |

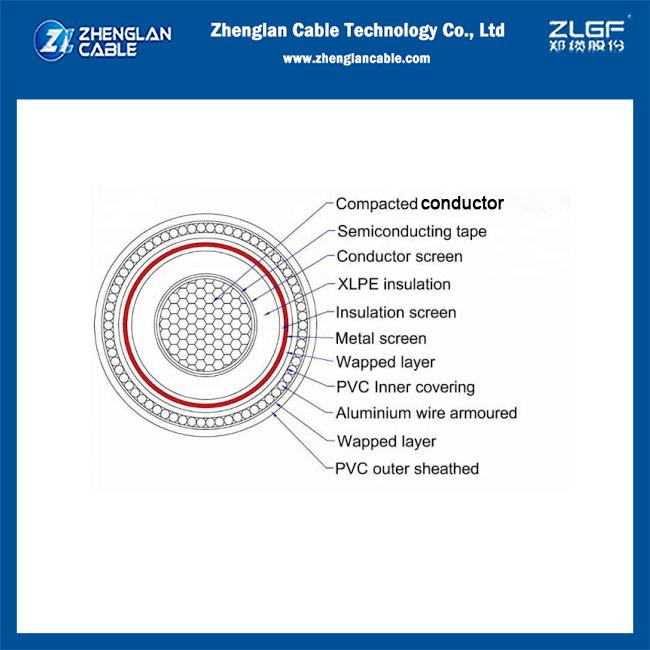

12/20KV CU/SC/XLPE/SC/CTS/AWA/PVC 1x150mm2 Single core Medinum Voltage Armored Power Cable Drawing

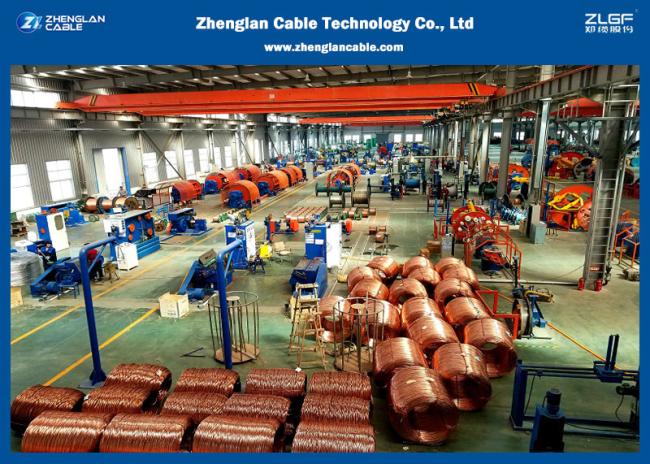

Factory show
- overhead power transmission use bare conductor(ACSR, AAC, etc)
- 1kv, 10kv, 35kv overhead power transmission use insulated conductor(single core covered cable, ABC cable)
- STA/SWA armored or unarmored PVC/XLPE/PE insulated LV(low voltage) power cable
- STA/SWA armored or unarmored XLPE insulated MV(medium voltage)power cable
- 450/750V instrument use control cable (shielded or unshielded)
- 300/300V, 300/500V, 450/750V fixed installation use building wire
