Aluminum power cable Medium voltage cable 8.7/15kv AL/XLPE/CTS/PVC/STA/PVC 3x70mm2 IEC 60502-2
Application
Medium voltage single core cable is suitable for use in power networks, in fixed installation outdoors in cable ducts or directly in the ground. Cable operational stability is enhanced because of very low dielectric loss factor, excellent insulation property of XLPE and firm bonding with conductor screen and insulation screen of semi-conductive material (extruded in one process), which makes it widely used in transformer stations, electric power plants and industrial plants.

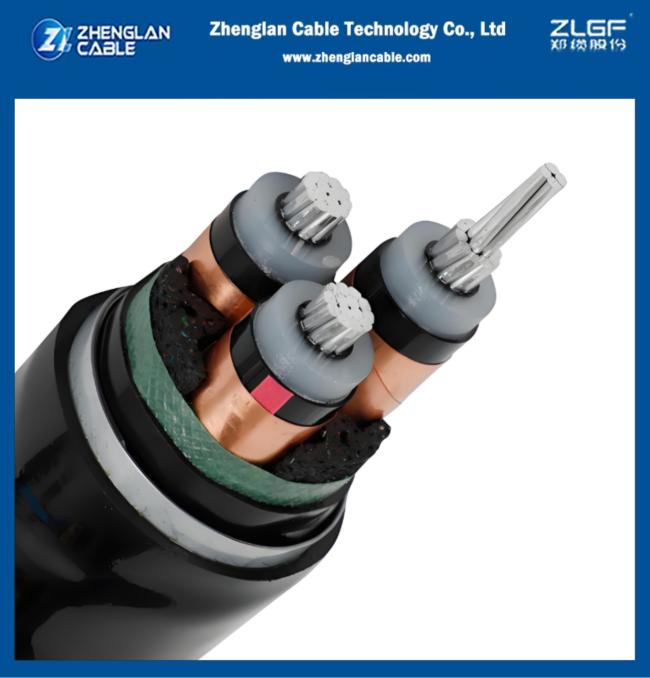

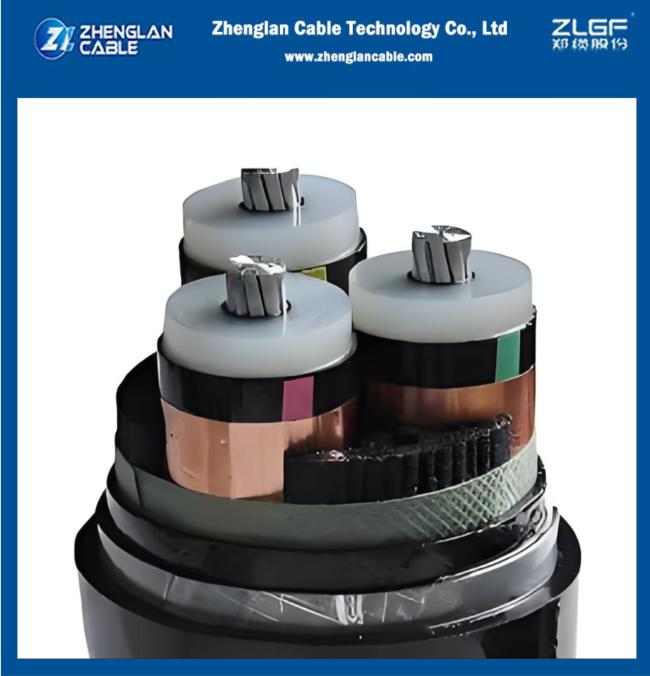

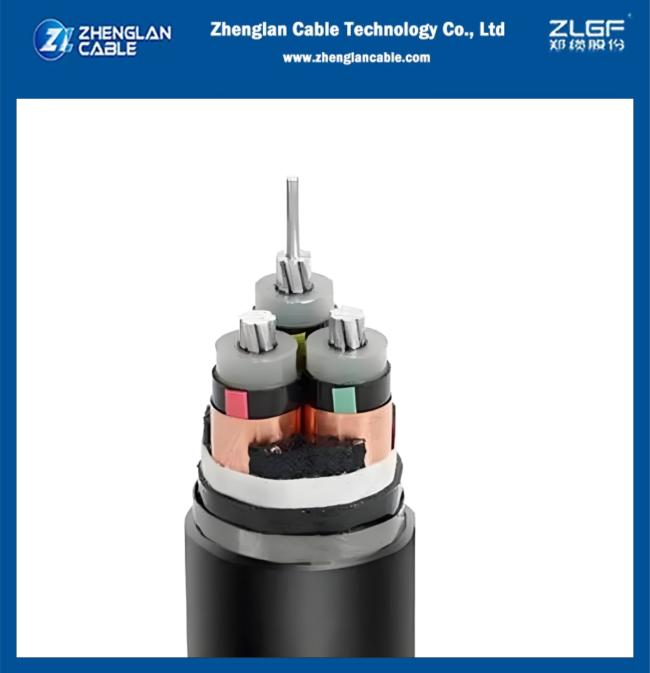

Construction
1)Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2)Conductor screen: Non-metallic, semi-conducting compound
3)Insulation: Cross-linked polyethylene XLPE
4)Insulation screen: Non-metallic, semi-conducting compound
5)Metallic screen: Copper tape
6)Filler: Non-hygroscopic material
7)Binder tape: Non-hygroscopic material
8)Inner covering: Polyvinyl chloride PVC
9)Armour: Steel tape armour
10)Outer sheath: Polyvinyl chloride PVC
| No. of cores and nominal cross section | Thickness of insulation | Thickness of steel tape | Thickness of sheath | Approx. overall diameter | Approx. weight | Max. DC resistance of conductor(20℃) | Current carrying capacity | ||
| (mm2) | (mm) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | In air (A) | In ground (A) | |
| YJLV22 (NA2XSEBY)) - 8.7/15kV | |||||||||
| 3X70 | 4.5 | 0.5 | 2.8 | 59.1 | 3964 | 0.443 | 170 | 185 | |
