Unarmored MV aluminum power cable NA2XS(F)2Y 1x120mm2 12/20KV IEC60502-2
Price:
USD 1- USD 200
MOQ:
3000 meters
Delivery Time:
7-10 Working Days
Brand:
Zhenglan cable
Product Description
MV power cable NA2XS(F)2Y 1x120mm2 12/20KV IEC60502-2
Product Description
MV power cable NA2XS(F)2Y 1x120mm2 12/20KV IEC60502-2 Typically installed for utility grids, indoors and in cable ducts, outdoors, in the ground and underwater, as well as on racks for industrial installations, switchgear, and power plants. The durable PE sheath can withstand significant mechanical stress during installation and operation. The inner conductive layer between the conductor and the XLPE insulation, and the firmly bonded outer conductive layer on the XLPE insulation, ensure a partial discharge-free structure with high operational reliability.

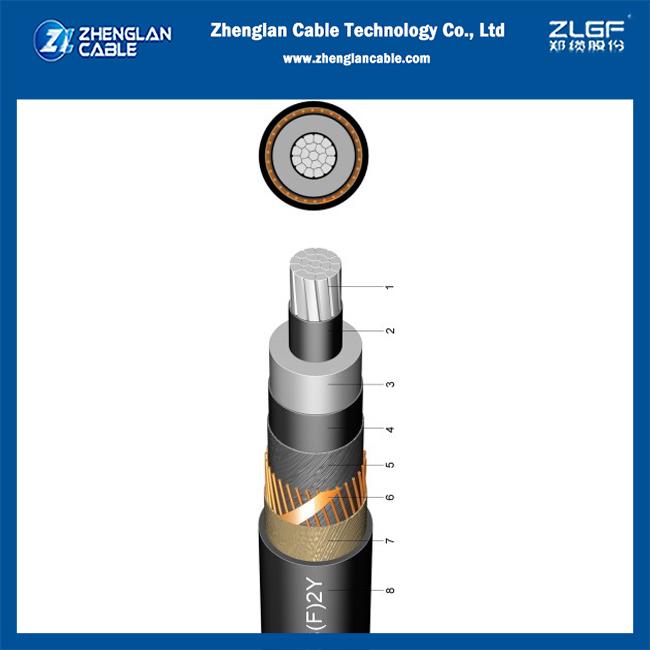

Construction
- Conductor: Copper or aluminum, Class 2: stranded conductor; Minimum size: 25mm²
- Conductor screen: Non-metallic, semi-conducting compound
- Insulation: Cross-linked polyethylene (XLPE)
- Insulation screen: Non-metallic, semi-conducting compound
- Water prevention layer: swellable water prevention tape
- Metallic screen: Copper wire and copper tape or copper tape only
- Water prevention layer: swellable water prevention tape
- Outer sheath: Polyvinyl chloride PE; PVC, LSZH/LSOH available
Technical Data Sheet
| Nom. Cross- Section Area | Nom. Insulation Thickness | Copper Tape Thickness | Copper Wire Screen Area* | Unarmoured Cables | ||
| Nom. Sheath Thickness | Approx. Overall Diameter | Approximate weight | ||||
| AL | ||||||
| mm² | mm | mm | mm² | mm | mm | kg/km |
| 120 | 5.5 | 0.1 | 16 | 2 | 31 | 1050 |
MV power cable NA2XS(F)2Y 1x120mm2 12/20KV IEC60502-2 reference images
Why Choose Zhenglan Cable
Our medium voltage cables are manufactured using the monosil process with specialized equipment, state-of-the-art research facilities, and rigorous quality control. We maintain cleanliness-controlled conditions throughout production to ensure absolute homogeneity of insulation materials.
- OEM/ODM services available
- Compliance with GB, IEC, BS, ASTM, DIN, VDE, JIS standards; custom standards accepted
- Certified to ISO 9001:2015, ISO 14001:2015, and OHSAS 18001:2007
- $30 million registered capital with 60,000㎡ factory area
- Advanced test equipment with 100% inspection before shipment
- Ample stock inventory with guaranteed efficient shipping
- Professional pre-sales and after-sales services
