20.8/36kV Single Core XLPE Insulated Aluminum cable for underground use 1x95/16mm2 NA2X(F)2Y
Price:
USD 1- USD 200
MOQ:
3000 meters
Delivery Time:
7-10 Working Days
Brand:
Zhenglan cable
Product Description
20.8/36kV Single Core XLPE Insulated Aluminum cable for underground use 1x95/16mm2
The cables are suitable for permanent installation indoors, outdoors, in the ground, and in cable ducts.
This product may only be installed by a qualified electrician. The product was developed in accordance with recognized standards. The applicable installation regulations must be applied.
Construction
- Conductor: Copper or aluminum, Class 2: stranded conductor
- Conductor screen: Non-metallic, semi-conducting compound
- Insulation: Cross-linked polyethylene (XLPE)
- Insulation screen: Non-metallic, semi-conducting compound
- Water prevention layer: swellable water prevention tape
- Metallic screen: Copper wire and copper tape or copper tape only
- Water prevention layer: swellable water prevention tape
- Outer sheath: Polyvinyl chloride PE
Technical Specifications
| Nom. Cross-Section Area | Nom. Insulation Thickness | Copper Tape Thickness | Copper Wire Screen Area* | Conductor material |
|---|---|---|---|---|
| 95mm² | 9.3mm | 0.1 mm | 16 mm² | aluminum |
| Nom. Sheath Thickness | Approx. Overall Diameter | Approximate Weight |
|---|---|---|
| 2.1 mm | 40.5 mm | 1535 kg/km |

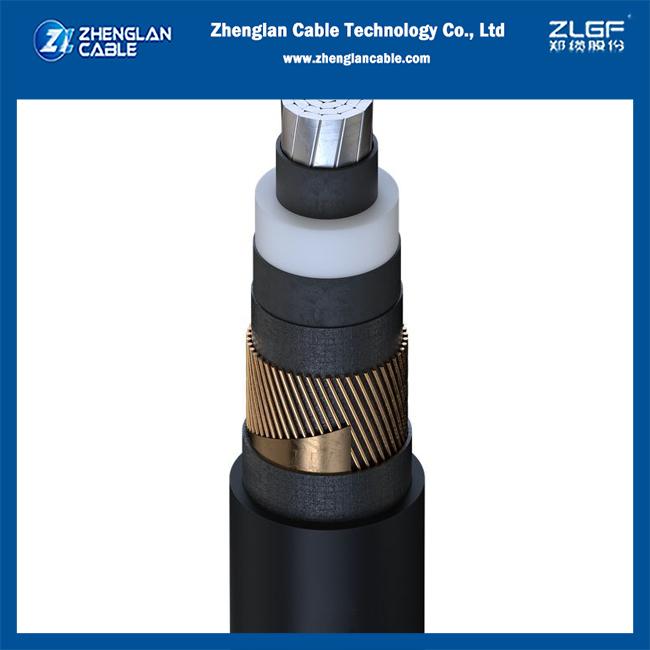

Product Image
Why Choose Zhenglan Cable
Our medium voltage cables are manufactured using the monosil process with specialized equipment, state-of-the-art research facilities, and rigorous quality control. We maintain cleanliness-controlled conditions throughout production to ensure absolute homogeneity of insulation materials.
- OEM/ODM services available
- Compliance with GB, IEC, BS, ASTM, DIN, VDE, JIS standards; custom standards accepted
- Certified to ISO 9001:2015, ISO 14001:2015, and OHSAS 18001:2007
- $30 million registered capital with 60,000㎡ factory area
- Advanced test equipment with 100% inspection before shipment
- Ample stock inventory with guaranteed efficient shipping
- Professional pre-sales and after-sales services
