19/33kv Medium Voltage Power Cable AWA Armored Cable 1x240mm2 CU/SC/XLPE/SC/CWS/PVC/AWA/PVC IEC 60502-2

Application:

Suitable for installations indoors: mostly in power supply stations and outdoors: in cable ducts, underground, and on cable trays for industries, switch-boards and power stations. Due to the good laying and mechanical characteristics, this cable is suitable when mechanical protection is required or in applications where mechanical damages are expected to occur.

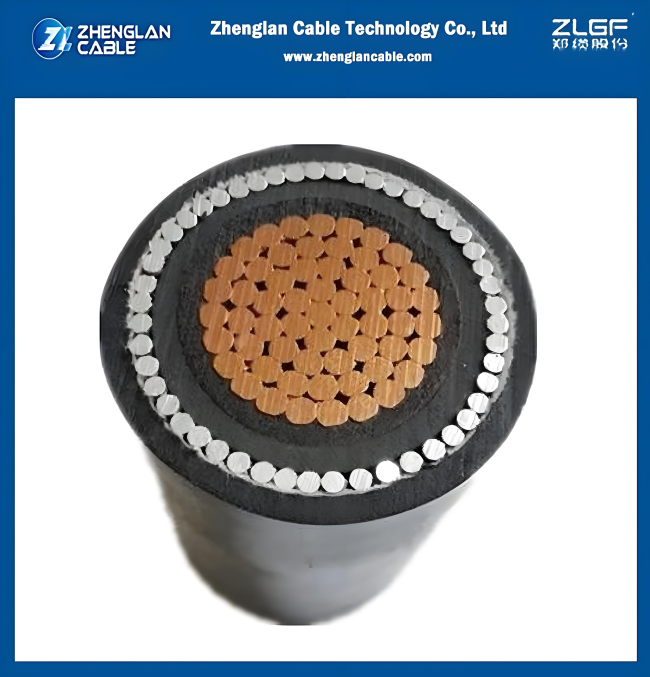

Cable Construction:

·Conductor
Plain annealed stranded circular compacted copper conductor (Class 2)

·Conductor Screen
Extruded layer of a cross-linkable semi-conducting compound as a stress control layer

·Insulation
Extruded layer of cross-linked polyethene (XLPE).

·Insulation Screen
Extruded layer of a cross-linkable semi-conducting compound is firmly bonded to the insulation.

·Metallic Screen
Flat plain copper tape helically applied over the insulation screen with suitable overlap.

·Filler
Non-hygroscopic polypropylene filler suitable for the operating temperature of the cable

·Bedding
Extruded layer of Polyvinyl chloride (PVC).

·Armouring
Single layer of round aluminium wires.

·Outer Sheath
Extruded layer of Polyvinyl chloride (PVC).

Why Choose Zhenglan Cable:

Medium voltage cables are manufactured using the monosil process. We provide the highly specialized plant, state-of-the-art research facilities and meticulous quality control procedures that are required for the manufacturing of PVC insulated cables for use up to 6KV and XLPE/EPR insulated cables for use at voltages up to 35 KV. The materials are all kept in cleanliness-controlled conditions throughout the production process in order to ensure the absolute homogeneity of the finished insulation materials.

• OEM/ODM services provided;
• Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
• Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
• Registered capital of $30 million and factory covers an area of 60,000㎡;
• Advanced test equipment and procedures, 100% inspection before factory;
• Enough stocks and the higest efficient shipping time guarranteed;
• Professional pre-sales and after-sales services provided.
