Copper Xlpe Insulated Cables 630mm2 Pvc Single Core IEC60502-1 Low Voltage
0.6/1(1.2)kv xlpe insulated copper cable cu/xlpe/pvc single core copper power cable IEC60502-1
Application:
Construction:
Conductors: solid copper or bare stranded copper as per IEC 60228
Insulation: XLPE material and thickness shall be as per IEC 60502 90°C continuous operation.
Outer Sheath: Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1.
Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.
Characteristics:
1.The long-term permissible operation temperature of the conductor shall not be higher than 90℃.
2. Conductor maximum short circuit((less than 5 second) temperature shall not be higher than 250℃.
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0℃.
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance.
5. Light weight, perfect bending properties, installed and maintained easily and conveniently.
0.6/1(1.2)kv xlpe insulated copper cable cu/xlpe/pvc single core copper power cable IEC60502-1 Parameters Table:
|
Nominal Cross Sectional area |
Approx Conductor Diameter
|
Nominal Insulation Thickness |
Nominal PVC Sheath Thickness |
Approx Overall Diameter |
Approx Weight of Cable |
| mm² | mm | mm | mm | mm | Kg/Km |
| 1x1.5 | 1.6 | 0.7 | 1.4 | 6.0 | 50 |
| 1x2.5 | 2.0 | 0.7 | 1.4 | 6.5 | 70 |
| 1x4 | 2.25 | 0.7 | 1.4 | 7.0 | 80 |
| 1x6 | 2.76 | 0.7 | 1.4 | 7.5 | 110 |
| 1x10 | 4.0 | 0.7 | 1.4 | 8.5 | 150 |
| 1x16 | 5.0 | 0.7 | 1.4 | 9.5 | 215 |
| 1x25 | 6.3 | 0.9 | 1.4 | 11.5 | 315 |
| 1x35 | 7.4 | 0.9 | 1.4 | 12.0 | 415 |
| 1x50 | 8.8 | 1.0 | 1.4 | 13.0 | 555 |
| 1x70 | 10.6 | 1.1 | 1.4 | 15.0 | 760 |
| 1x95 | 12.4 | 1.1 | 1.5 | 17.0 | 1025 |
| 1x120 | 14.0 | 1.2 | 1.5 | 18.5 | 1270 |
| 1x150 | 15 .5 | 1.4 | 1.6 | 21.5 | 1575 |
| 1x185 | 17.4 | 1.6 | 1.6 | 23.0 | 1955 |
| 1x240 | 20.3 | 1.7 | 1.7 | 26.0 | 2470 |
| 1x300 | 22.7 | 1.8 | 1.8 | 28.0 | 3155 |
| 1x400 | 25.4 | 2.0 | 1.9 | 32.0 | 4049 |
| 1x500 | 28.8 | 2.2 | 2.0 | 36.0 | 5100 |
| 1x630 | 30.4 | 2.4 | 2.2 | 40.0 | 6410 |
0.6/1(1.2)kv xlpe insulated copper cable cu/xlpe/pvc single core copper power cable IEC60502-1 Products show:
Why Choose Zhenglan Cable:
- OEM/ODM services provided
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007

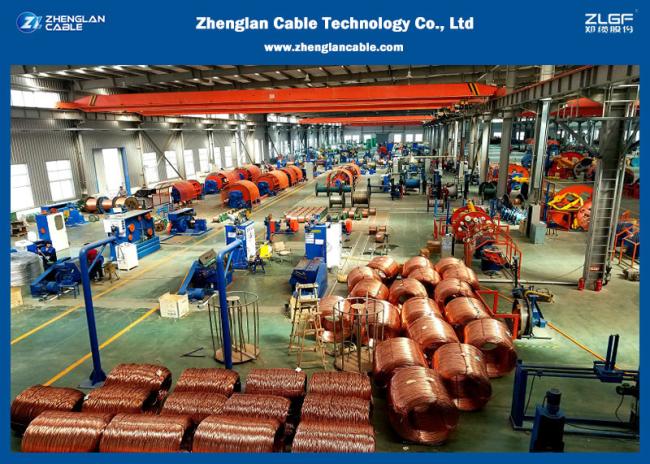

- Registered capital of $30 million and factory covers an area of 60,000㎡
- Advanced test equipment and procedures, 100% inspection before factory
- Enough stocks and the higest efficient shipping time guarranteed
- Professional pre-sales and after-sales services provided
