1KV SWA armored multicore power cable 3x185mm2 N2XRY IEC60502-1

Application:

Construction:
Conductors:Class 2 as per IEC 60228, BS EN 60228 can also be supplied upon request.
Insulation: XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.

Inner sheath: PVC

Armor: galvanized steel wire

Wrapping tape: non-woven fabric

Outer Sheath: Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.

Special type of PVC sheathing material such as flame retardant, Fire Resistant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as PE are available on request.

Characteristics:
1.The long-term permissible operation temperature of the conductor shall not be higher than 70℃.
2. Conductor maximum short circuit((less than 5 second) temperature shall not be higher than 160℃.
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0℃.
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance.

1KV SWA armored multicore power cable 3x185mm2 N2XRY IEC60502-1​​ Parameters Table:

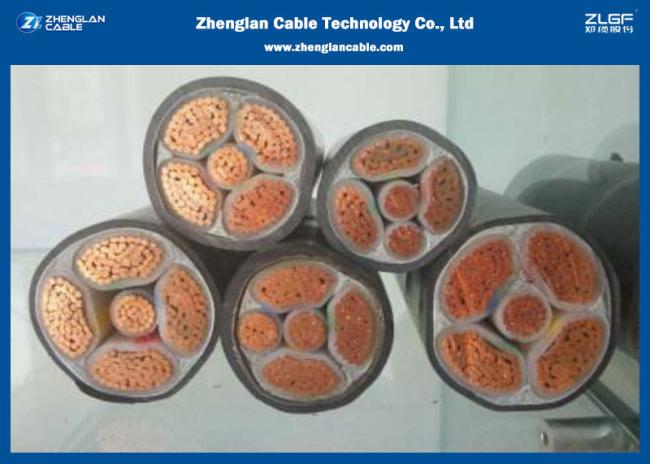

1KV SWA armored multicore power cable 3x185mm2 N2XRY IEC60502-1​ Products show:

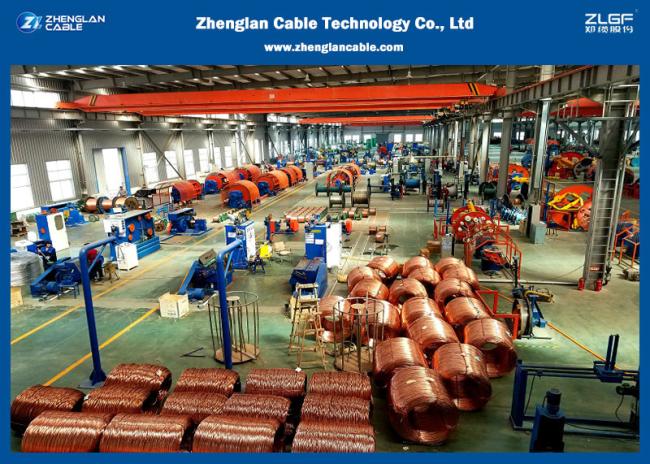

Why Choose Zhenglan Cable:

• OEM/ODM services provided
• Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
• Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
• Registered capital of $30 million and factory covers an area of 60,000㎡
• Advanced test equipment and procedures, 100% inspection before factory
• Enough stocks and the higest efficient shipping time guarranteed
• Professional pre-sales and after-sales services provided
