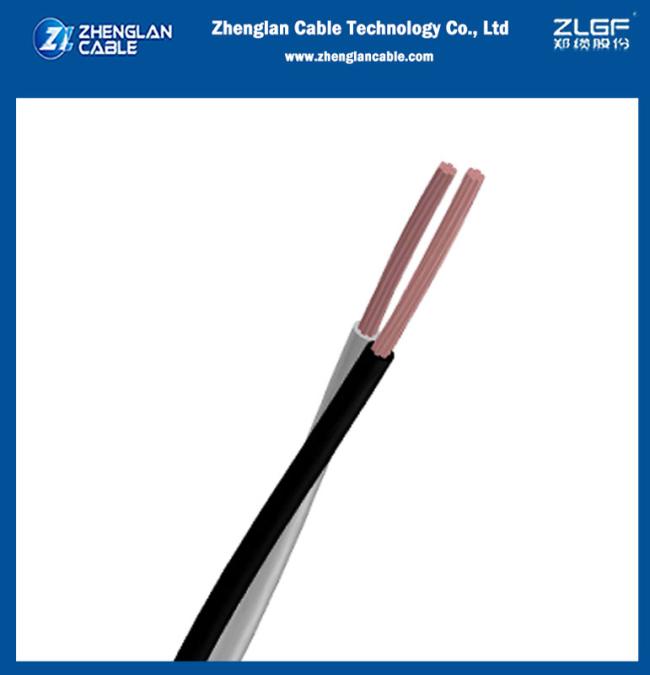

0.6/1KV Low Voltage Copper PVC Insulated Duplex (CV) Power Cables 2 Core for IEC 60228; IEC 60227（CU/PVC）


Power cable, 1 core, compacted copper conductor, XLPE insulated, armoured, PVC sheathed

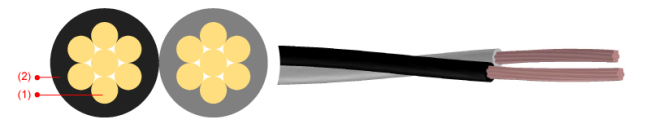

Structure
(1). Conductor: Copper conductor class 2, circular compacted, complied to IEC 60228
(2). Insulation: Cross-linked polyethylen (XLPE), natural color
(3). Inner sheath: Polyvinyl chloride (PVC)
(4). Tape armour: Aluminium wire
(5). Outer sheath: Polyvinyl chloride (PVC)
Color: Black or other colours
Standards
 IEC 60228; IEC 60227 or equivalent
Application
Laid on cable ladder, tray, in duct in a thermal insulated wall, on a wall or spaced from wall, on the dry and closed cable trench in workshops, building, from source to machine or device, in duct in the ground.
Classification
• Rated voltage (Uo/U): 0.6/1kV
• Max. conductor temperature in normal operation: 70ºC
• Max. conductor temperature in short-circuit for 5s max duration: 160ºC
Characteristics
