IEC 60502 Approval N2XH Low Smoke Zero Halogen Power Cable Four Cores XLPE Insulated
Price:
Negotiable
MOQ:
Depends on the cable size
Delivery Time:
15 days
Brand:
Zhenglan cable
Product Description
IEC 60502 Approval N2XH Low Smoke Zero Halogen Power Cable Four Cores XLPE Insulated
Applications
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.
Construction
Conductor : Copper Conductor as per IEC 60228
≤6mm2 solid (class 1)
＞6mm2 stranded (class 2)
≥ 50mm2 Shaped conductoer optional
Insulation : PVC(polyvinyl chloride) rated at 75℃
Sheath : Low smoke zero halogen black or red or customization
Flame retardant: Avaliable as customization
Standards:
Conductor: Compact stranded copper conductor, Cl.2 as per IEC 60228
Mica Tape
Filler
Sheath: LSOH, black or other colors, as per IEC60332,60502-1
Technical data
| Nom. Cross-section of conductor | Insulation Thickness | Sheath | Approx. | Approx | Max. D.C. Resistance of Conductor (20°C) | Test Voltage | Current Rating | |
| mm2 | mm | Thickness | O.D. | Weight | Ω/km | A.C | ||
| mm | mm | kg/km | kV/5min | In air(A) | In soil(A) | |||
| 4×1.5 | 0.7 | 1.8 | 14.4 | 241 | 12.1 | 3.5 | 20 | 27 |
| 4×2.5 | 0.7 | 1.8 | 15.4 | 295 | 7.41 | 3.5 | 26 | 35 |
| 4×4 | 0.7 | 1.8 | 16.5 | 369 | 4.61 | 3.5 | 34 | 45 |
| 4×6 | 0.7 | 1.8 | 17.8 | 463 | 3.08 | 3.5 | 43 | 57 |
| 4×10 | 0.7 | 1.8 | 20.9 | 667 | 1.83 | 3.5 | 60 | 77 |
| 4×16 | 0.7 | 1.8 | 23.4 | 930 | 1.15 | 3.5 | 83 | 105 |
| 4×25 | 0.9 | 1.8 | 27.1 | 1351 | 0.727 | 3.5 | 105 | 125 |
| 4×35 | 0.9 | 1.8 | 29.5 | 1772 | 0.524 | 3.5 | 125 | 155 |
| 4×50 | 1 | 1.9 | 38.4 | 2380 | 0.387 | 3.5 | 160 | 185 |
| 4×70 | 1.1 | 2 | 43.2 | 3302 | 0.268 | 3.5 | 200 | 225 |
| 4×95 | 1.1 | 2.2 | 47.3 | 4330 | 0.193 | 3.5 | 245 | 270 |
| 4×120 | 1.2 | 2.3 | 52.5 | 5374 | 0.153 | 3.5 | 285 | 310 |
| 4×150 | 1.4 | 2.5 | 58.3 | 6655 | 0.124 | 3.5 | 325 | 345 |
| 4×185 | 1.6 | 2.7 | 64.7 | 8246 | 0.0991 | 3.5 | 375 | 390 |
| 4×240 | 1.7 | 2.9 | 73.1 | 10569 | 0.0754 | 3.5 | 440 | 450 |

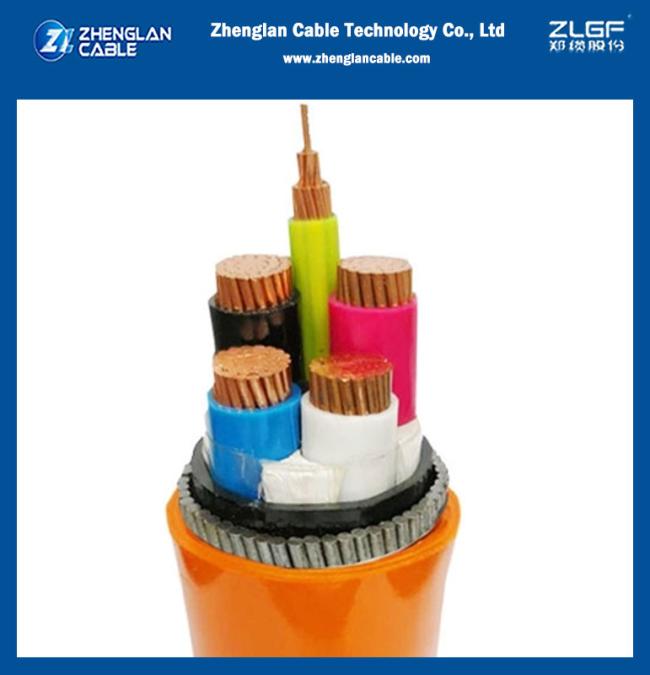

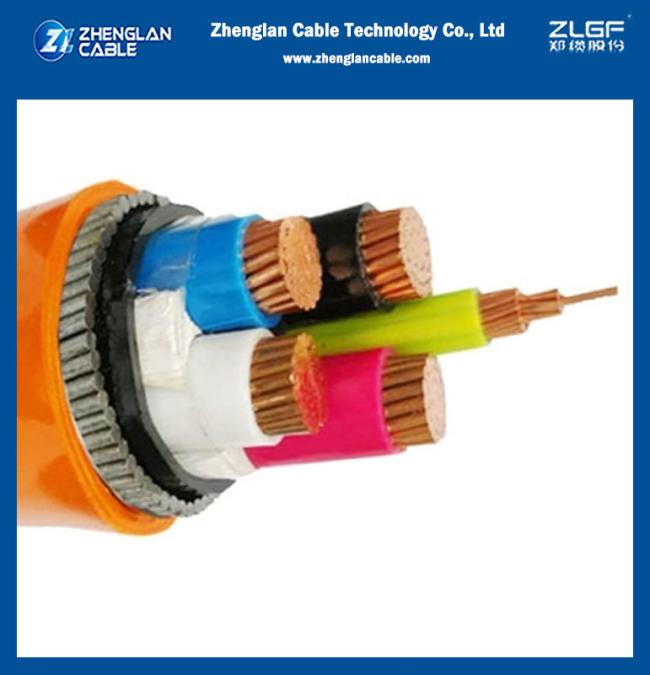

Product image
About Zhenglan Cable Technology CO., Ltd
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 1000m.
About Zhenglan Cable Technology CO., Ltd
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 1000m.
