Steel Reinforced Bare ACSR Aluminum Conductor Cable 100/17mm2 IEC61089
Price:
0.1-100USD/m
MOQ:
500 meters
Delivery Time:
15 working days
Brand:
Zhenglan Cable
Product Description
Steel Reinforced Bare ACSR Aluminum Conductor Cable 100/17mm2 IEC61089
APPLICATION
ACSR conductor consists of a solid or stranded steel core surrounded by strands of aluminum (E.C. GRADE). ACSR
Conductor is available in a wide range of steel, containing carbon from 0.5% to 0.85 %. The higher strength ACSR
Conductor are used for river crossings, overhead ground wires, installations involving extra long spans etc. Against any
given resistance of conductor, ACSR may be manufactured for having a wide range of tensile strength as per
requirement. The principal advantage of these conductors are high tensile strength so that they are used for longer spans
with less supports. Due to the greater diameter of ACSR Conductor a much higher corona limit can be obtained causing big
advantages on high as well as extra high voltage Overhead lines.
ELECTRICAL PROPERTIES
| density@20ºC | Aluminium: 2.703 kg/dm |
| Galvanised Steel: 7.80 kg/dm | |
| Temperature Coefficient@20°C | Aluminium: 0.00403 (°C) |
| resistivity@20°C | Aluminium: Should not exceed 0.028264 |
|
linear Expansivity
|
Aluminium: 23 x10 (°C) |
| Galvanised Steel: 11.5 x10 (1/°C) |
SERVICE CONDITIONS
| Ambient Temperature | -5°C - 50°C |
| Wind Pressure | 80 – 130kg/m |
| Seismic Acceleration | 0.12 - 0.05g |
| Isokeraunic level | 10 – 18 |
| relative Humidity | 5 – 100% |
TECHNICAL DATA

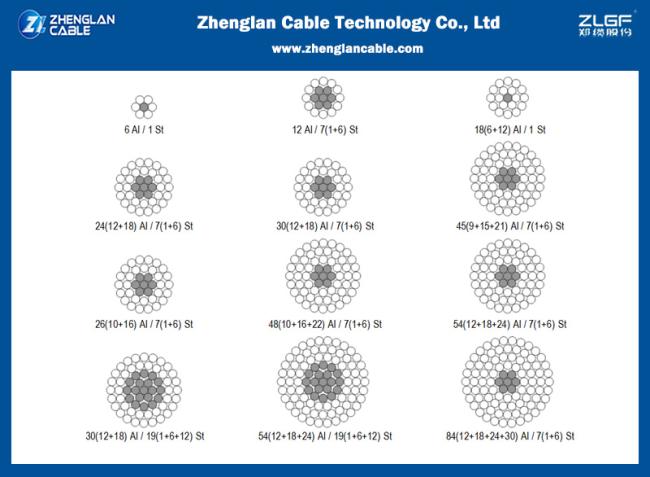

| Numbers of Wires | Modules of Elasticity | Coeficient of linear Expansion | |||
| AL | STEEL | Kg/mm2 | Lb/in2 | 1/Cº | 1/Fº |
| 6 | 1 | 81 | 11.5 x106 | 19.1 x10-6 | 10.6 x10-6 |
| 6 | 7 | 77 | 11.0 x106 | 19.8 x10-6 | 11.0 x10-6 |
| 12 | 7 | 107 | 15.2 x106 | 15.3 x10-6 | 8.5 x10-6 |
| 18 | 1 | 67 | 9.5 x106 | 21.2 x10-6 | 11.8 x10-6 |
| 24 | 7 | 74 | 10.5 x106 | 19.6 x10-6 | 10.9 x10-6 |
| 26 | 7 | 77 | 10.9 x106 | 18.9 x10-6 | 10.5 x10-6 |
| 28 | 7 | 79 | 11.2 x106 | 18.4 x10-6 | 10.2 x10-6 |
| 30 | 7 | 82 | 11.6 x106 | 17.8 x10-6 | 9.9 x10-6 |
| 30 | 19 | 80 | 11.4 x106 | 18.0 x10-6 | 10.0 x10-6 |
| 32 | 19 | 82 | 11.7 x106 | 17.5 x10-6 | 9.7 x10-6 |
| 54 | 7 | 70 | 9.9 x106 | 19.3 x10-6 | 10.7 x10-6 |
| 54 | 19 | 68 | 9.7 x106 | 19.4 x10-6 | 10.8 x10-6 |
Bare ACSR conductor Aluminum conductor steel reinforced 100/17mm2 IEC61089 CONSTRUCTION PARAMETERS
• IEC 60189
| Code | Nominal Area | Stranding | Overall Diameter | Weight | Breaking Load | Electrical Resistance @20° | Current Rating* | |||
| AL | STEEL | TOTAL | AL | STEEL | ||||||
| mm2 | mm2 | mm2 | No.xmm | No.xmm | mm | Kg/Km | KN | Ω/Km | A | |
| 16 | 16 | 2.67 | 18.7 | 6/1.84 | 1/1.84 | 5.52 | 64.6 | 6.08 | 1.7934 | 85 |
| 25 | 25 | 4.17 | 29.2 | 6/2.30 | 1/2.30 | 6.9 | 100.9 | 9.13 | 1.1478 | 112 |
| 40 | 40 | 6.67 | 46.7 | 6/2.91 | 1/2.91 | 8.73 | 161.5 | 14.4 | 0.7174 | 150 |
| 63 | 63 | 10.5 | 73.5 | 6/3.66 | 1/3.66 | 10.98 | 254.4 | 21.63 | 0.4555 | 198 |
| 100 | 100 | 16.7 | 117 | 6/4.61 | 1/4.61 | 13.83 | 403.8 | 34.33 | 0.2869 | 263 |
| 125 | 125 | 6.94 | 132 | 18/2.97 | 1/2.97 | 14.85 | 397.9 | 29.17 | 0.2304 | 299 |
| 125 | 125 | 20.4 | 145 | 26/2.47 | 7/1.92 | 15.64 | 503.9 | 45.69 | 0.231 | 302 |
| 160 | 160 | 8.89 | 169 | 18/3.36 | 1/3.36 | 16.8 | 509.3 | 36.18 | 0.18 | 347 |
| 160 | 160 | 26.1 | 186 | 26/2.80 | 7/2.18 | 17.74 | 644.9 | 57.69 | 0.1805 | 351 |
| 200 | 200 | 11.1 | 211 | 18/3.76 | 1/3.76 | 18.8 | 636.7 | 44.22 | 0.144 | 398 |
| 200 | 200 | 32.6 | 233 | 26/3.13 | 7/2.43 | 19.81 | 806.2 | 70.13 | 0.1444 | 402 |
| 250 | 250 | 24.6 | 275 | 22/3.80 | 7/2.11 | 21.53 | 880.6 | 68.72 | 0.1154 | 458 |
| 250 | 250 | 40.7 | 291 | 26/3.50 | 7/2.72 | 22.16 | 1007.7 | 87.67 | 0.1155 | 461 |
| 315 | 315 | 21.8 | 337 | 45/2.99 | 7/1.99 | 23.91 | 1039.6 | 79.03 | 0.0917 | 526 |
| 315 | 315 | 51.3 | 366 | 26/3.93 | 7/3.05 | 24.87 | 1269.7 | 106.83 | 0.0917 | 530 |
| 400 | 400 | 27.7 | 428 | 45/3.36 | 7/2.24 | 26.88 | 1320.1 | 98.36 | 0.0722 | 607 |
| 400 | 400 | 51.9 | 452 | 54/3.07 | 7/3.07 | 27.63 | 1510.3 | 123.04 | 0.0723 | 610 |
| 450 | 450 | 31.1 | 481 | 45/3.57 | 7/2.38 | 28.56 | 1485.2 | 107.47 | 0.0642 | 651 |
| 450 | 450 | 58.3 | 508 | 54/3.26 | 7/3.26 | 29.34 | 1699.1 | 138.42 | 0.0643 | 655 |
| 500 | 500 | 34.6 | 535 | 45/3.76 | 7/2.51 | 30.09 | 1650.2 | 119.41 | 0.0578 | 693 |
| 500 | 500 | 64.8 | 565 | 54/3.43 | 7/3.43 | 30.87 | 1887.9 | 153.8 | 0.0578 | 697 |
| 560 | 560 | 38.7 | 599 | 45/3.98 | 7/2.65 | 31.83 | 1848.2 | 133.74 | 0.0516 | 741 |
| 560* | 560 | 70.9 | 631 | 54/3.63 | 19/2.18 | 32.68 | 2103.4 | 172.59 | 0.0516 | 745 |
| 630 | 630 | 43.6 | 674 | 45/4.22 | 7/2.81 | 33.75 | 2079.2 | 150.45 | 0.0459 | 794 |
| 630* | 630 | 79.8 | 710 | 54/3.85 | 19/2.31 | 34.65 | 2366.3 | 191.77 | 0.0459 | 798 |
| 710 | 710 | 49.1 | 759 | 45/4.48 | 7/2.99 | 35.85 | 2343.2 | 169.56 | 0.0407 | 851 |
| 710* | 710 | 89.9 | 800 | 54/4.09 | 19/2.45 | 36.79 | 2666.8 | 216.12 | 0.0407 | 856 |
| 800* | 800 | 34.6 | 835 | 72/3.76 | 7/2.51 | 37.61 | 2480.2 | 167.41 | 0.0361 | 910 |
| 800* | 800 | 66.7 | 867 | 84/3.48 | 7/3.48 | 38.28 | 2732.7 | 205.33 | 0.0362 | 912 |
| 800* | 800 | 101 | 901 | 54/4.34 | 19/2.61 | 39.09 | 3004.9 | 243.52 | 0.0362 | 916 |
| 900* | 900 | 38.9 | 939 | 72/3.99 | 7/2.66 | 39.9 | 2790.2 | 188.33 | 0.0321 | 972 |
| 900* | 900 | 75 | 975 | 84/3.69 | 7/3.69 | 40.59 | 3074.2 | 226.5 | 0.0322 | 974 |
| 1000* | 1000 | 43.2 | 1043 | 72/4.21 | 7/2.80 | 42.08 | 3100.3 | 209.26 | 0.0289 | 1031 |
| 1120* | 1120 | 47.3 | 1167 | 72/4.45 | 19/1.78 | 44.5 | 3464.9 | 234.53 | 0.0258 | 1096 |
| 1120* | 1120 | 91.2 | 1211 | 84/4.12 | 19/2.47 | 45.31 | 3811.5 | 283.17 | 0.0258 | 1100 |
| 1250* | 1250 | 102 | 1352 | 84/4.35 | 19/2.61 | 47.85 | 4253.9 | 316.04 | 0.0232 | 1165 |
| 1250* | 1250 | 52.8 | 1303 | 72/4.70 | 19/1.88 | 47 | 3867.1 | 261.75 | 0.0231 | 1163 |
| 1120* | 1120 | 91.2 | 1211 | 84/4.12 | 19/2.47 | 45.31 | 3811.5 | 283.17 | 0.0258 | 1100 |
Why you choose us?
- OEM/ODM services provided;
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
- Professional pre-sales and after-sales services provided.
