Acsr Overhead Line Bare Aluminum Cable Conductor En50182 IEC61089

Price Negotiable

Price: 0.1-70usd/m

MOQ: 500-5000 meters

Delivery Time: 15 Working Days

Brand: Zhenglan Cable

Product Description

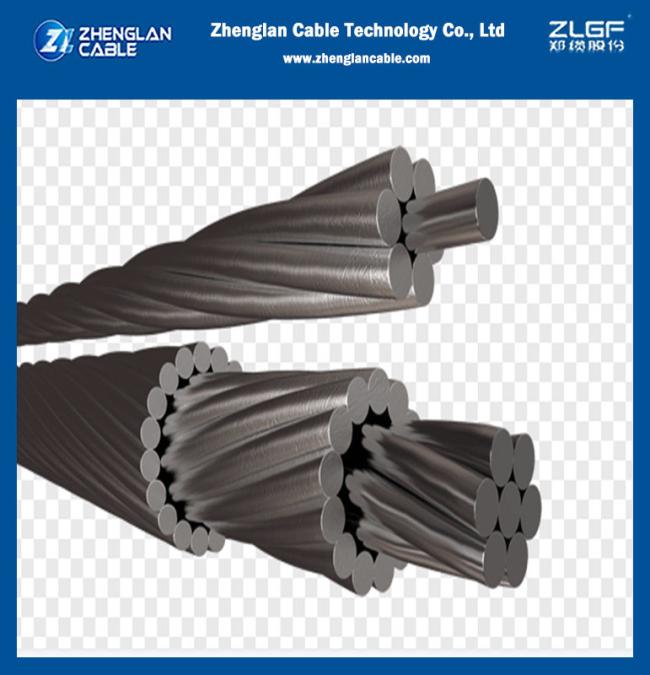

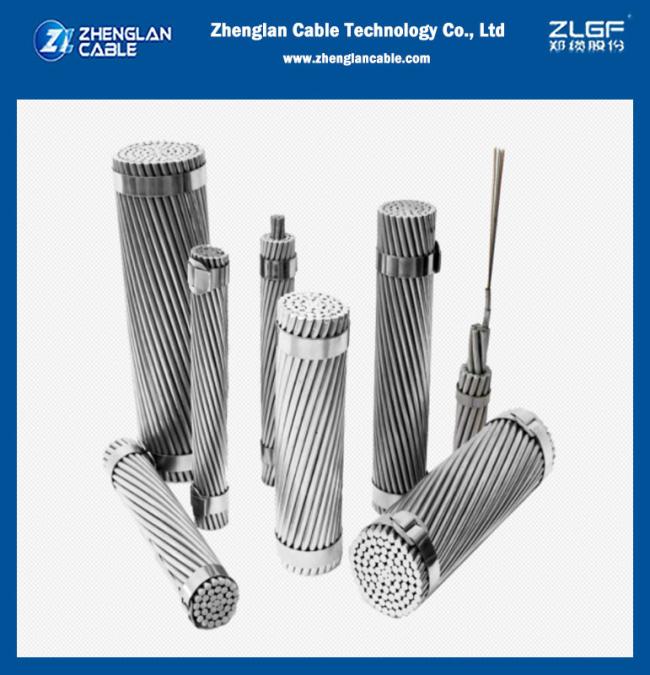

Best Price Acsr Overhead Line Conductor Bare Aluminum Cable

Application:

Cabos de Alumínio Nu com Alma de Aço ACSR conductor Bare CAA conductors are widely used for electrical power transmission over long distances, since they are ideal for long overhead lines spans. They are also used as a messenger for supporting overhead electrical cables.

Electrical properties:

density@20ºC	Aluminium: 2.703 kg/dm
density@20ºC	Galvanised Steel: 7.80 kg/dm
Temperature Coefficient@20°C	Aluminium: 0.00403 (°C)
resistivity@20°C	Aluminium: Should not exceed 0.028264
linear Expansivity	Aluminium: 23 x10 (°C)
linear Expansivity	Galvanised Steel: 11.5 x10 (1/°C)

Service conditions:

Ambient Temperature	-5°C - 50°C
Wind Pressure	80 – 130kg/m
Seismic Acceleration	0.12 - 0.05g
Isokeraunic level	10 – 18
relative Humidity	5 – 100%

Features:

Numbers of Wires		Modules of Elasticity		Coeficient of linear Expansion
AL	STEEL	Kg/mm2	Lb/in2	1/Cº	1/Fº
6	1	81	11.5 x10⁶	19.1 x10^-6	10.6 x10^-6
6	7	77	11.0 x10⁶	19.8 x10^-6	11.0 x10^-6
12	7	107	15.2 x10⁶	15.3 x10^-6	8.5 x10^-6
18	1	67	9.5 x10⁶	21.2 x10^-6	11.8 x10^-6
24	7	74	10.5 x10⁶	19.6 x10^-6	10.9 x10^-6
26	7	77	10.9 x10⁶	18.9 x10^-6	10.5 x10^-6
28	7	79	11.2 x10⁶	18.4 x10^-6	10.2 x10^-6
30	7	82	11.6 x10⁶	17.8 x10^-6	9.9 x10^-6
30	19	80	11.4 x10⁶	18.0 x10^-6	10.0 x10^-6
32	19	82	11.7 x10⁶	17.5 x10^-6	9.7 x10^-6
54	7	70	9.9 x10⁶	19.3 x10^-6	10.7 x10^-6
54	19	68	9.7 x10⁶	19.4 x10^-6	10.8 x10^-6

PARAMETERS

Code	Gage AWG or MCM	Nominal Cross Section (mm²)		Threading: N° of wires x Nominal Diameter (mm)		Nominal External Diameter (mm)	Nominal Net Weight (kg/km)			Load Before Rupture (kN)	Current Carryng Capacity	Maximum Electrical Resistance 20ºC (Ohm/km)
Code	Gage AWG or MCM	Aluminun	Total	Aluminun	Steel	Nominal External Diameter (mm)	Aluminun	Steel	Total	Load Before Rupture (kN)	Current Carryng Capacity	Maximum Electrical Resistance 20ºC (Ohm/km)
Turkey	6	1,330	1,552	6x1,68	1x1,68	504	365	172	537	528	95	215,699
Thrush	5	1,677	1,957	6x1,89	1x1,89	566	460	218	678	671	115	171,067
Swan	4	2,115	2,471	6x2,12	1x2,12	636	581	275	856	839	130	135,640
Swanate	4	2,115	2,647	7x1,96	1x2,61	653	580	416	996	1,052	130	135,640
Swallow	3	2,667	3,112	6x2,38	1x2,38	714	732	346	1,078	1,022	150	107,566
Sparrow	2	3,359	3,919	6x2,67	1x2,67	801	922	436	1,358	1,268	175	85,406
Sparete	2	3,359	4,209	7x2,47	1x3,30	824	920	665	1,585	1,613	175	85,406
Robin	1	4,241	4,948	6x3,00	1x3,00	900	1,164	550	1,714	1,581	200	67,644
Raven	1/0	5,352	6,244	6x3,37	1x3,37	1,011	1,468	694	2,162	1,935	230	53,602
Quail	2/0	6,733	7,855	6x3,78	1x3,78	1,134	1,847	873	2,720	2,359	265	42,608
Pigeon	3/0	8,512	9,930	6x4,25	1x4,25	1,275	2,335	1,103	3,438	2,941	310	33,703
Penguin	4/0	10,720	1,251	6x4,77	1x4,77	1,431	2,941	1,393	4,334	3,709	350	26,761
Waxwing	2,668	13,519	1,425	18x3,09	1x3,09	1,545	3,722	584	4,306	3,027	430	21,325
Partridge	2,668	13,519	1,569	26x2,57	7x2,00	1,628	3,738	1,718	5,456	5,025	440	21,430
