AAAC Alloy Bare Aluminum Conductor Cable Canton 19/3.66mm DIN 48201
Price:
Negotiable
MOQ:
3tons
Delivery Time:
15-30 days
Brand:
Zhenglan Cable
Product Description
AAAC conductor Bare aluminum alloy cable Canton (19/3.66mm) all aluminum alloy conductor
Application
AAAC conductor Bare aluminum alloy cable Canton (19/3.66mm) all aluminum alloy conductor are normally used in overhead power transmission lines.
AAAC conductor Bare aluminum alloy cable Canton (19/3.66mm) all aluminum alloy conductor is a concentrically stranded conductor composed of one or more layers of 6201-T81 aluminum alloy wires.
It was developed to fill the need for an economical conductor for aerial application, where greater mechanical strength is required than that obtained with all aluminum conductor and greater corrosion resistance than aluminum cable with ACSR
6201-T81 alloy conductors are harder, therefore, have greater abrasion resistance than 1350-H19 aluminum conductors.
However, the same precautions taken when handling AAC and AAC conductors must be observed when handling AAAC conductors.
The stringing combinations of CAL cables are similar to those of AAC cables.
Place of Origin: Henan,China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: none
Conductor Material: Aluminum, aluminum alloy
Jacket: none
Product name: Aluminum Alloy Conductor
Quality: 100% test
Size: AWG,mm2 or customized
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized
AAAC conductor Bare aluminum alloy cable Canton (19/3.66mm) all aluminum alloy conductor Technical parameters
| Código | Bitola AWG ou MCM | Encordoamento: n° de fios x diâmetro nominal | Diâmetro Externo Nominal (mm²) | Peso Líquido Nominal (kg/km) | Carga de Ruptura (kN) | Capacidade de Corrente | Resistência Elétrica Max. a 20ºC (Ohm/km) |
| Akron | 30,58 | 7 x 1,68 | 5,04 | 42,7 | 4,91 | 96 | 215,878 |
| Altron | 48,69 | 7 x 2,12 | 6,36 | 68 | 7,82 | 130 | 135,568 |
| Ames | 77,47 | 7 X 2,67 | 8,01 | 108,2 | 12,45 | 175 | 0,85468 |
| Azusa | 123,3 | 7 X 3,37 | 10,11 | 172,2 | 19,82 | 237 | 0,5365 |
| Anaheim | 155,4 | 7 X 3,78 | 11,34 | 217,1 | 23,95 | 275 | 0,42643 |
| Amherst | 195,7 | 7 X 4,25 | 12,75 | 273,4 | 30,16 | 320 | 0,33733 |
| Alliance | 246,9 | 7 X 4,77 | 14,31 | 344,9 | 38,05 | 371 | 0,26779 |
| Butte | 312,8 | 19 X 3,26 | 16,3 | 436,9 | 48,72 | 433 | 0,21252 |
| Canton | 394,5 | 19 x 3,66 | 18,3 | 551,1 | 58,9 | 504 | 0,16758 |
| Cairo | 465,4 | 19 x 3,98 | 19,9 | 650,2 | 69,48 | 560 | 0,14243 |
| Darien | 559,5 | 19 x 4,36 | 21,8 | 781,6 | 83,54 | 630 | 0,11863 |
| Elgin | 652,4 | 19 x 4,71 | 23,55 | 911,4 | 97,41 | 697 | 0,10162 |
| Flint | 740,8 | 37 x 3,59 | 25,13 | 1034,9 | 108,24 | 754 | 0,08944 |

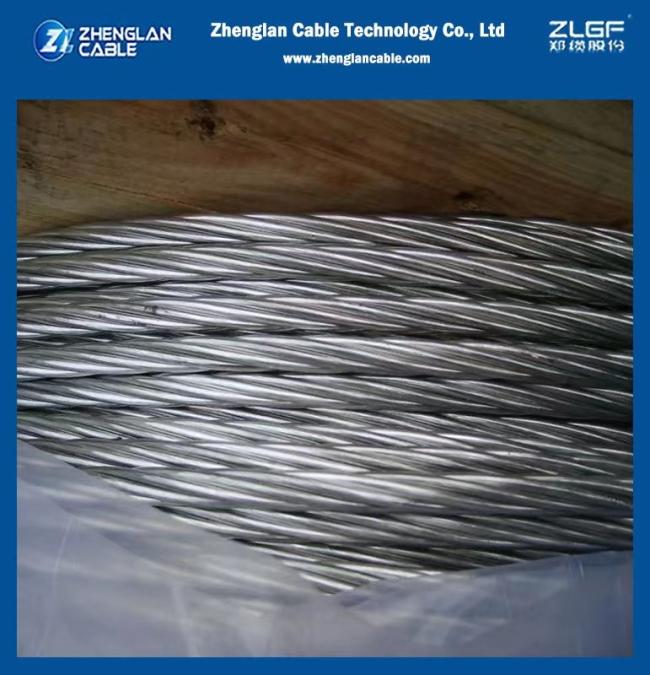

AAAC conductor Bare aluminum alloy cable Canton (19/3.66mm) all aluminum alloy conductor product Images
Why you choose us?
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
FAQ
- Is your company a factory or a trade company? --- Factory, more than 20 years in China
- How long can I expect to get the sample?---After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
- What are your payment terms?---We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
- What’s the delivery time?---Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
- What is your MOQ?---Generally it is 5000m.
