ACAR 750MCM Aluminum Conductor Alloy Material Reinforced ASTM B524
Price:
Negotiable
MOQ:
3000kgs
Delivery Time:
15-30 days
Brand:
Zhenglan Cable
Product Description
ACAR 750MCM aluminum conductor alyminum alloy reinforced ASTM B524 are used as bare overhead transmission cable in primary and secondary distribution cable. The good strength-to-weight ratio makes ACAR applicable where both ampacity and strength are prime considerations in line design. For equal weight, ACAR offers higher strength and ampacity than ACSR.
| SR.NO | DESCRIPTION | RANGE | |
| 1 | Conductor Area | 10.6mm2 to 1520mm2 | 0.0164 in2 to 2.356 in2 |
| 2 | Conductor construction | 4Al/3Al Alloy to 72Al/19 Al Alloy | |
| 3 | Conductivity | 61% | |
| 4 | Conductivity of Al Alloy | 52.5% to 53% | |
| SR. NO. | CONDUCTOR CONSTRUCTION | MODOLUS OF ELASTICITY* | LINEAR COEFFCIENT* | ||
| MPA | KSI | /OC | /OF | ||
| 1 | 7 Strands | 62000 | 8992 | 23.0 X 10-6 | 12.8 X 10-6 |
| 2 | 19 Strands | 60000 | 8702 | 23.0 X 10-6 | 12.8 X 10-6 |
| 3 | 37 Strands | 57000 | 8267 | 23.0 X 10-6 | 12.8 X 10-6 |
| 4 | 61 Strands | 55000 | 7977 | 23.0 X 10-6 | 12.8 X 10-6 |
STANDARD
Basic design to ASTM 524/524M standards
ACAR 750MCM aluminum conductor alyminum alloy reinforced ASTM B524 Technical data
| kcmil | Area 2 mm |
Wire Size mm |
No.of wires | Overall Dia. mm |
Weight kg/km | Rated Strength kN |
DC Resistance at 20oC a/km |
|||||
| 1350 | 6201 | Total | 1350 | 6201 | Total | |||||||
| 750 | 380.2 | 3.617 | 18 | 19 | 37 | 25.32 | 510.3 | 535.7 | 1046 | 84.52 | 0.0815 | |
| 750 | 380.2 | 3.617 | 24 | 13 | 37 | 25.32 | 680.4 | 366.5 | 1046.9 | 76.16 | 0.0796 | |
| 750 | 380.2 | 3.617 | 30 | 7 | 37 | 25.32 | 850.5 | 197.4 | 1047.9 | 69.4 | 0.0777 | |
| 750 | 380.2 | 3.617 | 33 | 4 | 37 | 25.32 | 935.6 | 112.8 | 1048.4 | 64.26 | 0.0768 | |

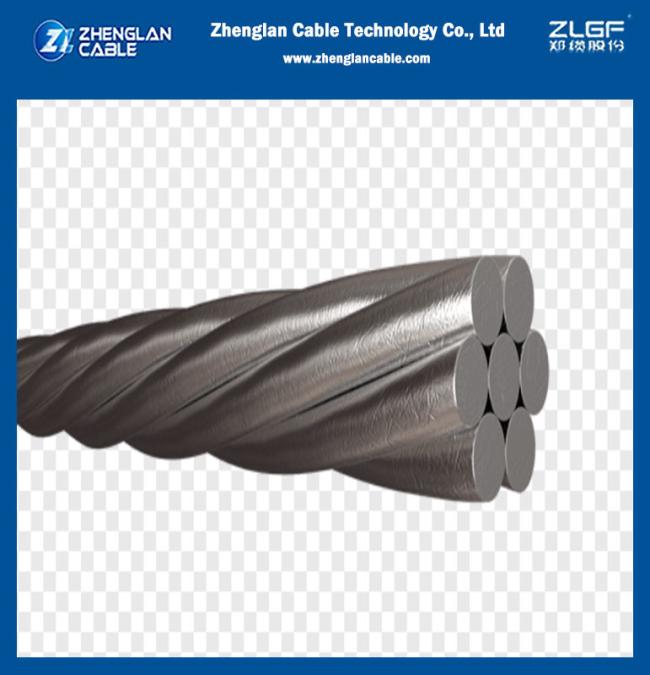

Product show of ACAR 750MCM aluminum conductor alyminum alloy reinforced ASTM B524
