Rabbit Aluminium Conductor Steel Reinforced (ACSR) Conductors 6*3.35mm+1*3.35mm BS 215-2 BS EN 50182
Rabbit Aluminium Conductor Steel Reinforced (ACSR) Conductors 6*3.35mm+1*3.35mm BS 215-2 BS EN 50182
Construction:

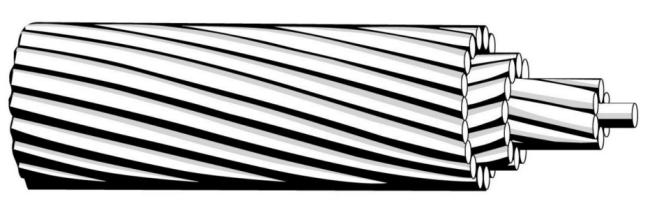

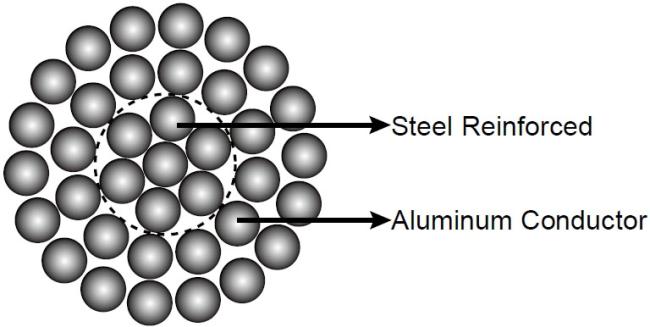

Aluminum Conductor Steel Reinforced (ACSR) is concentrically stranded conductor with one or more layers of hard drawn 1350-H19 aluminum wire on galvanized steel wire core. The core can be single wire or stranded depending on the size. Steel core wire is available in Class A , B or Class C galvanization for corrosion protection. Additional corrosion protection is available through the application of grease to the core or infusion of the completed conductor with grease.
Application :
ACSR are available in a range of steel contents ranging from 6% to 40% for additional strength. The higher strength ACSR conductors are commonly used for river crossings, overhead earth wires, and installations involving extra-long spans. The ACSR conductor can, against any given resistance, be manufactured to different tensile strengths, so a high tensile strength combined with its lightweight properties means it can cover longer distances with fewer supports. Due to the greater diameter of the ACSR conductor, a much higher corona limit can be obtained which is advantageous on high and extra high voltage overhead lines.
There are the following advantages of the ACSR Conductor:
High strength-to-weight ratio: ACSR's design provides exceptional strength while remaining lightweight, making it ideal for long-distance power transmission.
Good conductivity and efficiency: Aluminium's conductivity ensures efficient power transmission, reducing energy losses during distribution.
Corrosion resistance: The steel core of ACSR provides resistance to corrosion, enhancing the conductor's durability in various environments.
Cost-effectiveness compared to other conductors: ACSR is a cost-efficient choice for power transmission and distribution compared to alternatives like copper conductors.
Thermal Stability: ACSR conductors boast excellent thermal stability, ensuring reliable performance in environments with temperature fluctuations.
Reduced Electromagnetic Interference: The steel core minimizes electromagnetic interference, making ACSR suitable for applications where signal quality is crucial.
Ease of Installation: ACSR's lightweight design facilitates easy installation, contributing to cost savings and swift deployment in electrical projects.
Hardware Compatibility: ACSR conductors are versatile and compatible with various supporting hardware and accessories for diverse installation scenarios.

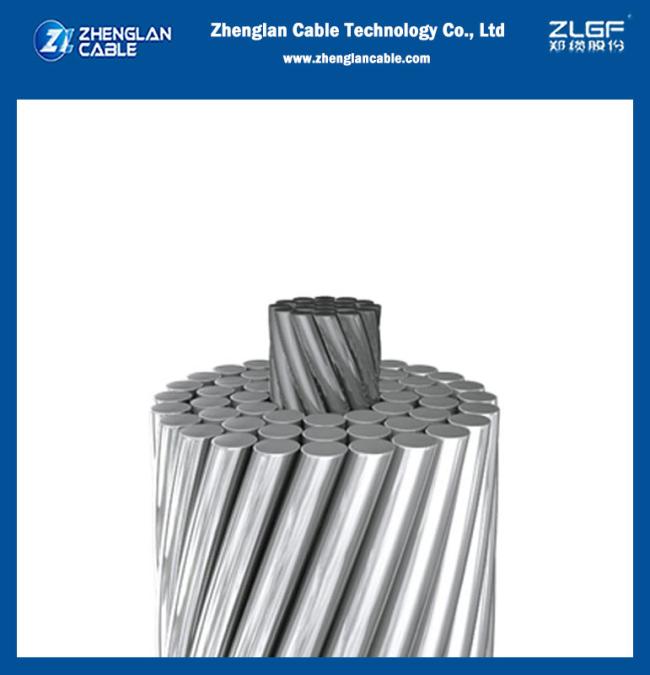

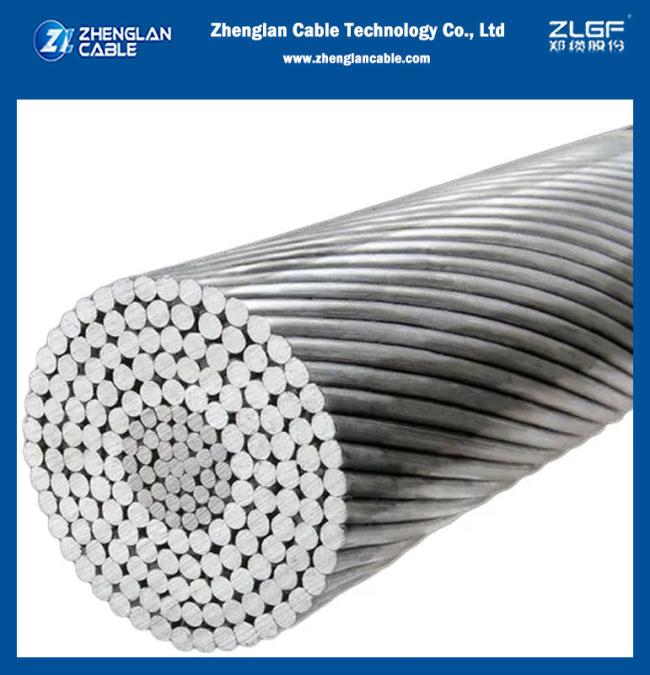

Product picture:
Standard:BS 215-2 BS EN 50182
| Code | Nominal Area | Stranding | Overall Diameter | Weight(CU) |
Rated Strength |
Electrical Resistance @20o |
|||||||
| AL | Steel | Total | AL | Steel | Core | Total | AL | Steel | Total | ||||
| Nominal | Teorical | ||||||||||||
| mm^2 | mm^2 | mm^2 | mm^2 | No.xmm | No.xmm | mm | mm | Kg/Km | Kg/Km | Kg/Km | KN | Ω/Km | |
| Mole | 10 | 10.62 | 1.77 | 12.39 | 6/1.50 | 1/1.50 | 1.5 | 4.5 | 29 | 14 | 43 | 4.14 | 2.706 |
| Squirrel | 20 | 20.94 | 3.49 | 24.43 | 6/2.11 | 1/2.11 | 2.11 | 6.33 | 57 | 28 | 85 | 7.88 | 1.368 |
| Gopher | 25 | 26.24 | 4.38 | 30.62 | 6/2.36 | 1/2.36 | 2.36 | 7.08 | 71 | 35 | 106 | 9.61 | 1.093 |
| Weasel | 30 | 31.61 | 5.27 | 36.88 | 6/2.59 | 1/2.59 | 2.59 | 7.77 | 87 | 41 | 128 | 11.45 | 0.9077 |
| Fox | 35 | 36.66 | 6.11 | 42.77 | 6/2.79 | 1/2.79 | 2.79 | 8.37 | 101 | 48 | 149 | 13.2 | 0.7822 |
| Ferret | 40 | 42.41 | 7.07 | 49.48 | 6/3.00 | 1/3.00 | 3 | 9 | 117 | 55 | 172 | 15.2 | 0.6766 |
| Rabbit | 50 | 52.88 | 8.82 | 61.7 | 6/3.35 | 1/3.35 | 3.35 | 10.05 | 145 | 69 | 214 | 18.35 | 0.5426 |
| Mink | 60 | 63.18 | 10.53 | 73.71 | 6/3.66 | 1/3.66 | 3.66 | 10.98 | 171 | 84 | 255 | 2.18 | 0.4545 |
| Shunk | 60 | 63.27 | 37.03 | 100.3 | 12/2.59 | 7/2.59 | 7.77 | 12.95 | 178 | 287 | 465 | 5.3 | 0.4567 |
| Beaver | 70 | 74.82 | 12.47 | 87.29 | 6/3.99 | 1/3.99 | 3.99 | 11.97 | 203 | 99 | 302 | 2.57 | 0.3825 |
| Horse | 70 | 73.37 | 42.63 | 116.2 | 12/2.79 | 7/2.79 | 8.37 | 13.95 | 203 | 335 | 538 | 61.2 | 0.3936 |
| Racoon | 75 | 79.2 | 13.2 | 92.4 | 6/4.1 | 1/4.1 | 4.1 | 12.3 | 216 | 104 | 320 | 27.2 | 0.3622 |
| Otter | 80 | 83.88 | 13.98 | 97.86 | 6/4.22 | 1/4.22 | 4.22 | 13.98 | 226 | 113 | 339 | 28.8 | 0.3419 |
| Cat | 90 | 95.44 | 15.86 | 111.3 | 6/4.5 | 1/4.5 | 4.5 | 15.9 | 258 | 128 | 386 | 32.7 | 0.3007 |
| Hare | 100 | 105 | 17.5 | 122.5 | 6/4.72 | 1/4.72 | 4.72 | 17.5 | 284 | 141 | 425 | 36 | 0.2733 |
| Dog | 100 | 105 | 13.5 | 118.5 | 6/4.72 | 7/1.57 | 4.71 | 14.15 | 288 | 106 | 394 | 32.7 | 0.2733 |
| Hyena | 100 | 105.8 | 20.4 | 126.2 | 7/4.39 | 7/1.93 | 5.79 | 14.57 | 250 | 200 | 450 | 40.9 | 0.2712 |
| Leoperd | 125 | 131.3 | 16.8 | 148.1 | 8/5.28 | 7/1.75 | 5.25 | 15.81 | 310 | 182 | 492 | 40.7 | 0.2184 |
| Coyotte | 125 | 132.1 | 20.1 | 152.2 | 26/2.54 | 7/1.91 | 5.73 | 15.89 | 410 | 112 | 522 | 46.4 | 0.2187 |
| Congar | 125 | 130.3 | 7.2 | 137.5 | 18/3.05 | 1/3.05 | 3.05 | 15.25 | 361 | 58 | 419 | 29.8 | 0.2189 |
| Tiger | 125 | 131.1 | 30.6 | 161.7 | 30/2.36 | 7/2.36 | 7.08 | 16.52 | 365 | 237 | 602 | 58 | 0.2202 |
| Wolf | 150 | 158.1 | 36.8 | 194.9 | 30/2.59 | 7/2.59 | 7.77 | 18.13 | 441 | 285 | 726 | 69.2 | 0.1828 |
| Dingo | 150 | 158.7 | 8.8 | 167.5 | 18/3.35 | 1/3.35 | 3.35 | 16.75 | 437 | 69 | 506 | 35.7 | 0.1815 |
| Lynx | 175 | 183.4 | 42.8 | 226.2 | 30/2.79 | 7/2.79 | 8.37 | 19.53 | 507 | 335 | 842 | 79.8 | 0.1576 |
| Caracal | 175 | 184.3 | 10.2 | 194.5 | 18/3.61 | 1/3.61 | 3.61 | 18.05 | 507 | 80 | 587 | 41.1 | 0.1563 |
| Panther | 200 | 212.1 | 49.4 | 261.5 | 30/3.00 | 7/3.00 | 9 | 21 | 586 | 388 | 974 | 92.25 | 0.1363 |
| Jaguar | 200 | 210.6 | 11.7 | 222.3 | 18/3.86 | 1/3.86 | 3.86 | 19.3 | 580 | 91 | 671 | 46.55 | 0.1367 |
| Lion | 225 | 238.5 | 55.7 | 294.2 | 30/3.18 | 7/3.18 | 9.54 | 22.26 | 657 | 438 | 1095 | 100.6 | 0.1212 |
| Bear | 250 | 264 | 61.6 | 325.6 | 30/3.35 | 7/3.35 | 10.05 | 23.45 | 728 | 485 | 1213 | 111.1 | 0.109 |
| Goat | 300 | 324.3 | 75.7 | 400 | 30/3.71 | 7/3.71 | 11.13 | 25.79 | 894 | 595 | 1489 | 135.7 | 0.0891 |
| Sheep | 350 | 374.1 | 87.3 | 461.4 | 30/3.99 | 7/3.99 | 11.97 | 27.93 | 1031 | 687 | 1718 | 155.9 | 0.077 |
| Antilope | 350 | 373.1 | 48.4 | 421.5 | 54/2.97 | 7/2.97 | 8.91 | 26.73 | 1040 | 371 | 1411 | 118.2 | 0.0772 |
| Bizon | 350 | 381.8 | 49.5 | 431.3 | 54/3.00 | 7/3.00 | 9 | 27 | 1064 | 380 | 1444 | 120.9 | 0.7573 |
| Zebra | 400 | 428.9 | 55.6 | 484.5 | 54/3.18 | 7/3.18 | 9.54 | 28.62 | 1185 | 436 | 1621 | 131.9 | 0.0674 |
