Bare Aluminum Alloy Conductor 1165MCM 590mm2(61/3.51mm) ASTM B399/399M
Bare aluminum alloy conductor 1165MCM 590mm2(61/3.51mm) ASTM B399/399M Description

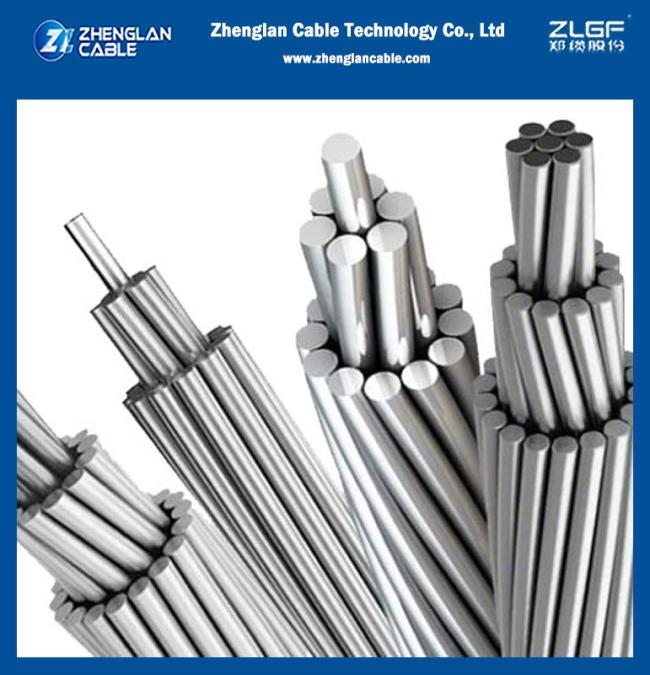

AAAC conductor are made of 6201-T81 aluminum alloy, conforming to ASTM Specification B-399. They are suitable for use in spans on wood poles, transmission towers, and other structures where AAC conductors do not provide the required strength and ACSR conductors are not required or suitable.
Applications: Used as bare overhead conductor for primary and secondary distribution.

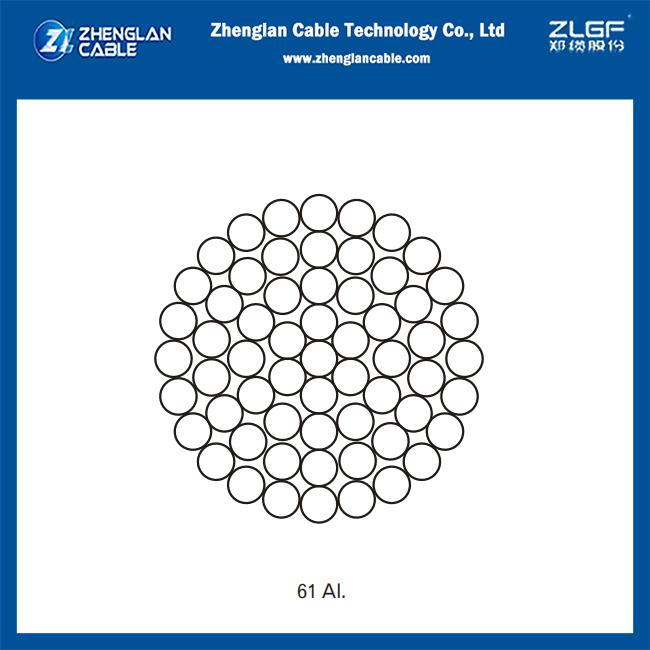

| Code Name | Total Area | Stranding | Conductor | Conductor Weight | Rated Strength | Max DC resistance | |
| diameter | at 20 oC | ||||||
| AWG or MCM | mm2 | No / mm | mm | kg/km | kN | Ω /km | |
| / | 1165.1 | 590 | 61x3.51 | 31.59 | 1620 | 167 | 0.05675 |
Why you choose us?
- OEM/ODM services provided;
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
- Professional pre-sales and after-sales services provided.
RFQ:
1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
4. What’s the delivery time?
Sample order needs 3~5 days.
Formal order depends on the quantity, usually it needs 15 working days after get your payment.
5. What is your MOQ?
Generally it is 5000m.
