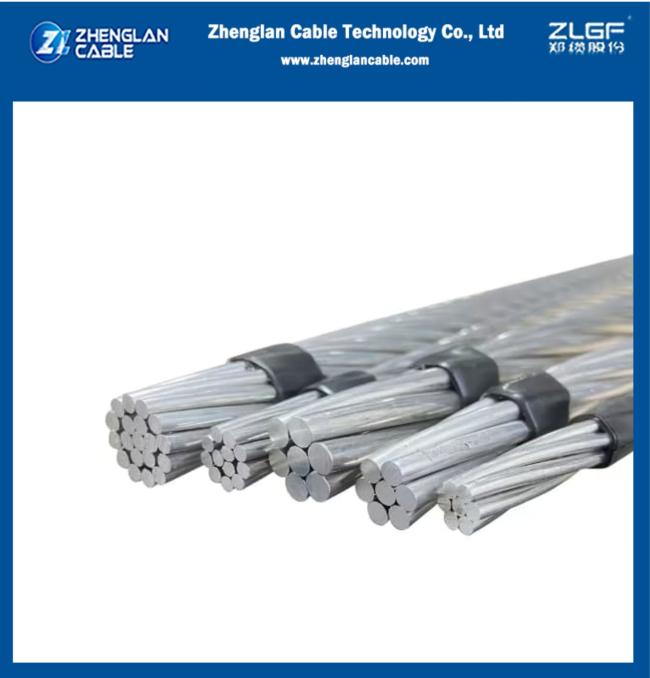

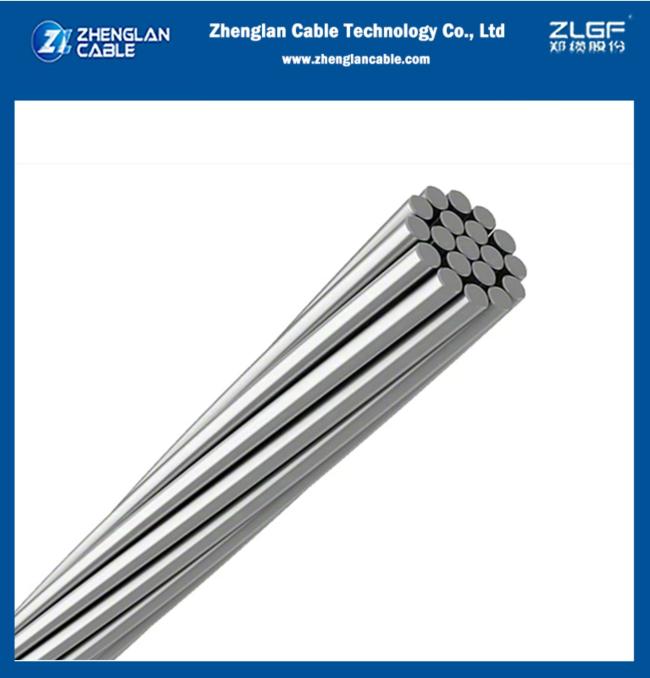

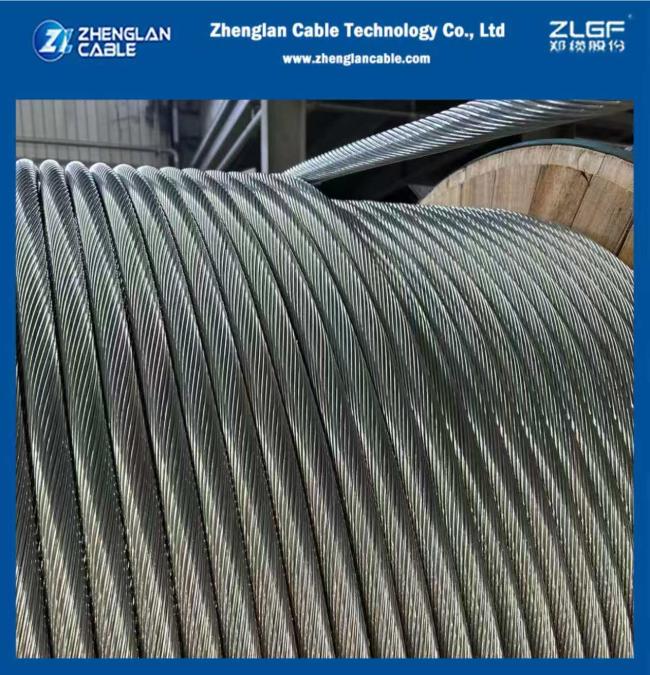

AAAC 95mm2 19/2.5mm All Aluminum Alloy Conductor Bare Conductor DIN 48201 Part 6
Application
Conductor(AAAC) have been widely used in power transmission lines with various voltage levels, and also used in power lines across great rivers, heavy ice area, and other places special geographical characteristics.
The conductor have excellent advantages of high strength, large current carrying capacity and good catenary property as well as wear-resistance, anti-crush and corrosion-proof with simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity.
Specifications
Conductor(AAAC) bear conductor meets or exceeds the following ASTM Specifications:
B-398 Aluminum Alloy 6201-T81 Wire for Electrical Purpose.
B-399 Concentrical-Lay-Stranded 6201-T81 Aluminum Alloy Conductors
Part of Technical Data:
| Nominal Area | Conductor Stranding | Sectional Area | Outter Diameter | Weight | Rated Strength | Max. Conductor DC Resistance at 20ºC |
| mm2 | No./mm | mm2 | mm | kg/km | daN | Ω/km |
| 95 | 19/2.50 | 93.27 | 12.5 | 256 | 2605 | 0.3579 |
About Zhenglan Cable Technology. Co., Ltd
The reason you choose us:
- We are profeesional cable supplier for more than 10 years.
- Not only provide you good-quality products,but also service you well.
- We have high work efficency.
If you are interested, please do not hesitate to contact us.Any inquiry will be welcomed.
