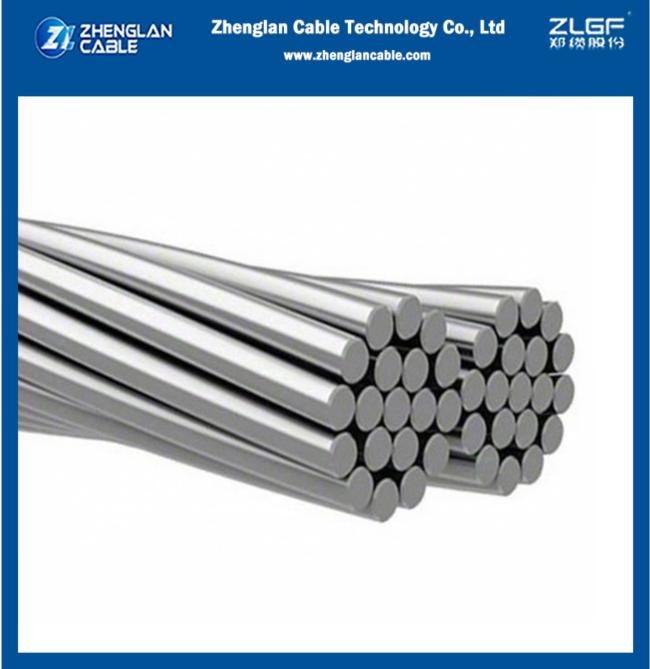

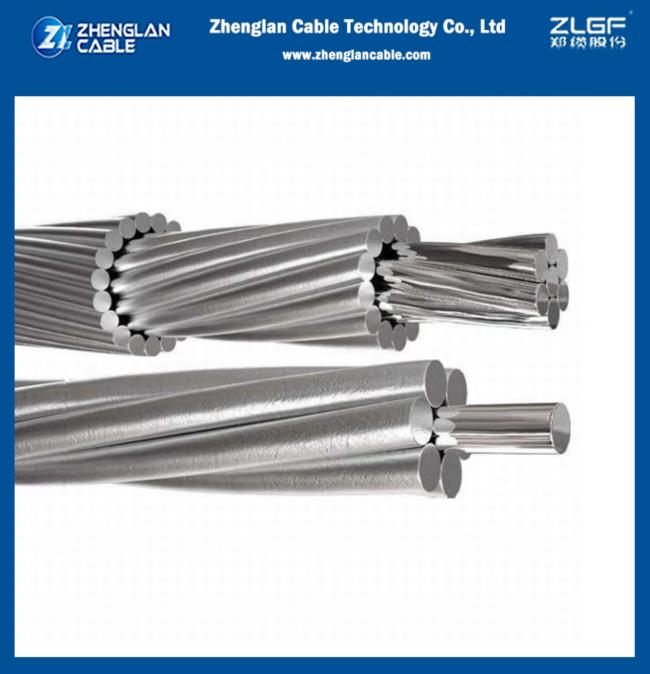

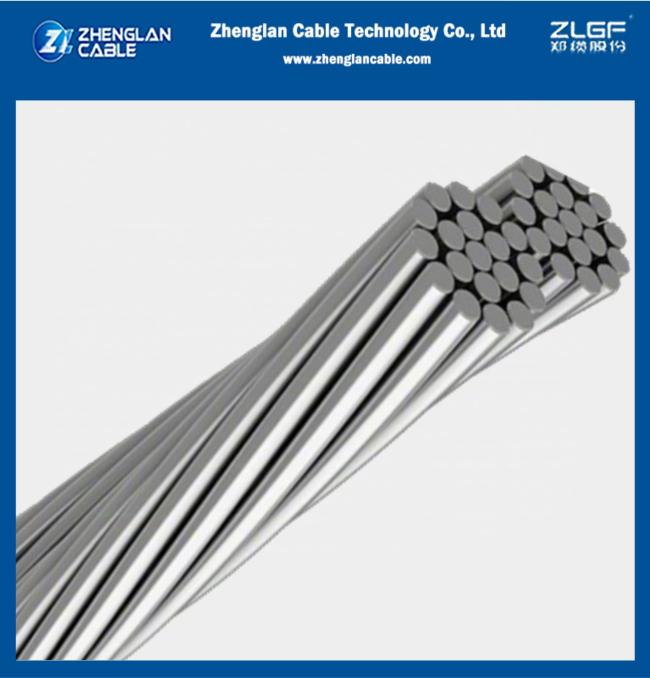

AAC 100mm2 19/2.59 All Aluminum Conductor AAC Conductor Bare Conductor IEC 61089
Application
All Aluminum Conductors are used for aerial distribution lines having relatively short spans, aerial feeders and bus bars of substations.
Description
Hard drawn Aluminum wires, stranded in successive layers, in opposite direction to from the Aluminum stranded AAC Conductor.
| Nominal Area (mm2): | 100 |
| Stranding: | 19 |
| Diameter Individual Wire Aluminum (mm): | 2.59 |
| Overall Diameter (O.D.) (mm): | 12.95 |
| Weight Per 1000 Meters (kg): | 278.4 |
| Rated Strength (KN): | 17 |
| Resistance DC 20°C Per 1000 Meters (Ω): | 0.2877 |
| Allowable Ampacity (Amps): | 259 |
About Zhenglan Cable
Zhenglan Cable Technology Co., Ltd has factory workshop taking up about 60000SQM is located in Wuzhi County, Jiaozuo city, Henan province, in the middle of China. Oversea sales center locates in Zhengzhou city, Henan, about 10minutes walk to Zhengdong Railway station, 45minutes' drive to Xinzheng International Airport.
Our main products are
overhead transmission line use bare conductor(ACSR, AAC, AAAC etc)
1-35kv overhead transmission line use insulated conductor
power distribution use 0.6/1kv, 1.8/3kv PVC/XLPE/PE insulated LV(low voltage) power cable armored or unarmored
power distribution use 3.6/6kv, 6/10kv,8.7/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv XLPE insulated MV(medium voltage) power cable armored or unarmored;
300/300V, 300/500V, 450/750V cotrol cable, house wire
The reason you choose us:
- We are profeesional cable supplier for more than 10 years.
- Not only provide you good-quality products,but also service you well.
- We have high work efficency.
If you are interested, please do not hesitate to contact us.Any inquiry will be welcomed.
