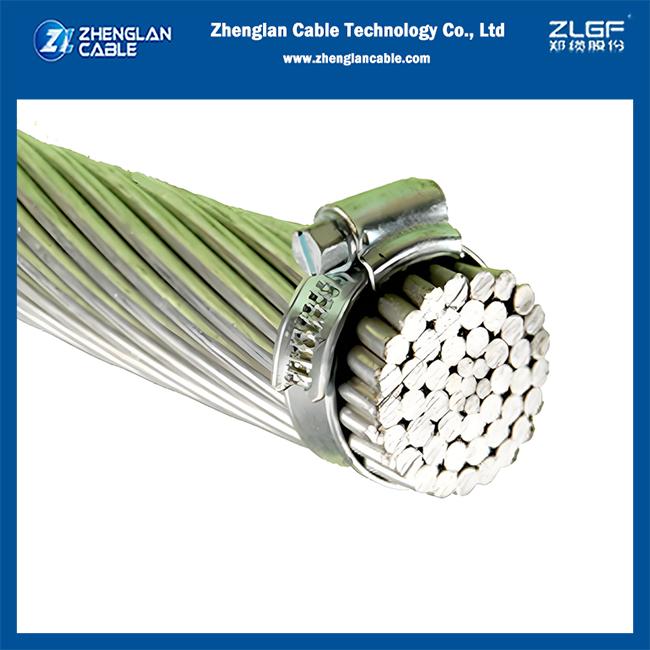

ACAR Conductor 950MCM(AAC18/4.07, AAAC19/4.07) Overhead Aluminum Conductor Aluminum Alloy Reinforced.
ACAR conductor 950MCM(AAC18/4.07, AAAC19/4.07) overhead aluminum conductor aluminum alloy reinforced.
ACAR is made of Aluminium 1350 - H19 wires with Aluminium Alloy 6201 as reinforcement core, having the same role of steel in ACSR, but with much higher ampacity. Its combination result in a good and interesting balance of mechanical strength and electrical performance.
ACAR is used as bare cable for overhead transmission and distribution lines and also as bus-bar in substations where is highly suitable considering the mechanical and electrical characteristics. As comparison with ACSR of same weight, ACAR can offers higher ampacity and mechanical strength.
Reference standards: ASTM B524/524M, ASTM B399/399M, ASTM B230/230M
ACAR conductor 950MCM(AAC18/4.07, AAAC19/4.07) overhead aluminum conductor aluminum alloy reinforced technical data
| kcmil | Area 2 mm |
Wire Size mm |
No.of wires | Overall Dia. mm |
Weight kg/km | Rated Strength kN |
DC Resistance at 20℃ Ω/km |
|||||
| 1350 | 6201 | Total | 1350 | 6201 | Total | |||||||
| 950 | 481.1 | 4.069 | 18 | 19 | 37 | 28.48 | 645.8 | 677.9 | 1323.7 | 105.84 | 0.0644 | |
Reference images
