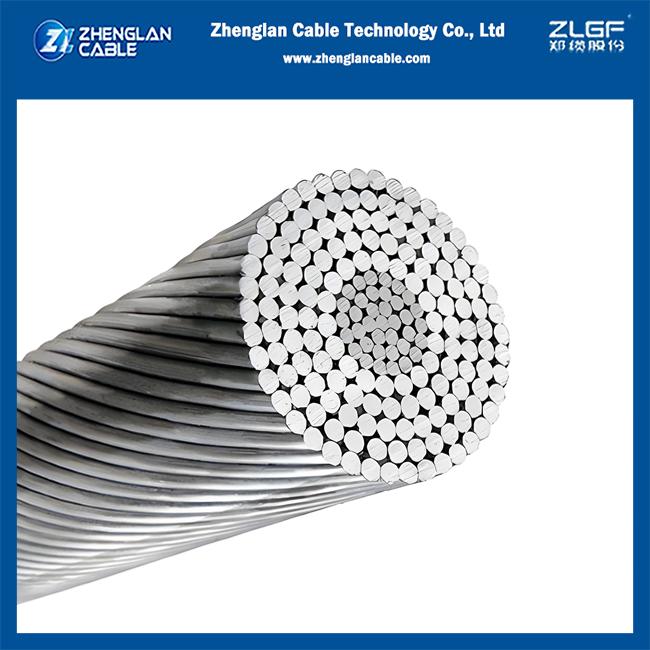

Aluminum Conductor Steel Reinforced Hawk 477MCM 26/3.44mm 7/2.68mm ASTM B232/232M
Price:
depends on cable size
MOQ:
2000 meters
Delivery Time:
15-30 days
Brand:
Zhenglan Cable
Product Description
Aluminum conductor steel reinforced Hawk477MCM(26/3.44mm, 7/2.68mm) ASTM B232/232M
AAAC is constructed from a high-strength aluminum alloy, typically a 6201-T81 alloy, which is a heat-treated, magnesium-silicide alloy. They are used in overhead transmission and distribution lines, especially where high strength and corrosion resistance are needed.
Specifications:
B-230: Aluminum wire, 1350-H19 for Electrical Purposes
B-231: Aluminum conductors, Concentric-Lay-Stranded
B-232: Aluminum conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
B-498: Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR)
B-500: Metallic Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)
Aluminum conductor steel reinforced Hawk 477MCM(26/3.44mm, 7/2.68mm) ASTM B232/232M technical data
| Code Name |
Area | Equivalent copper area |
Stranding and wire diameter |
Approx. overall diameter |
Rated Strength |
Maximum DC resistance at 20 oC |
|||||||||
| Weight | |||||||||||||||
| Aluminium | Steel | Total | |||||||||||||
| AWG or MCM |
mm2 | mm2 | mm2 | AWG or MCM |
mm2 | Aluminium | Steel | Aluminium | Steel | Total | kN | Ω / km | |||
| mm | mm | mm | kg/km | kg/km | kg/km | ||||||||||
| Hawk | 477 | 241.6 | 39.19 | 280.8 | 300 | 147.4 | 26/3.44 | 7/2.67 | 21.77 | 667 | 308 | 975 | 84.2 | 0.1195 | |
Reference images
The reason you choose us:
- We are profeesional cable supplier for more than 10 years.
- Not only provide you good-quality products,but also service you well.
- We have high work efficency.
If you are interested, please do not hesitate to contact us.Any inquiry will be welcomed.
