Bare AAAC Conductor Aluminum Alloy Conductor AAAC 35mm2 7/2.52mm EN50182
APPLICATION:
AAAC - All Aluminum Alloy Conductor is used for primary and secondary overhead transmission and distribution services. This has been designed utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio and better sag characteristic.The conductor has a higher resistance to corrosion than ACSR
CONDUCTORS:
Stranded 6201-T81 high strength aluminum conductors, conforming to ASTM specifications B399 are concentriclay-stranded, similar in construction and appearance to 1350 aluminum alloy grade aluminum conductors, and has a greater resistance to abrasion than conductors of 1350 aluminum alloy.
AAAC Technical data sheet
| Sección Nominal |
Formación Hilos x Diám. |
Diámetro Exterior |
Carga de Rotura |
Resistencia Máxima | Capacidad de Corriente(*) |
Peso Total |
|
| 20°C c.c | 75ºC c.a | ||||||
| mm2 | Nº x mm | mm | KN | Ohm/Km | Amp | Kg/Km | |
| 25 35 |
7 x 2,13 7 x 2,52 7 x 3,02 7 x 3,57 19 x 2,17 19 x 2,52 19 x 2,84 19 x 3,17 19 x 3,52 19 x 4,01 |
6,4 7,6 9,1 10,7 10,9 12,6 14,2 15,8 17,6 20,0 |
7,90 11,06 15,89 21,19 21,57 29,08 36,9 46,3 57,1 71,8 |
1,370 0,979 0,681 0,488 0,486 0,361 0,284 0,226 0,184 0,142 |
1,640 1,173 0,816 0,585 0,582 0,432 0,340 0,270 0,220 0,170 |
134 166 208 257 259 312 363 417 477 563 |
68 95 |
| 50 70 70 95 120 150 185 240 |
136 190 192 259 329 412 509 660 |
||||||

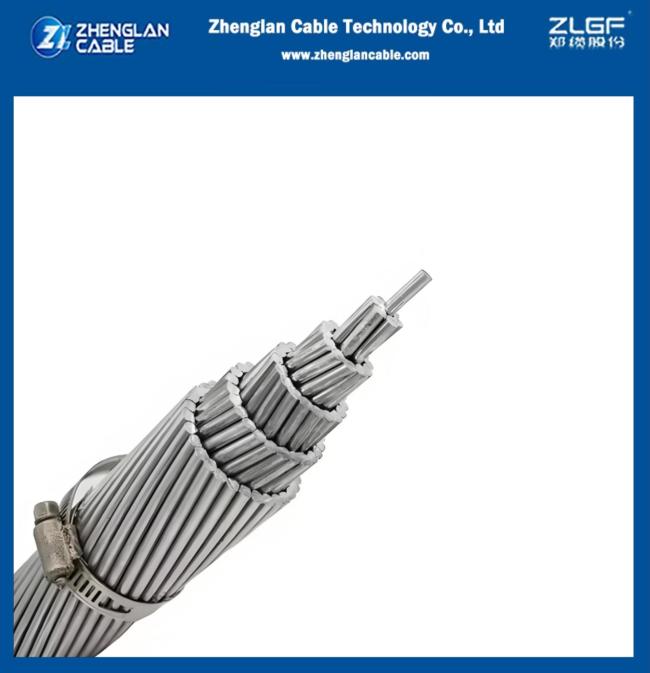

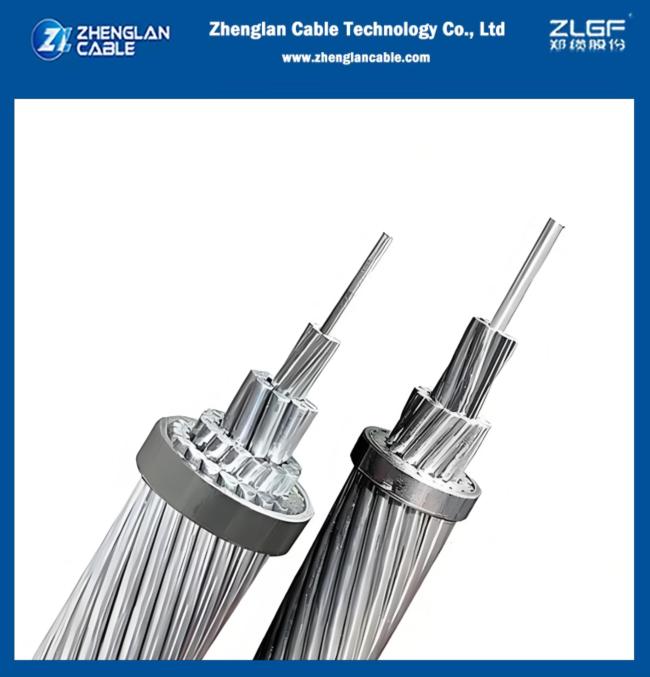

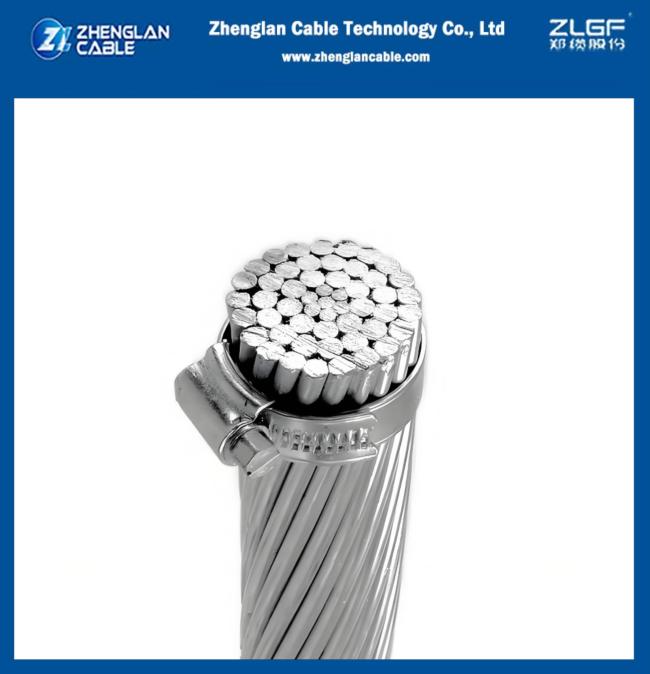

Images
